BEGA 84 667 Installation And Technical Information

Installation and Technical Information
BEGA
Installation and Technical Information
Tools Required:
• Adjustable wrench
• 1/2" nut driver
• 4mm hex key
• 5mm hex key
Overview:
LED Watts: 24.8W
System Watts: 27.5W
Controllability: 0-10V, ELV, and TRIAC dimmable
Weight: 21.4 lbs.
Protection Class: IP65
Notice to Installer:
1. See page 2 for specific product safety warnings.
2. Fixture may be damaged if connected to conduit systems that contain water. Article 300-
5G of the National Electric Code requires that "Conduits or raceways through which mois-
ture may contact energized live parts shall be sealed or plugged at either or both ends."
3. 79 817 Anchorage Kit (included) must be installed in concrete pad/foundation.
4. It is recommended that when installing in planting areas the base of the bollard be slightly
elevated to avoid prolonged submerging during heavy rains.
5. Wet location listing does not imply suitability for exposure to standing water for long
periods of time.
6. LEDs are high-quality electronic components! Please avoid touching the light output open-
ing of the LED directly during installation.
Installation: 79 817 Anchorage Kit (included)
1. Provide means to bring supply wiring to the bollard in accordance with local code. See
Figure 1 for size the of the conduit entry opening.
2. Assemble the anchorage kit. Unscrew the (3) base plates bolts from the female couplers
and remove each bolt and washer. Align each anchor bolt with the hole in the template.
Attach each anchor bolt to the template by replacing the washer and base plate bolt and
tightening. Do not remove nuts and washers from bottom of anchor bolt; this provides the
pullout force. See Figure 2.
3. Install anchorage kit using either method:
• Attach template to forming or cross bracing using the (2) nail holes provided in the
template. Level template properly. Pour concrete.
• Insert anchorage assembly into poured concrete. Concrete must be vibrated to ensure
the template. Level template properly. Pour concrete.
proper anchorage setting. Level template properly.
NOTE: Allow adequate time for concrete to cure properly.
ensure proper anchorage setting. Level template properly.
4. Remove (3) hex base plate bolts and washers once anchorage is set.
5. Remove template. Smooth concrete pad as required.
Installation: 84 667 Luminaire
1. Loosen the 5mm set screw and turn the base plate to remove the base from the bollard.
2. Align base plate holes with anchorage holes.
3. Bolt the base plate to the anchorage kit using the (3) hex base plate bolts and washers.
4. Make supply wiring connections to wire leads from ballast inside the fixture
• MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE;
• NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE;
• GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
• Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER DIM CONTROL WIRE
5. Place the bollard over the base plate so that the (3) notches in the base plate align with
the top. Lock fixture into place by turning bollard 1/4" turn.
6. Secure the bollard by tightening the 5mm set screw at the base.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2024
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
Anchorage Kit
Bollard ∙ Unshielded with Safety Guard
Dimensions
A: 6-1/4"
B: 43-1/4"

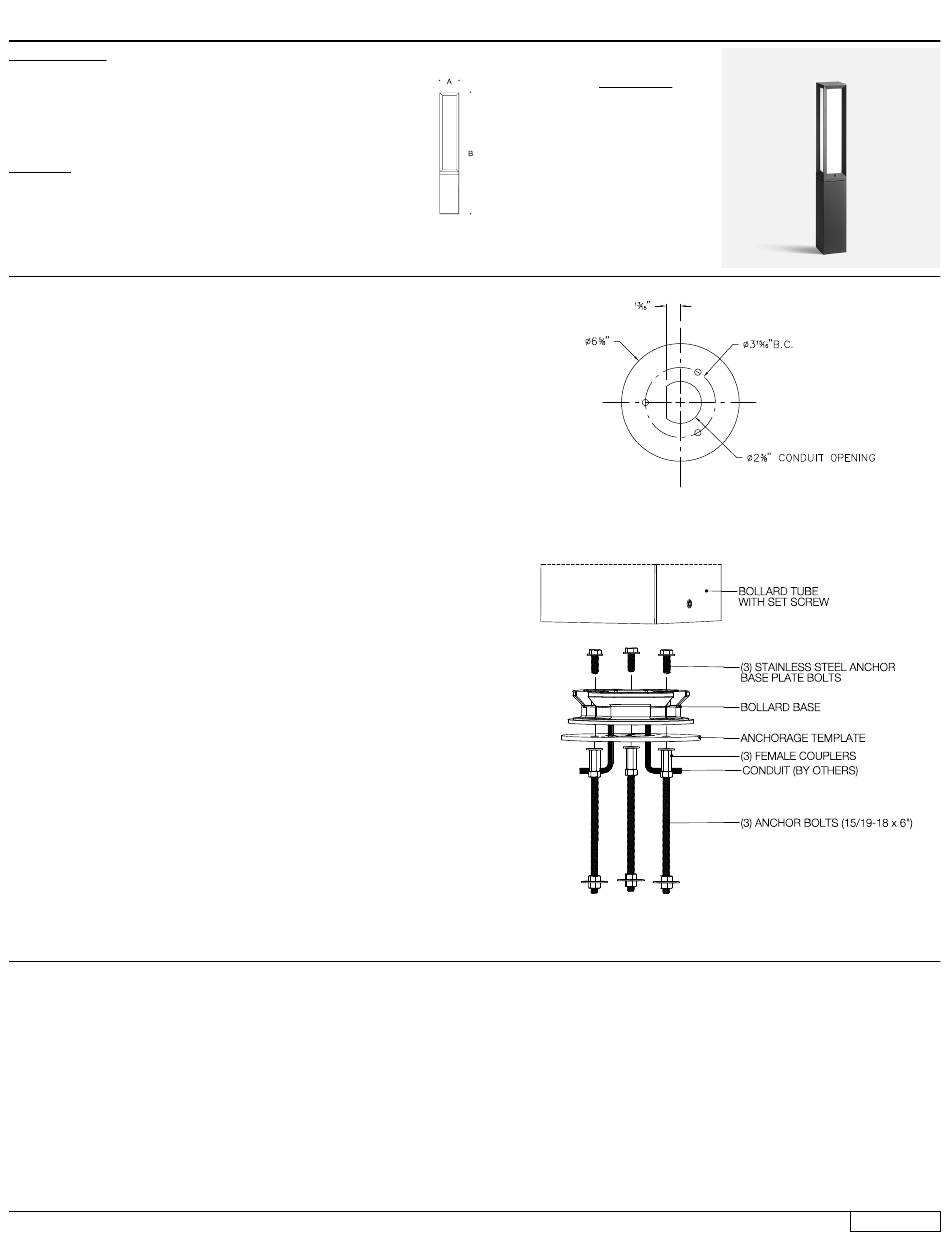

Figure 1:
Figure 1:
Bolt Circle
A
B
Figure 2:
Figure 2:
Maintenance: Maintenance:
Clean regularly with solvent-free cleaner Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high removing dirt and debris. Do not use high
pressure cleaners.
pressure cleaners.
Replacement Parts
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
Consult factory for all other replacement
components.
B79817 & B79818
84 667
79817
• Bolt Circle: 3-15/16"
• A: 6-5/8"
• B: 2-3/8"
79818
• Bolt Circle: 5-3/16"
• A: 7-1/8"
• B: 3"
Updated: 04/02/24
Updated: 04/02/24 84 667 1 of 2
