●Thank you so much for purchasing this product.
●This product is for family use only.
● Please read this instruction manual carefully
before using the product to ensure the correct and
safe use of this product.
●Pay special attention to Safety Precautions. (Page
2-4).
● Please safekeeping the Warranty Certificate and
the User's manual .

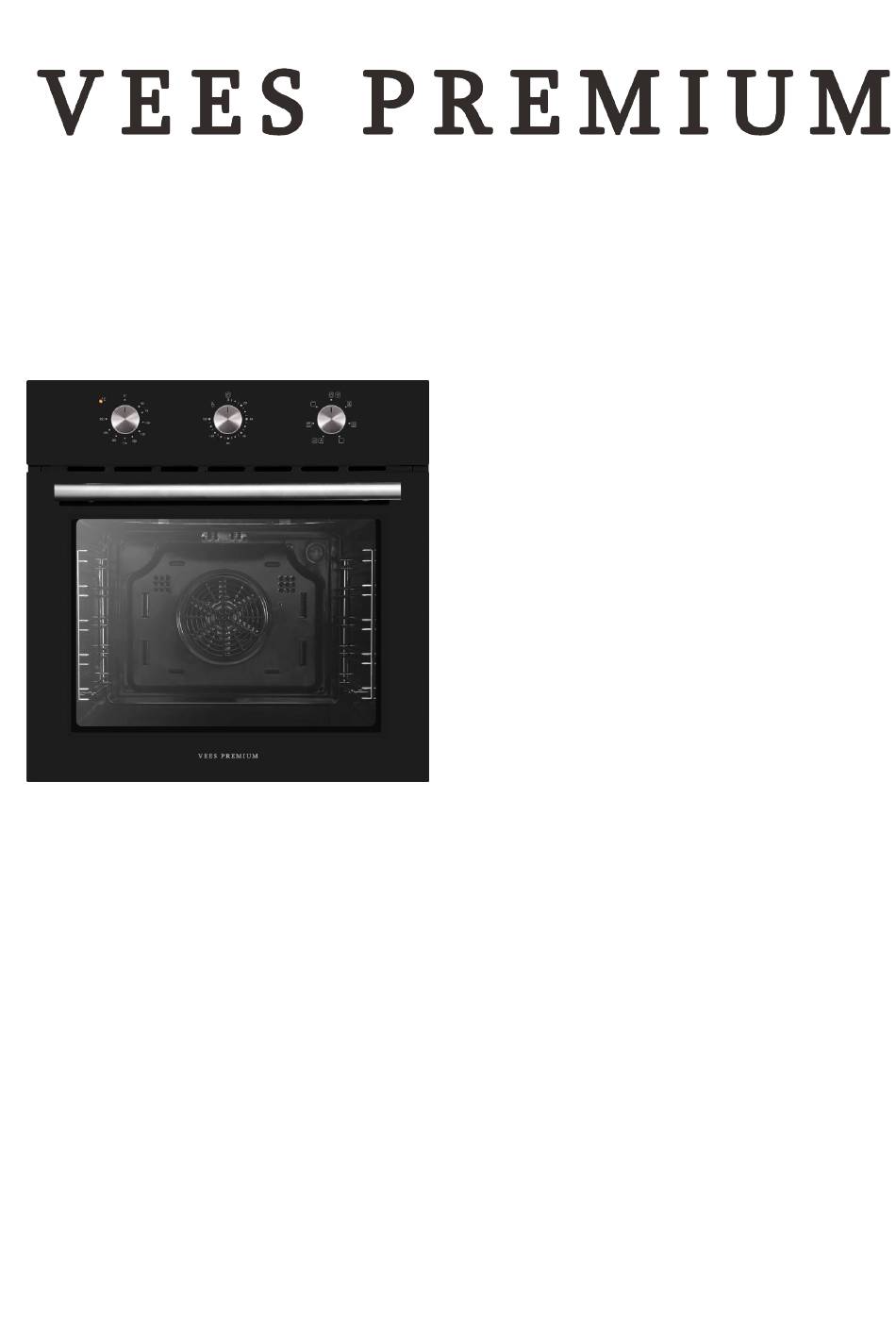

Built-in oven
Instructions for use installation
Family use built-in oven
Model: VBO-DIX6M-70SS
Contents
Safety precautions.............................................. 2 ~4
Appliance parts and operation................................7
Usage method.......................................................11
Cleaning and maintenance....................................12
Installation Instructions...................................15~18
The right of final interpretation of the manual
belongs to our company.
use precautions.............................................4~5
Initial use precautions.......................................6
●Oven component................................................7
●Accessories.........................................................7
●Control panel......................................................8
●Function settings................................................9
●Cooking knacks.................................................10
●Cooking suggestion and instructions................11
●Energy saving tips.............................................11
●Oven interior /oven door..................................12
●Remove the oven door......................................12
●Remove the slide-in racks.................................13
●Oven light replacement....................................13
●Sensor probe replacement...............................14
●Specifications....................................................17
1
Advertisement
Table of Contents
Related Manuals for Vees PREMIUM VBO-DIX6M-70SS
Summary of Contents for Vees PREMIUM VBO-DIX6M-70SS
-
Page 1: Table Of Contents
Built-in oven Instructions for use installation Family use built-in oven Model: VBO-DIX6M-70SS Contents Safety precautions…………........2 ~4 use precautions..........4~5 Initial use precautions........6 Appliance parts and operation........7 ●Oven component..........7 ●Accessories............7 ●Control panel............8 ●Function settings..........9 ●Cooking knacks..........10 Usage method............11 ●Cooking suggestion and instructions....11 ●Energy saving tips..........11 Cleaning and maintenance........12 ●Oven interior /oven door........12... -
Page 2: Safety Precautions
Safety Precautions Be sure to observe To prevent the bodily injury and property damage, please be sure to observe the following safety precautions. ■The following icons show the extent of damage caused by incorrect operations. Warning: Indicates a potential hazard that, if unavoidable, may result in death or serious injury. Note: Indicates a potential hazard that, if unavoidable, may result in death or moderate injury. - Page 3 Warning ●Do not alter, disassemble or repair the product by yourself. (To avoid causing fire, electric shock or injury.) For repairs, please contact (Company name) Certification Maintenance Store for consultation. ●Do not clean the oven door glass with a rough scrubber or sharp scraper. (In order to avoid scratches on the surface of glass, resulting in glass crushing.) ●Be sure to use AC power sockets with specifications of AC220V-240V/16A separately.
-
Page 4: Use Precautions
Safety Precautions Be sure to observe Note ●Do not put inflammable materials in the oven. (So as not to cause a fire when accidentally turning on the oven) ●Do not sit or fall back on open products. (To avoid damaging the telescopic chute.) ●Do not use irritating, corrosive cleaners or sharp metal scrapers to clean glass doors of oven. - Page 5 Use Precautions Slide-in racks Placement Warning In order to ensure the safe use of the grate or tray, it is necessary to insert in the right direction and place the slide-in racks correctly. In addition, you can also refer to the level number displayed in the front of the oven when you open it. (There are five levels altogether.) This ensures that food does not slip out of the back during careful removal from the grate or tray.
-
Page 6: Initial Use Precautions
Initial Use Precautions Note: When using oven for the first time, there may be a small amount of smoking and odor, which is a normal phenomenon. Please adjust the temperature of the empty oven to 250 ℃ , and bake it with stereoscopic function for 30 minutes before using it. -
Page 7: Appliance Parts And Operation
Appliance parts and operation Oven Component 需 Accessories (Optional Purchase) ·Before first use, please clean all accessories and use soft cloth and neutral detergent to clean the oven. · Only original accessories can be used ◆ Grate Used for baking and barbecuing ◆... -
Page 8: Control Panel
Appliance parts and operation Control Panel 1. Indicator light (indicates the heating process, i.e. the operation of one or more heating elements) 2. Temperature setting knob • Rotate the knob to select the desired temperature. 3. Timer setting knob • Rotate the knob to select the desired cooking time. When the set time is reached, the oven stops working. The bell rings and the lamp turns off automatically. -
Page 9: Function Settings
Appliance parts and operation Function Settings Turn the knob to the relevant icon and select the cooking functions required. Icons Function Description Lamp Users can observe the cooking progress without opening the door, but they need to start the setting function and then the lamp will turn on. -
Page 10: Cooking Knacks
Cooking Knack Weight Function Temperature First Second Accessory Food Level (kg) Setting in℃ Face(seconds) Face(seconds) Biscuit 10-15 baking tray Sandwich 15-20 grate Swiss Roll 10-18 baking tray Small cake 0.3-0.4 20-25 baking tray Sponge 30-35 grate cake Pizza 0.35 baking tray Apple pie 50-60 grate... -
Page 11: Usage Method
Usage Method Special function setting When the knob points to the icon , select the temperature and time to execute this function When the knob points to the icon , select the time, but not the temperature to execute this function Cooking Suggestions and Instructions ■... -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance Oven Interior/Oven Door ■ Oven door Glass door should always be clean, to remove stubborn stains with kitchen absorbent paper, wet sponges and common detergents. •Do not use a steam cleaner to clean the oven. •Do not use detergents or corrosive detergents to clean glass door. •Do not use rough or friction materials or sharp metal scrapers to clean the oven glass door, as they may scratch the surface. -
Page 13: Remove The Slide-In Racks
Remove the Slide-in racks Remove the hanger to facilitate cleaning the side wall of the oven. Note: Operate this process must by hand slightly, or it will damage the enamel. • Remove all accessories such as grate and baking tray. •... -
Page 14: Specifications
Specifications The standby power is about 0.5W when the power supply of the product is "off". Model VBO-DIX6M-70SS Voltage 220-240V Rated power 2200W Upper Outer Ring Heat Pipe 1000W Upper inner heating pipe 1200W Lower heating tube 1000W Rated frequency 50/60Hz Product size(width * depth * height) 595(width）X565(depth）X595(height) -
Page 15: Installation Instructions
Installation Instructions For installation personnel Important note ● The kitchen cover must be suitable to ensure that the oven works properly. ● The panel of kitchen equipment adjacent to the oven must be made of heat-resistant materials. Kitchen equipment made of plywood shall ensure that the glue can withstand a temperature of at least 120 degrees Celsius. When plastic or glue cannot withstand this temperature, the equipment will melt and deform. -
Page 16: Electrical Connectors
Installation Instructions For installation personnel Electrical Connectors Warning The wiring of oven must be equipped with all-pole disconnection device according to the wiring rules. After installing the appliance, it is necessary to have other methods to disconnect the power supply. The power supply is disconnected by a contactable plug or by a fixed wiring switch that meets the wiring requirements. - Page 17 Installation Instructions For installation personnel Reasonable Fixed Oven Note Two persons are required to assist in the installation of the oven. The oven base must be installed as shown below. 1.Pay attention to the general dimensions required for installation. Unit:mm 2.Convex In order to have the best integration of the kitchen, please install the equipment into the standard 600 mm wide cabinet, so it can achieve a flush effect with the front of the cabinet.
- Page 18 Installation Instructions For installation personnel 1. Before installing the equipment, please ensure that the cabinet meets the following internal empty dimensions. To ensure air circulation, the oven must be installed in accordance with the size and distance shown in the figure below. Convex ■Note：...
