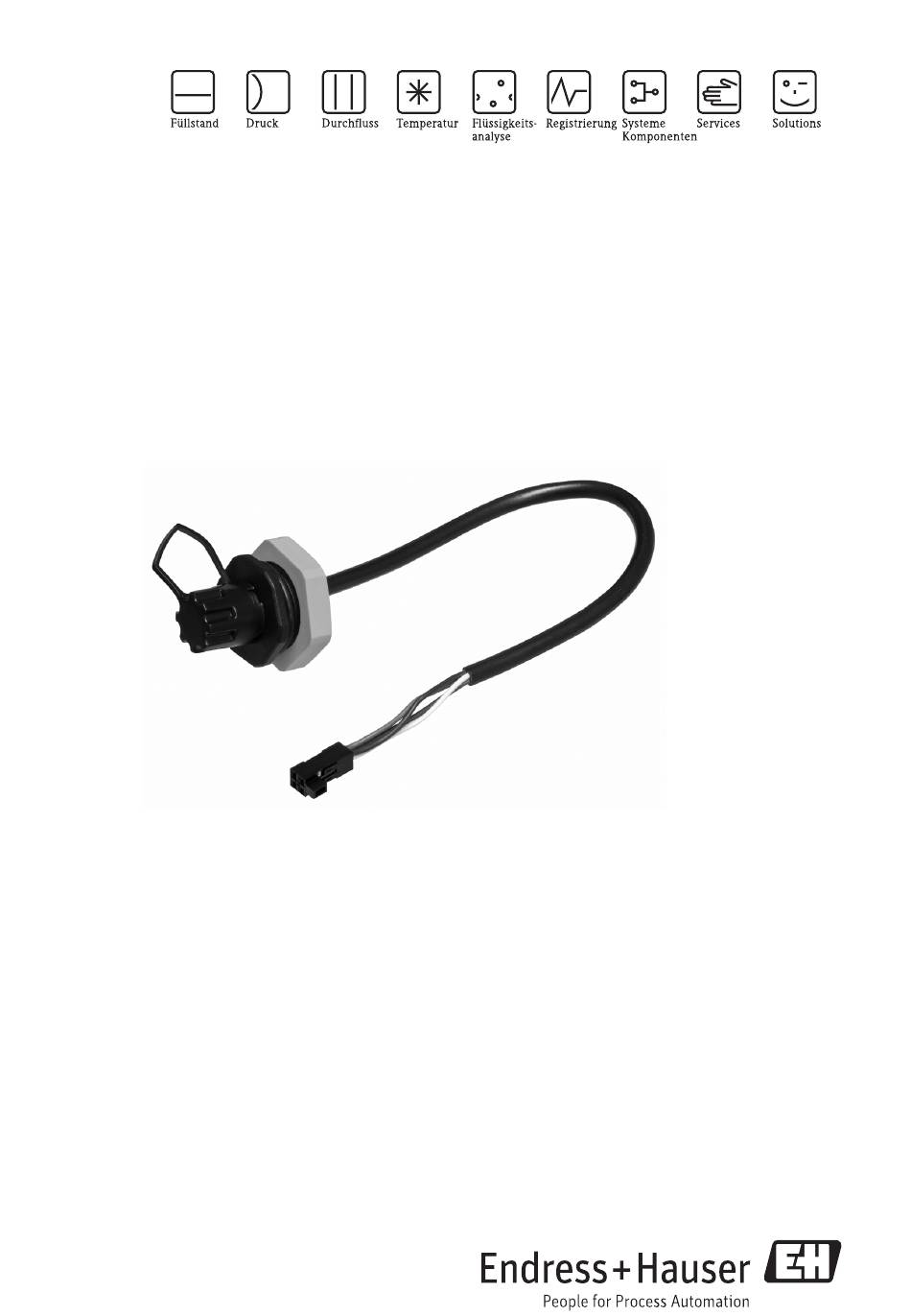

Einbauanleitung / Installation Instructions
Kit CSF48
Service-Schnittstelle (CDI-Flanschstecker,
Gegenmutter)→ ä 3
Service interface (CDI-flange connector,
counter nut)→ ä 9
EA002C/07/A2/01.11
71138813

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kit CSF48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Endress+Hauser Kit CSF48

  • Page 1 Einbauanleitung / Installation Instructions Kit CSF48 Service-Schnittstelle (CDI-Flanschstecker, Gegenmutter)→ ä 3 Service interface (CDI-flange connector, counter nut)→ ä 9 EA002C/07/A2/01.11 71138813...
  • Page 3 Kit CSF48 Identifizierung Identifizierung Lieferumfang Im Lieferumfang sind enthalten: • 1 CDI-Flanschstecker • 1 Gegenmutter • 1 Einbauanleitung EA002C/07/A2 Werkzeugliste a0015900 a0015916 Zusätzliche Dokumentation Technische Information • TI405C • CP010S Endress+Hauser...
  • Page 4: Montage

    Montage Kit CSF48 Montage Warnung! Stellen Sie vor Beginn der Montage-Arbeiten sicher, dass an dem Gerät keine Spannung anliegt. a0015877 a0015878 1. Frontansicht des Controller-Gehäuses. 2. Öffnen Sie mit einem Kreuzschlitz-Schrau- bendreher die sechs Deckelschrauben am Dis- playdeckel. a0015880 a0015881 3.
  • Page 5 Kit CSF48 Montage a0015882 5. Legen Sie den Display-Deckel auf einen stabilen Untergrund. Danach bohren Sie ein Loch mit einem Durchmesser von 20 mm in die Tür. a0015883 a0015884 6. Befestigen Sie die Tür wieder am Scharnier. 7. Führen Sie die Service-Schnittstelle von vorne durch das gebohrte Loch und schieben Sie von hinten die Gegenmutter über das Kabel.
  • Page 6 Montage Kit CSF48 a0015885 a0015893 8. Stecken Sie den Stecker der Service-Schnitt- 9. Anschließend stecken Sie den Display-Stecker stelle in die Buchse "Service" am Modul. sowohl in die Buchse an der Tür als auch in das Modul. a0015894 10. Ziehen Sie die sechs Schrauben am Displayde- ckel wieder fest.
  • Page 7 Kit CSF48 Kommunikation Kommunikation Service-Schnittstelle Über die Service-Schnittstelle können Sie das Gerät mit einem Computer verbinden und mittels "FieldCare" konfigurieren. Außerdem lassen sich Konfigurationen speichern, übertragen und dokumentieren. 3.1.1 Anschluss • Verbinden Sie die Service-Schnittstelle am Controller-Gehäuse mit der Commubox (FXA291).
  • Page 8 Kommunikation Kit CSF48 3.1.2 Aufbau der Datenverbindung • Starten Sie FieldCare. • Bauen Sie die Verbindung zur Commubox auf. • Klicken Sie hierfür bei "Host PC" auf "Gerät hinzufügen" und wählen Sie "CDI Communication FXA291" aus. • Klicken Sie auf "Konfiguration" um für die FXA291 die serielle Schnittstelle auszuwählen und die Baudrate (115200) einzustellen.
  • Page 9: Scope Of Delivery

    Kit CSF48 Identification Identification Scope of delivery The scope of delivery comprises: • 1 CDI-flange connector • 1 Counter nut • 1 Instruction guide EA002C/07/A2 Tool list a0015900 a0015916 Documentation Technical Information • TI405C • CP010S Endress+Hauser...
  • Page 10: Installation

    Installation Kit CSF48 Installation Warning! Before starting the installation work, please make sure that no voltage is applied. a0015877 a0015878 1. Front view of the controller box. 2. Open the displaycover by unscrewing the six coverscrews with a Phillips screwdriver.
  • Page 11 Kit CSF48 Installation a0015882 5. Put the displaycover on a solid ground. Drill a hole into the door with a diameter of 20 mm. a0015883 a0015884 6. Reinstall the door on the hinge. 7. Pull the service interface through the drilled hole from the front and push the counter nut over the cable.
  • Page 12 Installation Kit CSF48 a0015885 a0015893 8. Plug the connector of the service-interface 9. Then push the displayplug as well into the into the socket "Service" on the module. socket on the door as in the module. a0015894 10. Tighten the six screws on the displaycover.
  • Page 13: Service Interface

    Kit CSF48 Communication Communication Service interface You can connect the device to a computer via the service interface and configure it using "FieldCare". Furthermore, configurations can also be saved, transferred and documented. 6.1.1 Connection • Connect the service interface on the control box to the Commubox (FXA291).
  • Page 14 Communication Kit CSF48 6.1.2 Creating the data connection • Start FieldCare. • Establish a connection to the Commubox. • In "Host PC" click on "Add device" and select "CDI Communication FXA291". • Click on "Configuration" to choose the serial interface and to set the baud rate (115200) for FXA291.
  • Page 15 Kit CSF48 Communication Endress+Hauser...
  • Page 16 EA002C/07/A2/01.11 FM+SGML 6.0...
