Summary of Contents for TRENDnet TK-214I

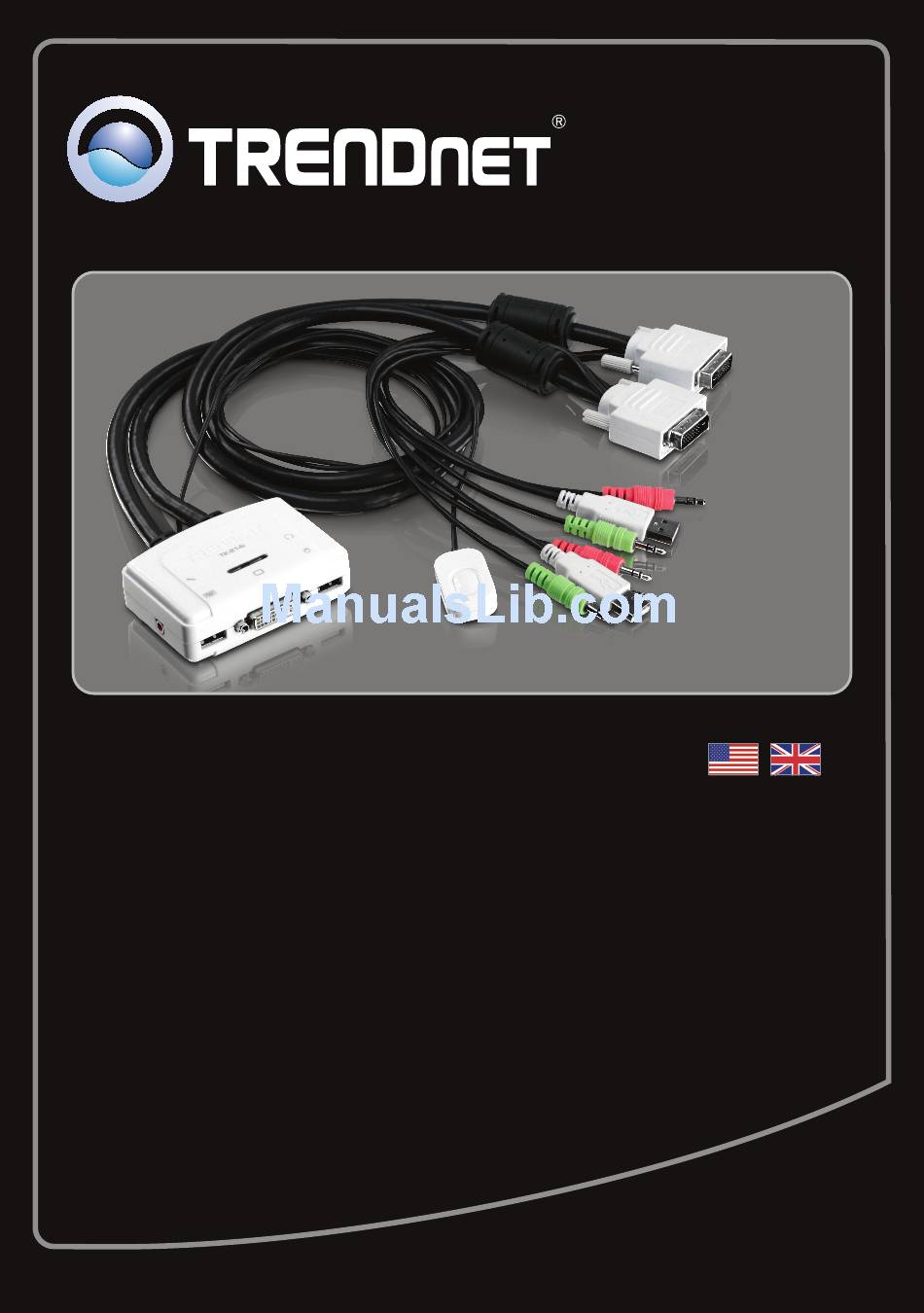

- Page 1 Quick Installation Guide TK-214i 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. How to Install 3. Operation 4. Using the KVM Utility Technical Specifications Troubleshooting Version 11.02.2010... -
Page 3: English
1. Before You Start Package Contents TK-214i Ÿ Multi-Language Quick Installation Guide Ÿ CD-ROM (Utility) Ÿ System Requirements USB Keyboard Ÿ USB Mouse Ÿ DVI Compatible Monitor Ÿ Computers with DVI-I port Ÿ Computers with USB Ports Ÿ Computers with 3.5mm audio and microphone connections (optional) Ÿ... -
Page 4: How To Install
2. How to Installation 1. Properly turn OFF your computers and monitors. 2. Connect the shared keyboard, monitor, mouse, speakers (optional) and microphone (optional) to the KVM Switch's console ports. 3. Use the integrated KVM cables and Audio/Microphone cable (Optional) to connect your Computer to the KVM Switch. -
Page 5: Operation
3. Operation Note: 1.The TK-214i KVM Switch does not require any drivers or software (optional). 2.For Computer switching, you can use the push button switch, a Hot-Key command sequence via keyboard, or the KVM utility (Windows / Mac OS X (10-.4~10.6) only). For more information on the KVM utility, please see section 4, Using the KVM Utility. -
Page 6: Using The Kvm Utility
4. Using the KVM Utility For Windows Users 1. Insert the Utility CD-ROM into your CD-ROM Drive. 2. Click Run AUTORUN.EXE (Windows 7/Vista Only) 3. Click Install Utility. 4. Click Next. Then follow the Setup Wizard instructions. 5. Click Finish. - Page 7 6. Double click on the USB KVM Switcher icon. 7. If you would like to modify the hot key, type in a character. You can enter any number, letter or symbol. Control keys such as Alt, Ctrl, Shift, CAPS LOCK, Tab, Esc, and Num Lock and function keys cannot be used.
- Page 8 For Mac OS X (10.4~10.6) Users 1. Insert the Utility CD-ROM into your CD-ROM Drive. 2. Double-click on the TK-214i CD-ROM icon on your desktop. 3. Double-click on the Macintosh folder. 4. Double-click on on TrendnetUSBKVM Switcher.pkg. 5. Click Continue. 6.
- Page 9 8. When the Authenticate screen appears, enter the Name and Password for your computer and then click OK. 9. Click Close. 10. Double click on the Macintosh HD icon. 11. Double click on the Applications icon. 12. Click on Trendnet USB-KVM Switcher.
- Page 10 13. Double click on the USB-KVM Switcher icon in the Dock. If your computer is connect to computer 1 port, you should see an icon with the number 1. If your computer is connected to computer 2, you should see an icon with the number 2.
-
Page 11: Register Your Product
Stop Auto-Scan to stop Auto-Scan. Your installation is now complete For detailed information regarding the TK-214i, configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register... -
Page 12: Technical Specifications
Technical Specifictions Hardware Controls 2 Computers Cable 2 Sets of USB, DVI, audio, and mic. combination cables (length 80 cm, 2.6 ft.) 2 x USB Type A ports (male) Computer Connectors 2 x DVI-I (male) 2 x 3.5mm audio plug 2 x 3.5mm mic. -
Page 13: Troubleshooting
Mac User: Push Button switch or USB KVM Switcher Software [Mac OS X (10.4~10.6)] Linux User: Push Button switch or Universal Hot-Key Commands If you still encounter problems or have any questions regarding the TK-214i, please contact TRENDnet's Technical Support Department. - Page 16 Copyright ©2010. All Rights Reserved. TRENDnet.
