John Lewis Louvre Installation Instructions

Thank you for purchasing this Louvre light fitting. Please read the instructions carefully before use to ensure safe
and satisfactory operation of this product.
Please keep these instructions for future reference
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work. It is recommended that this fitting is
installed by a qualified electrician.
Install in accordance with the IEE Wiring regulations and the Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other
persons cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult a
qualified electrician.
This light fitting should be connected to a 5 amp fused circuit.
If replacing an existing fitting, make a note of the connections.
Always use the correct type and wattage bulb. Never exceed the wattage stated.
When changing a bulb, always switch off at the mains and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully.
This product is suitable for outdoor use only, and is IP44 rated.
Fixing Instructions
Make sure you have the following items which are required to install this light fitting:
Small electrical screwdriver, cross head screwdriver & insulation tape.
Step 1
Remove the finials from the front of the product and lift the light fitting body away from the wall back. Keep the
rubber washers and finials in a safe place for use later.
Step 2
Using the wall back as a template, mark the position of the mounting holes. Make sure the drain hole is at the bottom.
Drill holes and fit supplied wall plugs (suitable for masonry only - for other surfaces use appropriate fixings). Feed the
incoming mains supply cable through the grommet entry hole. Fix the wall back to the wall using the supplied screws.
Step 3

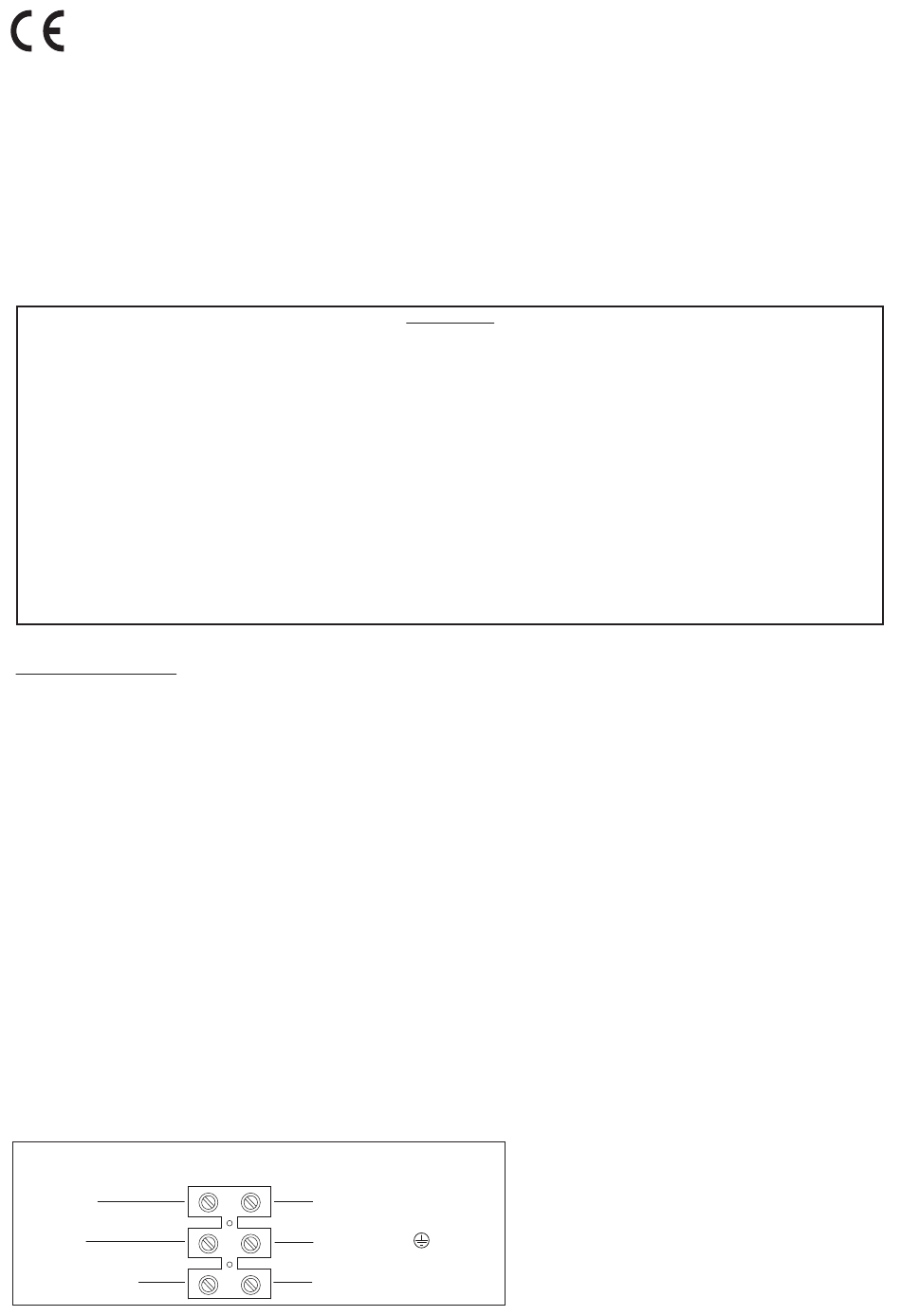

Connect to the connection block inside the product in the following way:
HOUSEHOLD SUPPLY
NEUTRAL
EARTH
SWITCHED LIVE
Louvre Outdoor Wall Light
Installation Instructions
LIGHT FITTING
BLUE (N)
GREEN/YELLOW
METALLIC EARTH CONNECTION
BROWN (L)
Warnings!
Ensure wiring connections are tight. Ensure earth
wire is correctly fitted to the earth connection.
Make sure the incoming mains cable is kept away
from the heat of the lamp and that the grommet
or
is still in place to maintain the IP rating.
70270205
