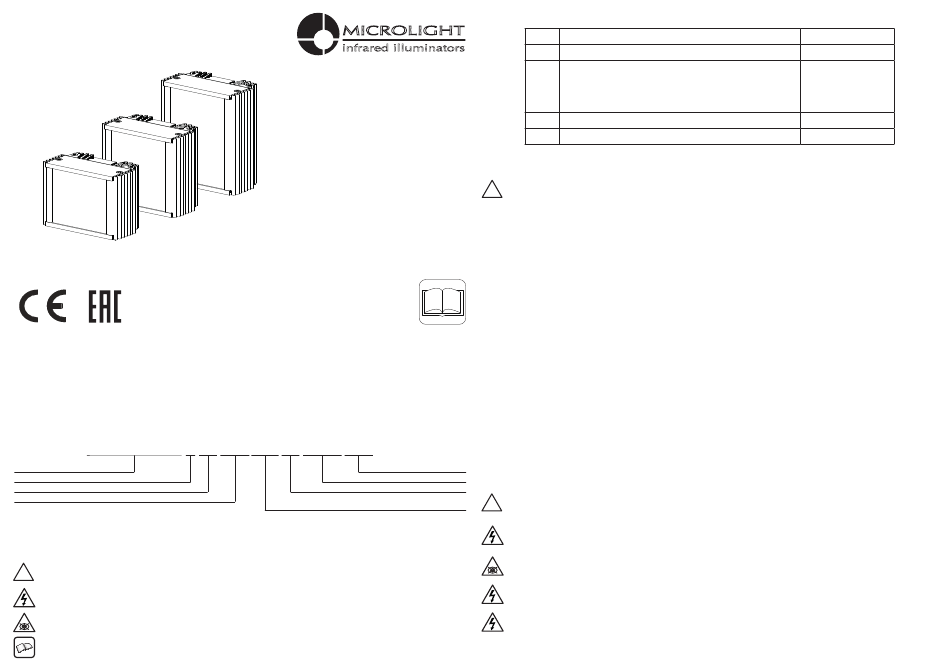

Microlight IR-30-S Operating Manual

Produced by Microlight 23, Hausberg str,
Bad Nauheim, Germany, 61231
Tel./fax: +49 (0) 6032-8698410
www.microlightsecurity.com
GENERAL INFORMATION
Thank you for purchasing of products Microlight!
Infrared LED illuminators IR-30 (hereinafter - illuminators) intended for use in
video surveillance systems for lighting objects in low light conditions, including total
darkness.
Deciphering the model name illuminator:
HELIOS IR-294-X/XX-XXX XXX FS ST3M XXX
Model of illuminator
Modification of the illuminator (S, M, L, XL, XXL)
The angle of illumination, °
Color temperature, Ê
Series of the illuminator
Icons used in this manual:
!
Attention! Important Information!
risk of electric shock
damage to the eyes!
additional information
MICROLIGHT
infrared illuminators
Infrared illuminators
Operating manual
v4.1 april 2015
before you get started read the instruction carefully
and make sure that you understand everything
Case color of illuminator
The presence and type of bracket
The presence of the light sensor
Power supply of the illuminator (220 V AC, PoE,
without - 12...24 V AC/DC)
1 Infrared illuminator
2 Mount bracket
3
Set of fasteners consisting of:
Screw M3×10
Washer 3
Nut M3
4 Operation manual

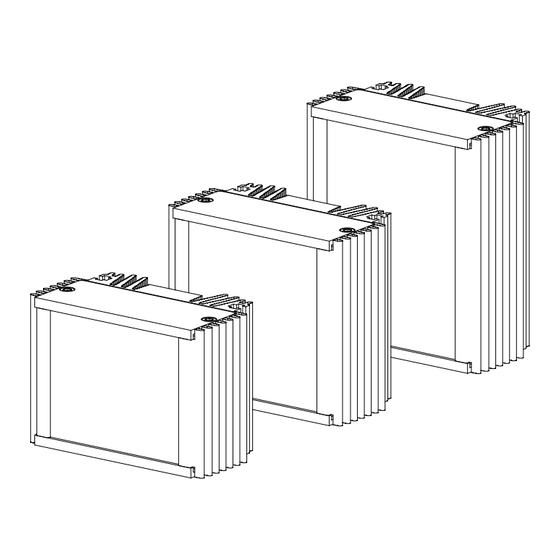

IR-30-S 5 Package
IR-30-M
IR-30-L
!
Make sure your video camera is suitable for infrared illuminator.
To work with an infrared illuminator suitable black-and-white video cameras and
color video cameras with "day/night» feature, in which the corrective filter for cutting
off infrared radiation, automatically moves away from the matrix of the camera when
working in night mode.
To avoid loss of sharpness (focus) of the image in night mode when using infrared
light, the camera must be equipped with a lens with IR correction (IR marking on the
body or in the designation of the lens).
In operation the case of the illuminator may be heated. This is normal and does not
affect the lifetime of the illuminator and which is not by any malfunction or defect.
Infrared LED illuminator IR-30 meets the requirements of the Eurasian Customs
Union TR CU 020/2011 «Electromagnetic compatibility of technical means» and TR
CU 004/2011 «On safety of low voltage equipment», as well as the requirements
EMC Directive 2004/108/ EC
2:2006+A1:2009+A2:2009, EN61000-3-3:2009, EN61000-4-2:2009, EN61000-4-
3:2008, EN61000-4-4:2012, EN61000-4-5:2007, EN61000-4-6:2009, EN61000-
4-11:2005.
If the LED illuminator is out of order, it cannot be repaired and try to recover!
!
Unauthorized disassembly of the illuminator and technical intervention leads to a
denial of warranty service.
Do not disassemble to avoid accidents! LED illuminators are strictly prohibited
to disassemble!
Invisible radiation of infrared LEDs! To prevent eye injuries, do not look directly
at the switched-on illuminator.
Do not operate the LED illuminator with input voltage 185 ... 265 V without
protective earth.
Installation and connection of the illuminator should produce an expert in the
field of electrical engineering works.
Protect the illuminator from impacts and vibrations.
PACKAGE CONTENTS
1
1
2
2
2
1
1
BEFORE YOU START
COMPLIANCE WITH STANDARDS OF SAFETY AND
ELECTROMAGNETIC COMPATIBILITY
EN55015:2009, EN61547:2009,
SAFETY ENGINEERING
EN61000-3-
