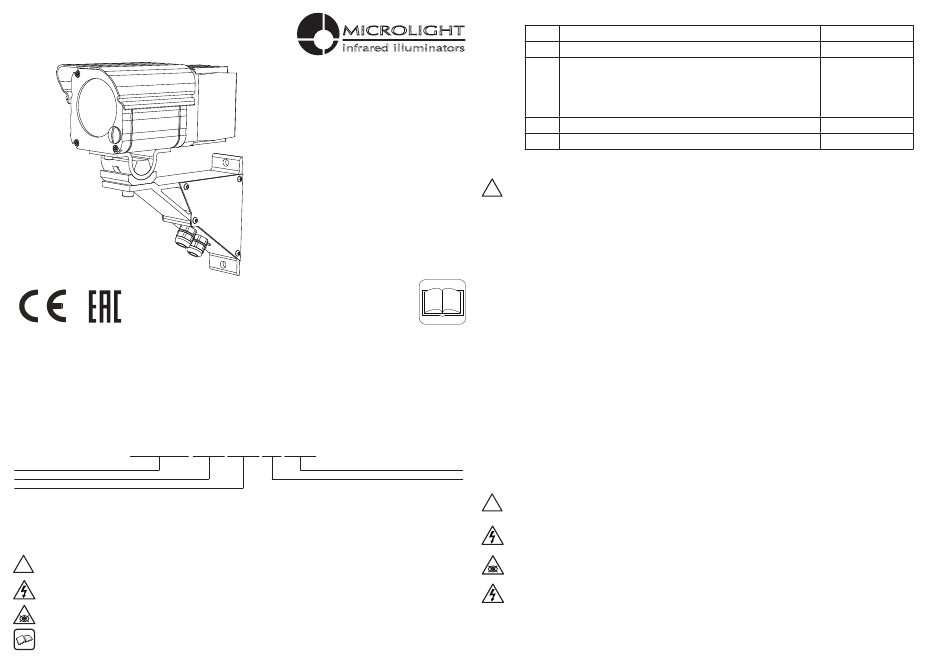

Microlight IR-1 FHD ZOOM Operation Manual

Produced by Microlight 23, Hausberg str,
Bad Nauheim, Germany, 61231
Tel./fax: +49 (0) 6032-8698410
www.microlightsecurity.com

GENERAL INFORMATION

Thank you for purchasing of products Microlight!
Infrared LED illuminators IR-1 FHD ZOOM intended for use in video surveillance
systems for lighting objects in low light conditions, including total darkness.
Deciphering the model name illuminator:
IR-1FHD-XXX XXX FS XXX
Model of illuminator
The radiation wavelenght, nm
Electrical power (PoE+,
without - 12...24 V AC/DC)
Icons used in this manual:
!
attention! important information!
risk of electric shock
damage to the eyes!
additional information
MICROLIGHT
infrared illuminators

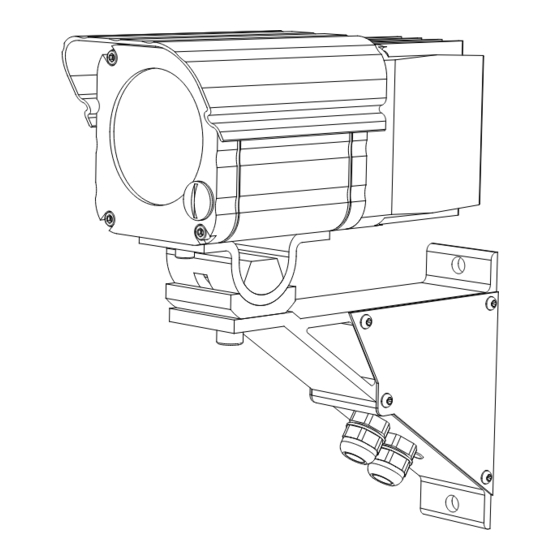

Infrared illuminator
IR-1 FHD ZOOM
Operation manual
v2.1 april 2015
before you get started read the instruction carefully
and make sure that you understand everything
Case color of illuminator
Presence of the light sensor
1 Infrared illuminator
2 Bracket ST-3M
3 Set of fasteners consisting of:
Screw М4х10
Screw М6х25
Washer 4
Washer 6
4 Operation manual
5 Package
Make sure your video camera is suitable for infrared illuminator.
!
To work with an infrared illuminator suitable black-and-white video cameras and
color video cameras with "day/night» feature, in which the corrective filter for cutting
off infrared radiation, automatically moves away from the matrix of the camera when
working in night mode.
To avoid loss of sharpness (focus) of the image in night mode when using infrared
light, the camera must be equipped with a lens with IR correction (IR marking on the
body or in the designation of the lens).
In operation the case of the illuminator may be heated. This is normal and does not
affect the lifetime of the illuminator and which is not by any malfunction or defect.
Infrared LED illuminator IR-1 FHD ZOOM meets the requirements of the Eurasian
Customs Union TR CU 020/2011 «Electromagnetic compatibility of technical
means» and TR CU 004/2011 «On safety of low voltage equipment», as well as the
requirements EMC Directive 2004/108/ EC EN55015:2009, EN61547:2009,
EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2009, EN61000-4-2:2009,
EN61000-4-3:2008, EN61000-4-4:2012, EN61000-4-5:2007, EN61000-4-6:2009,
EN61000-4-11:2005.
If the LED illuminator is out of order, it cannot be repaired and try to recover!
!
Unauthorized disassembly of the illuminator and technical intervention leads
to a denial of warranty service.
Do not disassemble to avoid accidents! LED illuminators are strictly prohibited
to disassemble
Invisible radiation of infrared LEDs! To prevent eye injuries, do not look directly
at the switched-on illuminator.
Installation And Connection of the illuminator should produce an expert in the
field of electrical engineering works.
Protect the illuminator from impacts and vibrations.

PACKAGE CONTENTS

BEFORE YOU START

COMPLIANCE WITH STANDARDS OF SAFETY AND
ELECTROMAGNETIC COMPATIBILITY

SAFETY ENGINEERING

1
1
2
1
2
1
1
1
