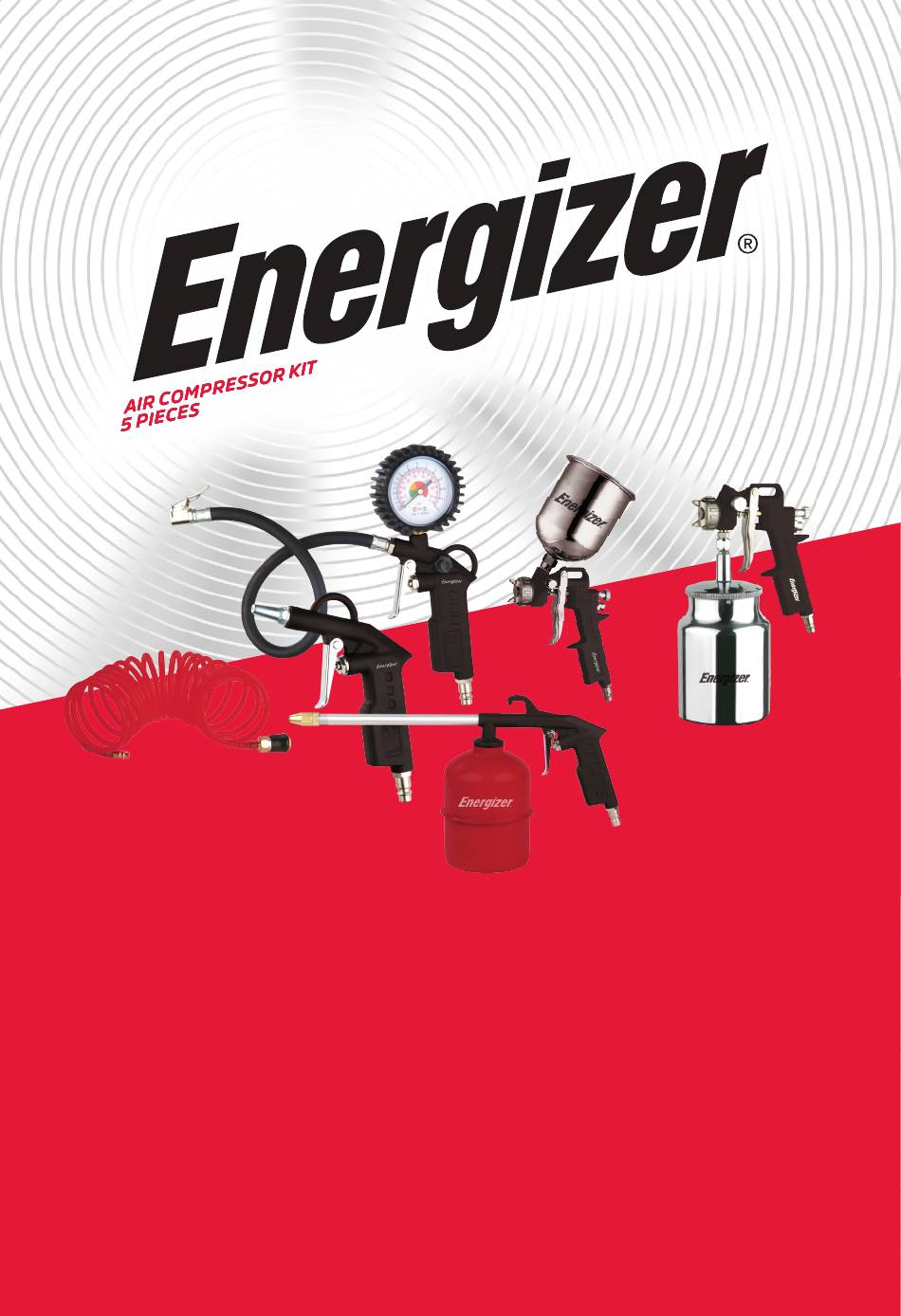

- Page 1 USER MANUAL...
- Page 3 Thank you for purchasing your Energizer ® Air Compressor Kit 5 Pieces This manual will show you the great features of Energizer ® eZ5KIT/-S...
-
Page 4: Table Of Contents
INDEX CONTENTS 1. PRODUCT DESCRIPTION 2. SPECIFICATIONS 3. GENERAL SAFETY INSTRUCTIONS 4. OPERATING THE BLOW GUN 5. OPERATING THE TIRE INFLATOR 6. OPERATING THE SPRAY GUN 7. OPERATING THE CLEANING GUN 8. WARRANTY... -
Page 5: Product Description
1. PRODUCT DESCRIPTION 1. Blow gun 2. Tire inflator 3. Paint spray gun a. 600 ml Gravity paint spray gun b. 1000 ml Suction paint spray gun 4. Cleaning gun 5. Spiral hose IMPORTANT: Please read these instructions carefully. Note the safe operational requirements, warnings and cautions. -
Page 6: General Safety Instructions
Recoil hose Length 5 mm Outer diameter 8 mm Inner diameter 6 mm Air inlet 1/4” 3. GENERAL SAFETY INSTRUCTIONS To use these tools properly, you must observe the safety regulations, the assembly and the operating instructions that are found in this manual. All persons who use and service the machine have to be familiar with this manual and must be informed about its potential hazards. -
Page 7: Operating The Tire Inflator
• The air gun can be connected to either a regulated or an unregulated air outlet supply on the compressor. • To connect to the air line, ensure you use the appropriate fi ings or couplings which correspond with the thread specification of the tool. •... -
Page 8: Operating The Spray Gun
• Do not over inflate the tires beyond the recommended air pressure from the tire manufacturer. 6. OPERATING THE PAINT SPRAY GUN Model: EZ5KIT Model: EZ5KIT-S • It is strongly recommended that before a empting to spray paint a specific job, you first practice on some scrap material to learn how to handle and set the controls. -
Page 9: Operating The Cleaning Gun
• Prior to spraying, always ensure the air nozzle, side ports on the air nozzle and needle assembly are clean and free of dried paint. • Always check the breather hole (B) in the top lid of the paint pot. If this is blocked due to dried paint then the paint will not be drawn up into the gun. - Page 10 Adjusting the spray: Figure 1 Figure 2 • To adjust the flow, slacken the nozzle locking ring (C) located behind the nozzle (B). Screw the nozzle onto the sha (D) as far as possible (Fig. 1). • Depress trigger (E) to gauge the spray. Should the spray need adjustment, continue with next step. •...
-
Page 11: Warranty
WARRANTY Product model Date of sale Company Serial number Client's signature Username Please read and agree to the terms of the warranty. The manufacturer warrants the product against faulty materials and workmanship for a period of 1 year from the date of first purchase to the original purchaser. The warranty is applicable when the product is used in a “home owner”... - Page 12 ©2021 Energizer. Energizer, Energizer Character and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by GBR Corporation Ltd.
