Model #
3495b

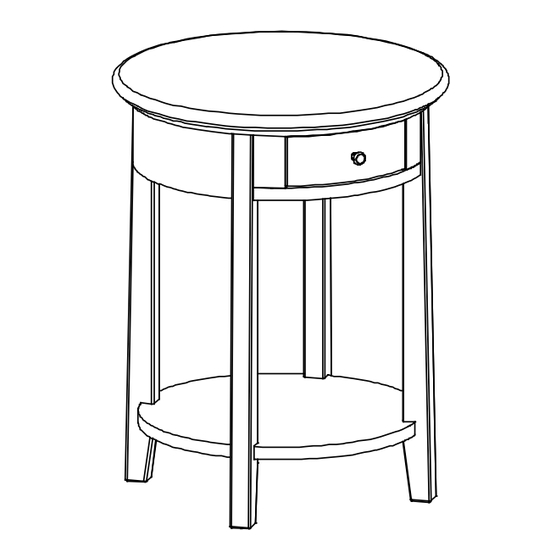

McKenzie Round
Side Table
GAC = Glazed Antique Cherry finish
JAV = Java finish
PEC = Pecan finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Do not climb, sit or stand on this piece of furniture.
• Unload items before you move this unit.
• Do not overload the shelf or drawer.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code :
VN
WARNING
09/23
Advertisement
Related Manuals for Whittier Wood Furniture McKenzie 3495 Series
Summary of Contents for Whittier Wood Furniture McKenzie 3495 Series
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 3495b McKenzie Round Side Table Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Top Assembly Shelf Drawer (inserted) Wood Slide (installed)
- Page 3 3495b McKenzie Round Side Table Assembly Instructions Tools Required: Phillips Screwdriver, Rubber Mallet or Padded Hammer Tool Provided: Leveler Adjustment Key in the Zip bag taped to the Owner’s Manual and Safety Guide. Turn the Top Assembly (Aa) upside down on a clean, protected surface. Position the Drawer Stop (F) so that it is unlocked, remove the Drawer (D) and place it off to the side.
- Page 4 3495b McKenzie Round Side Table Assembly Instructions Using the pocket hole as a guide, secure the Leg (B) to the Top Assembly (Aa) with one #8 x 1-1/4" Pan Head Screw (H). See Figures 3 and 3a. Fig. 3a Fig. 3 Place a second Leg (B) in a corner of the Top Assembly (Aa) and using the pocket hole as a guide, secure the Leg (B) with one #8 x 1-1/4"...
- Page 5 3495b McKenzie Round Side Table Assembly Instructions Place a third Leg (B) in a corner of the Top Assembly (Aa) and using the pocket hole as a guide, secure the Leg (B) with one #8 x 1-1/4" Pan Head Screw (H). See Figure 5. Fig.
- Page 6 3495b McKenzie Round Side Table Assembly Instructions Using the pocket holes as guides, secure the Shelf (C) to the Legs (B) with four #8 x 1-1/4" Pan Head Screws (H). See Figures 7 and 7a. Fig. 7a Fig. 7 Using the pocket holes as guides, secure the side aprons to the Legs (B) with four #8 x 1-1/4" Pan Head Screws (H).
- Page 7 3495b McKenzie Round Side Table Assembly Instructions Turn the table upright and insert the Drawer (D). Rotate the Drawer Stop (F) back to the locked position. See Figure 9. Fig. 9a Fig. 9 Loose Tight 10. Place the table at its final destination. Use the Leveler Adjustment Key (Q), found in the Zip bag taped to the Owner’s Manual and Safety Guide to rotate the Slotted Levelers (P) on the bottoms of the legs until the desk is level.
