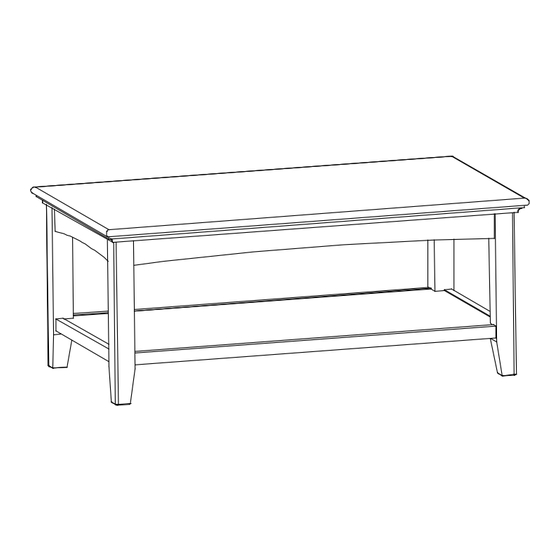

Model #
3499a
McKenzie
Cocktail Table
GAC = Glazed Antique Cherry finish
JAV = Java finish
PEC = Pecan finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Do not climb, sit or stand on this piece of furniture.
• Unload items before you move this unit.
• Do not overload the shelf.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code :
VN
WARNING
10/23
Advertisement
Related Manuals for Whittier Wood Furniture McKenzie 3499a
Summary of Contents for Whittier Wood Furniture McKenzie 3499a
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
-
Page 2: Parts List
3499a McKenzie Cocktail Table Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Top Assembly Shelf Assembly #8 x 1-1/4"... - Page 3 3499a McKenzie Cocktail Table Assembly Instructions Tools Required: Phillips Screwdriver, 9/16" or Adjustable Wrench Tool Provided: Leveler Adjustment Key in the Zip bag taped to the Owner’s Manual and Safety Guide. Turn the Top Assembly (A) upside-down on a clean, protected surface. Place two Legs (B) at the back of the Top Assembly (A), making sure the drilled corners of the legs face toward the Corner Blocks.
- Page 4 3499a McKenzie Cocktail Table Assembly Instructions Using the dowels as guides, place the remaining Legs (B) in the remaining two corners making sure the drilled corners of the Legs face toward the Corner Blocks. See Figure 3. Fig. 3a Fig. 3 Attach the legs to the Top Assembly with 5/16"...
- Page 5 3499a McKenzie Cocktail Table Assembly Instructions Turn the unit onto its top and using the pocket holes as guides, secure the Shelf Assembly (C) to the Legs (B) with eight #8 x 1-1/4" Pan Head Screws (D). See Figures 5 and 5a. Fig.
