Summary of Contents for Roll-n-Lock 502

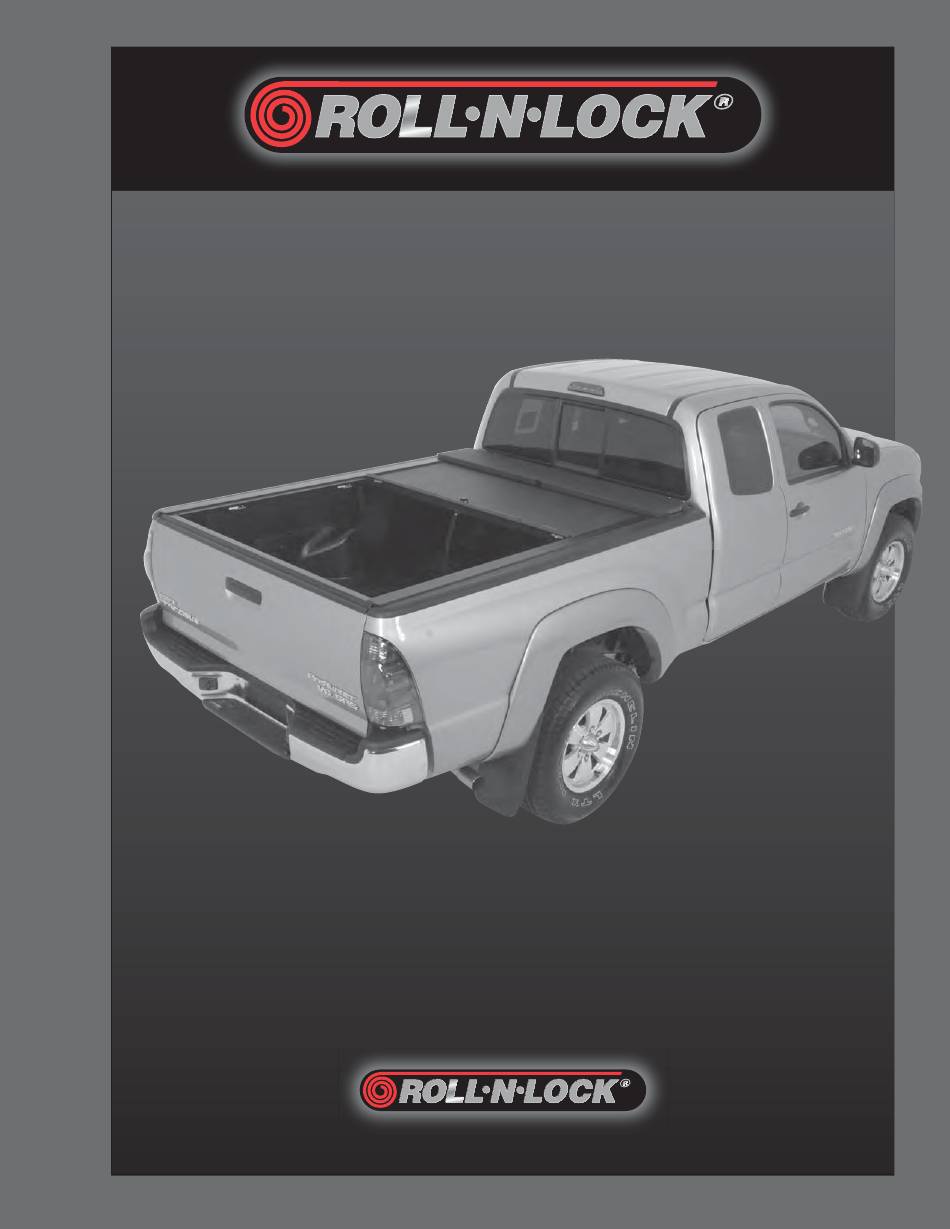

- Page 1 NSTALLATION UIDE 2005-C URRENT OYOTA ACOMA PRODUCT CODES: 502 & 507 Revised: May 5, 2009...
- Page 2 OOLS EEDED OMPONENTS NCLUDED 3/8" Drill Bulkhead Flange 1/2" Drill Bit Hinged P2 Tip #2 Phillips Screwdriver Track(s) x 2 Clamp(s) x 6 Pull Strap Housing Cargo Shield Drain Tailgate Tube(s) x 2 Extrusion 1: I NSTALL ULKHEAD DAPTER Remove an end cap from the bulkhead “C” channel (Photo 1) and insert three of the threaded blocks (Photo 2).
- Page 3 1: I NSTALL ULKHEAD DAPTER CONTINUED Bulkhead Adapter Flange onto the bulkhead (Photo 3) and position Photo 3 Photo 4 threaded blocks between the knockouts so the holes line up (Photo 4). Use ¼ - 20 x 1" counter-sunk screws to secure the Adapter Flange to the bulkhead. 2: I NSTALL OUSING...
- Page 4 3: I NSTALL RACKS CONTINUED Remove the End Caps from the bed rail “C” channels and slide three Track Clamp assemblies into each channel (Photo 9). Note that the Clamps are labeled “front”, “middle”, and “rear” and must be located accordingly (Photo 10).
- Page 5 4: I NSTALL AILGATE XTRUSION Lower the tailgate place the Tailgate Extrusion assembly onto the tailgate (Photo Photo 16 Photo 17 16). Note that the end of the beveled adapter fl ange must be exactly fl ush with the end of the molded tailgate protector (Photo 17).
- Page 6 4: I NSTALL AILGATE XTRUSION CONTINUED Once tightened, the Track should be approximately 90° to the truck bed wall (Diagram 22). If the Track pitches upward, loosen the back Clamp and remove the two Shims (Diagram 23). You may fi nd it easier to slide the back Clamp out of the bed rail “C”...
- Page 7 5: I & D NSTALL ARGO HIELD RAIN UBES CONTINUED Use 1/4-20 x 1/2" truss head screws and rubber washers to secure the Cargo Shield (Diagram 27). Note: The rubber washers go on the inside of the Cargo Shield. Rubber Washers Cargo Shield Truss Head Screws...
- Page 8 EVIEW IRROR Eliminate come-backs by giving your customers a friendly reminder of how to use and maintain their new ROLL-N-LOCK ® retractable cover for maximum satisfaction. This hang-tag will get noticed immediately on the rear view mirror of your customer’s pickup, providing them with everything they need to know.
