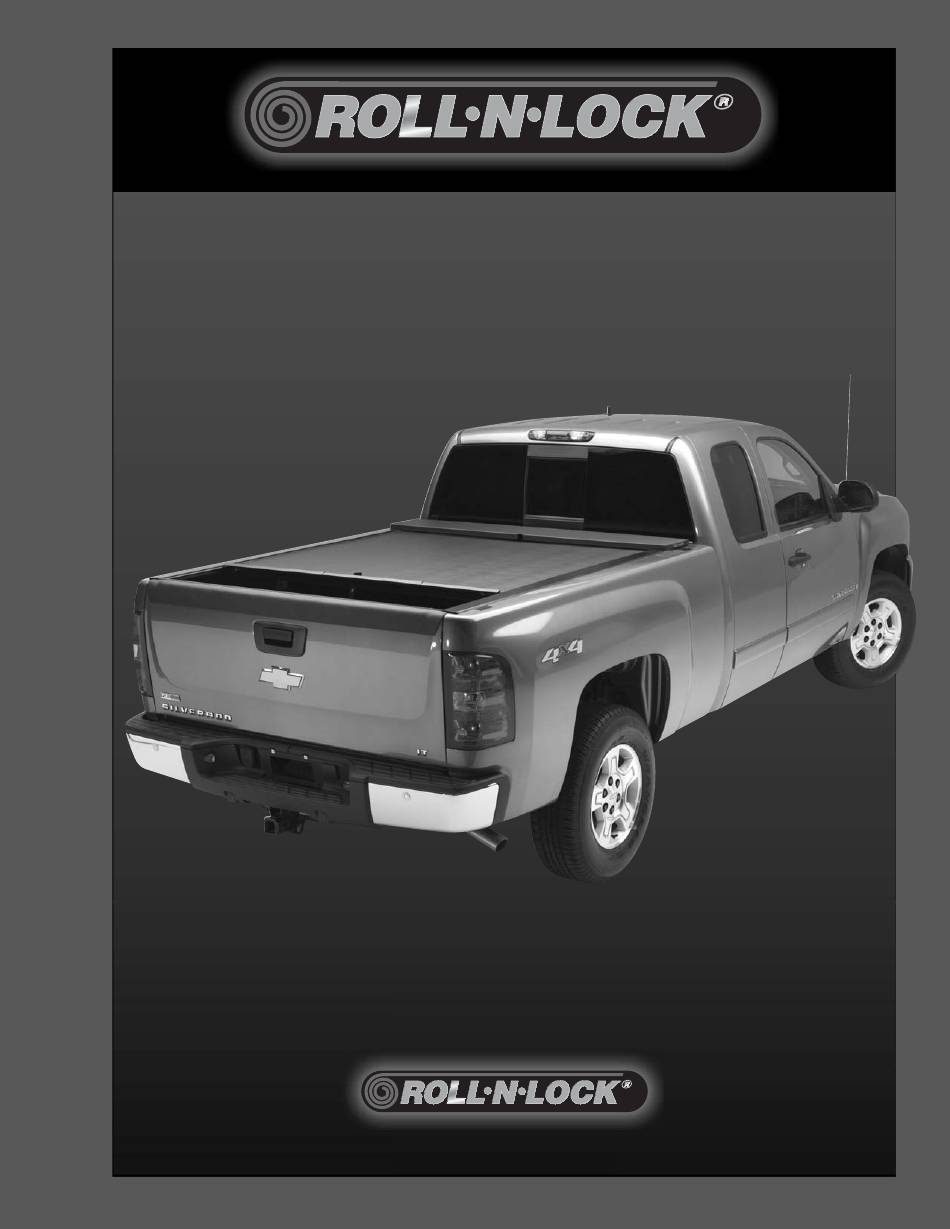

- Page 1 NSTALLATION UIDE 2007-C URRENT GM S IERRA ILVERADO PRODUCT CODE: 207 , 217 , 219 & June 23, 2011...
-
Page 2: Installation
NSTALLATION UIDE OOLS EEDED OMPONENTS NCLUDED 3/8" Drill Housing Support Bracket(s) 1/2" Drill Bit P2 Tip #2 Phillips Screwdriver Hinged Lid Track(s) x 2 Clamp(s) Housing Pull Strap Cargo Shield Tailgate Drain Extrusion Tube(s) x 2 STOP! F YOU HAVE A PLASTIC DROP IN BEDLINER SURE TO FOLLOW... - Page 3 1: B EDLINER ODIFICATION Note: If the truck is equipped Typical with a plastic drop-in bedliner, under-the-rail remove the bedliner and bed liner tailgate panel for alterations. If no bedliner is present, proceed to Step 2. NOTCH FOR REAR CLAMP Using a jig saw with a medium tooth blade, remove the bulkhead...
- Page 4 3: I NSTALL RACK RACKET SSEMBL Y Insert 1/4-20 x 1 1/4" hex head bolt (with fl at washer) through the hole in the “back bed Bracket”, thread into the Mounting Tang, and key the retaining washer onto the end of the bolt (Diagram 3). Insert the Tang into the rear bed wall hole (Photo 6) and snug the 1/4-20 bolt.
- Page 5 5: I NSTALL THE RACKS CONTINUED Carefully place the Tracks on the bedrails (Photo 12) and key them onto the Housing Stems (Diagram 13), being sure that the Handle is properly engaged into the Tracks. Photo 11 Photo 12 When placing the Tracks, Track align back...
- Page 6 6: I NSTALL THE AILGATE XTRUSION CONTINUED While holding the Tailgate Extrusion square and centered on the tailgate, use a #8 x ¾" self-tapping screw and power screw gun to secure the center hole (Photo 18). Next, move to each end, press the Tailgate Extrusion to the top of the tailgate in order to make it conform to the contour of the tailgate, and secure it in place.
- Page 7 8: I & D NSTALL ARGO HIELD RAIN UBES Trim the track gasket 1" from the end of the Track (Photo 23). Rotate the Lock Lever to the 7 o’clock (closed) position (Photo 24), then remove Photo 23 Photo 24 the plastic wing nut and detach the Pull-Strap from...
- Page 8 9: T PERATION In Step 9 the Cover was opened (retracted). This should have caused the Lock Lever to enter the Lock Pocket and rotate to the 7 o’clock (latched) position. To close the Cover, pull the Pull-Strap hand-over hand, allowing the excess strap to fall into the bed until you can reach the Handle.
