- Page 1 Operating instructions SolarEdge EV Charger UK Version 1.02 Translation of the original instructions...
- Page 2 Document: V 1.02 Pages: 24 © SolarEdge Technologies | Version published: 08.2024 Customer Support https://www.solaredge.com/service/support SolarEdge Technologies © KEBA 2021 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Reindlstraße 51, 4040 Linz, Austria, www.keba.com/emobility...
-
Page 3: Table Of Contents
Displays and operating elements ......................... LED bar................................Display (optional)............................Authorization ................................Displays and signals........................... Authorization via RFID ..........................Charging process ................................ Starting the charging process........................ Ending the charging process........................Error diagnosis ................................Maintenance ................................. Support ................................... SolarEdge EV Charger UK 1000000281... -
Page 4: Introduction
Introduction Introduction This manual is valid for the SolarEdge EV Charger. The pictured devices used in this manual are visual examples. The figures and explanations contained in this manual refer to a typical device design. The devices used by you may differ in their appearance. -
Page 5: Purpose Of The Document
The device manufacturer assumes no liability for resulting claims! Warranty Only general maintenance work that is expressly permitted by SolarEdge Technologies may be performed. Any other tampering to the device will result in a loss of the warranty claim. A device with a broken manufacturer's seal or removed lead seal may no longer be put into operation. -
Page 6: Notes On This Document
Operating the charging station 1.6.2 Not contained in this document ● Assembly/disassembly of the charging station ● Commissioning of the charging station ● Troubleshooting Further documentation Manuals and additional information are available on our website: www.solaredge.com/resource-library SolarEdge EV Charger UK 1000000281... -
Page 7: Safety Notes
Observe the information and instructions for your vehicle carefully before you charge the vehicle using the charging station. Persons who, due to their special training, expertise and experience as well as knowledge of current standards, are able to assess the work performed and the possible hazards. SolarEdge EV Charger UK 1000000281... - Page 8 Never clean the charging station with aggressive solvents and cleaning products, scouring materials, water jets (e.g. garden hose, pressure cleaner etc.) or excessive pressure. SolarEdge EV Charger UK 1000000281...
-
Page 9: Description Of The Charging Station
Fig. 3-1: Overview of charging station ... Housing cover ... RFID reader (optional) ... LED bar ... Permanently installed charging cable (optional) ... Charging socket with cover (optional) ... Holder for charging cable (optional) ... Display (optional) SolarEdge EV Charger UK 1000000281... -
Page 10: Type Plate
... Product designation ... Material number ... Technical data ... CE marking of conformity ... MID type examination number ... MID accuracy class ... MID marking ... Serial number ... Production site / date ... UKCA marking SolarEdge EV Charger UK 1000000281... -
Page 11: Options
This chapter lists the possible options of the charging station. 3.3.1 RFID The RFID reader is used for the non-contact authorization of a charging process with MIFARE cards or tags according to ISO 14443 and ISO 15693. Fig. 3-3: RFID ... RFID reader SolarEdge EV Charger UK 1000000281... -
Page 12: Displays And Operating Elements
Blue and orange The charging station is starting up. Orange Self-test during start-up (5 seconds) Orange The charging station is in commissioning mode. (S3) Flashing red Malfunction; for details, see "Diagnostics" SolarEdge EV Charger UK 1000000281... -
Page 13: Display (Optional)
„Insert Plug“ : is displayed when the charging station is ready and the charging cable can be plugged in. „Swipe Card“ : is displayed when an RFID card is to be held over the RFID reader ● for authorization. SolarEdge EV Charger UK 1000000281... - Page 14 If the display is marked with a preceding "M!", an internal message was stored in the memory of the charging station during the charging process. When restarting the charging station, the marking is reset. MID-relevant error. The charging station must be returned for repair. SolarEdge EV Charger UK 1000000281...
-
Page 15: Authorization
A maximum of 20 RFID cards can be taught into a charging station. An RFID master card must first be taught-in for this. Using this master card, additional RFID client cards can subsequently be taught-in. SolarEdge EV Charger UK 1000000281... - Page 16 2) Lift the housing cover at bottom max. 1 cm and then push upwards 3) Unscrew the four screws of the connection panel cover and remove the connection panel cover upwards. The service button in the connection panel is now accessible. SolarEdge EV Charger UK 1000000281...
- Page 17 Confirm the teach-in process within 3 seconds by holding the RFID master card in front of the RFID reader again. The procedure is concluded by a further rising tone sequence. The LED bar then flashes blue to indicate that authorization to start a charge is required. SolarEdge EV Charger UK 1000000281...
- Page 18 RFID cards must be taught in on the master charging station (EV- Charger x-series). The administration of the permitted RFID cards for the entire charging network is carried out at the master charging station. Information on this can be found in the specific "Configuration Manual". SolarEdge EV Charger UK 1000000281...
-
Page 19: Charging Process
For charging station with charging socket: Disconnect the charging cable at the charging station For charging stations with permanently installed charging cable: Stowing of the charging cable on the holder of the charging station The charging process is completed. SolarEdge EV Charger UK 1000000281... -
Page 20: Error Diagnosis
Contact your service partner If you have any questions or problems, please contact your service partner. For this purpose, make a note of the product designation and serial number of the device (see "Type plate"). SolarEdge EV Charger UK 1000000281... -
Page 21: Maintenance
(visual inspection). Cleaning Use a soft, damp cloth for cleaning. Stubborn dirt can be removed using a mild, solvent-free, non- scouring cleaning agent. The cleaning agent must not contain anionic surfactants. SolarEdge EV Charger UK 1000000281... -
Page 22: Support
System configuration information, including the type and number of modules connected and the number and length of strings. ● The communication method to the SolarEdge server, if the site is connected. ● The product's software version as it appears in the status screen. - Page 24 SolarEdge Technologies www.solaredge.com...
Need help?
Do you have a question about the EV Charger UK and is the answer not in the manual?
Questions and answers
Есть ли серийный номер на станции
Yes, the serial number is printed on the rating plate of the client charging station.
This answer is automatically generated

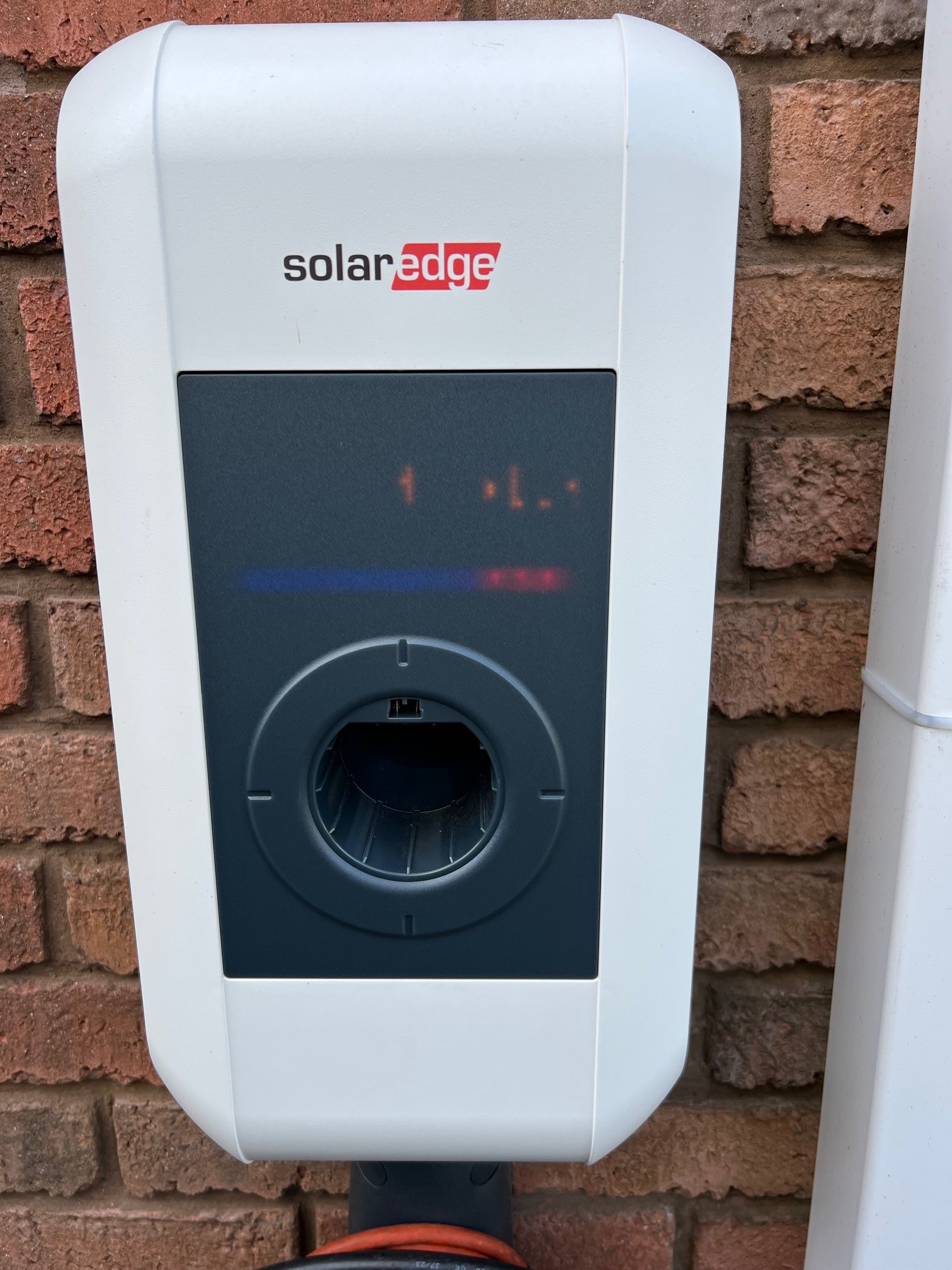

S1-3 Blue LED S4 RED LED what does that mean??
