Summary of Contents for Gecko in.temp mini

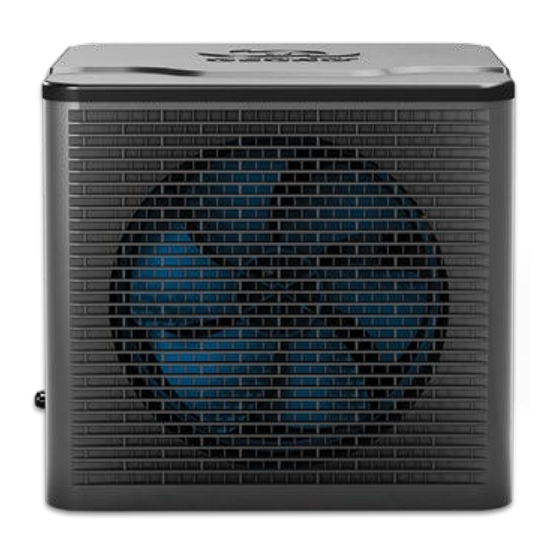

- Page 1 TechBook in.temp mini The most affordable heat pump fully integrated with your hot tub system Unleash energy savings with a budget-friendly investment Seamless integration for effortless control Whisper-quiet comfort for unforgettable relaxation...
-
Page 2: Table Of Contents
Table of contents Safety instructions 2 Flammable materials 2 Warnings 3 Introduction 5 Overview 7 - intemp mini overview 7 - intemp mini dimensions 7 - Box content - CE Model 8 - Accessory kit (Included in the box) 8 - Exploded view 9 Connections 10... -
Page 3: Safety Instructions
Gecko , and their respective logos are registered trademarks of Gecko Alliance Group intemp mini™, inye™, inyt™, inyj™ and their respective logos are trademarks of Gecko Alliance Group All other product or company names that may be mentioned in this publication are trade names, trademarks or registered trademarks... -
Page 4: Warnings
Warnings WARNINGS: Before installing or connecting the unit, please read the following: * DO NOT DISASSEMBLE OR ALTER THE APPARATUS * DO NOT USE FOAM TO ISOLATE THE UNIT * TURN POWER OFF BEFORE MODIFYING ANY CABLE CONNECTION IN THIS UNIT * TURN POWER OFF BEFORE CLEANING OR SERVICING THIS UNIT * PRODUCT MUST BE DISPOSED OF SEPARATELY FROM NORMAL HOUSEHOLD WASTE IN ACCORDANCE WITH LOCAL WASTE DISPOSAL LEGISLATION... -
Page 6: Introduction
Unleash energy savings with a budget-friendly investment The Gecko intemp mini offers an unbeatable price point for a fully integrated heat pump, making energy savings simple and accessible to all hot tub owners Seamless integration for effortless control... - Page 7 This document includes the necessary information to safely install and maintain your intemp mini Please read this manual carefully before you operate the unit The in.temp mini The intemp mini is one of the most economical ways of heating your hot tub efficiently Using the free renewable...
-
Page 8: Overview
Overview in.temp mini overview Top cover (access to connection box) Water outlet Water inlet Fan exhaust Rubber mounts (4) Control panel (Optional available on stand-alone version) Model Part # INTEMP-H30-CE 0615-807006 in.temp mini dimensions Gecko-3.0kW 385 mm (1516 in) 412 mm (1622 in) -
Page 9: Box Content - Ce Model
Overview Box content - CE Model • intemp mini • Accessory kit Including rubber feet and fittings for 15-in piping • 600AB0257 Heat pump communication cable 5 metres (16 feet) - pre-installed • 600DA0305 Heat pump power cord euro 18/3 AWG 5 metres (16 feet) - pre-installed Optional / sold separately •... -
Page 10: Exploded View
Overview Exploded view Top panel 4-way valve Connection box Compressor Heat exchanger Evaporator Left panel Back panel Fan bracket Front panel Fan blade Fan motor Base panel Right panel... -
Page 11: Connections
Connections Turn off power before connecting the intemp mini to the hot tub control system System connection The communication cable provided with the heat pump must be connected to the RS485 communication port of the hot tub control The power cable connects to the hot tub control using 635mm (0250'') quick-connect female terminals Ensure that all female terminals are correctly and completely seated on the printed circuit terminals for proper current ratings The connection must be done according to the following tables: in.ye-V3 control system... -
Page 12: Terminal Box
Connections Terminal box The terminal box is located underneath the top cover and allows access to the communication and power connections COMP 50℃ BLU Y/G Power MN1003 Cable (CE) RS485_1 3.3V TO POWER SUPPLY 220-240V~/50Hz Describe Ambient temperature Compressor COMP Remote Coil temperature ON/OFF... -
Page 13: Installation
It must be connected to the hot tub controller bonding terminal on the water heater Locating the in.temp mini The intemp mini should NOT be installed in an airtight location or confined space, such as a basement or... -
Page 14: Space Requirements
Installation Space requirements The terminal box is located underneath the top panel and allows access to the communication and power connections Air inlet Air outlet 07 m (28") 03 m (12") * Top clearance is only a recommendation to ease service. - Page 15 For a more stable flow in the heat exchanger, it is recommended to install the intemp mini on the pressure side of the main pump 1.5 in piping to the in.temp mini check valve output valve water out in.clear (sanitation)
-
Page 16: Operating Modes
The intemp mini is not used to cool the water in this mode in.temp mini efficiency The system is constantly monitoring outside temperature and as soon as this temperature impacts the efficiency of the intemp mini, the system will bypass the selected mode and use the electric heater to get better energy efficiency... -
Page 17: Maintenance
Maintenance To protect the paintwork, avoid leaning or putting objects on the shell The cover and the panels can be wiped with a damp cloth and domestic cleaner (Warning: Never use cleaning agents containing sand, soda, acid or chloride as these can damage the surfaces) To prevent clogging in the titanium heat exchanger, ensure that the system incorporates water filtration treatment equipment In the event of a problem occurring due to contamination, the system should be cleaned as described... -
Page 18: Steps To Winterize Your InTemp Mini
Steps to winterize your in.temp mini in.temp mini and freezing weather The intemp mini is equipped with a security algorithm to prevent freezing in the pipes and in the worst case, this could make the pump run more often The intemp mini should be energy efficient even when it comes to the first freezing... -
Page 19: Compatible Keypads
Compatible keypads List of compatible keypads with in.temp mini For more information on the compatible keypads for your intemp mini, refer to the corresponding Techbook ink330 main keypad ink500 main keypad ink800 main keypad Color LCD display, 5 keys Color LCD display, 7 keys... -
Page 20: Troubleshooting
Troubleshooting This heat pump is equipped with a thermal cutoff to prevent abnormal failures The thermal cutoff will deactivate the power to the heat pump compressor In the event of such a failure, the heat pump fan will continue to operate, but the compressor will remain off No error message will be displayed The most common reasons for this failure are insufficient water flow or a defective water flow switch To reset the system, allow the heat pump to cool down and then reset the hot tub main breaker... -
Page 21: Troubleshooting Guide
Troubleshooting Stand-alone mode with in.grid Troubleshooting guide Malfunction Error code Cause Solution Check or change the water inlet Water inlet temp sensor The water inlet temp failure sensor is open or short circuit temp sensor The ambient temp Check or change the ambient temp Ambient temp sensor failure sensor is open or short circuit... -
Page 22: Specifications
Specifications Environmental ratings CE models 3.0kW Operating temperature: 0°C (23°F) to 43°C (109°F) Water resistance: IPX4 Mechanical CE models 3.0kW Compressor: Rotary (GREE) Pressure: Min: 21 MPa (30458 psi) Max: 44 MPa (63817 psi) Refrigerant: R32/180g (635oz) Weight: Net: 215 kg (474 lbs) Gross: 23 kg (5071 lbs) Carton box size:... -
Page 23: Compatibility
Energy saving graph menu will also be deactivated.To avoid unnecessary shedding of accessories when the in.temp mini is opperating, heat pump current must be manualy adjusted to to Five (5) through your hot tub user interface. -
Page 24: Replacement Parts
Fan capacitance 150AA0601 Flow switch 510AD0252 External temperature probe 550AA0043 Alim. Cable 5M 600DA0305 Alim. Cable 10 M 600DA0306 Bundle for in.temp mini + in.grid 0699-500024 in.temp mini Keypad 9920-100182 in.temp mini Keypad + T4 cable for in.grid kit 9920-102303... - Page 25 9919-101843-C Rev. 08-2024 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance inc., 2024 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners.
