  • Page 1 TechBook in.temp A new way to regulate the water of your spa Plug and play solution Benefit from energy savings A total flexibility that can also cool down water...
  • Page 2: Table Of Contents

    Table of contents Safety instructions  2 Warnings  3 Introduction  5 Overview  7 - intemp overview  7 - Box content  7 - intemp dimensions  8 - Exploded view  8 Connections  9 Installation  10 Operating modes  12 Maintenance  13 Steps to winterize your intemp  14...
  • Page 3: Safety Instructions

    HAVE FALLEN INTO THE APPARATUS, DOES NOT OPERATE NORMALLY, OR HAS BEEN DROPPED Gecko , and their respective logos are Registered Trademarks of Gecko Alliance Group ® intemp™, ingrid™, inye™, inyt™, inyj™, ink1000™, inclear™, intouch 2™, ink110™ and their respective logos are Trademarks of Gecko Alliance Group  ...
  • Page 4: Warnings

    Warnings WARNINGS: Before installing or connecting the unit, please read the following * DO NOT DISASSEMBLE OR ALTER THE APPARATUS * DO NOT USE FOAM TO ISOLATE THE UNIT * TURN POWER OFF BEFORE MODIFYING ANY CABLE CONNECTION IN THIS UNIT * TURN POWER OFF BEFORE CLEANING OR SERVICING THIS UNIT * PRODUCT MUST BE DISPOSED OF SEPARATELY FROM NORMAL HOUSEHOLD IN ACCORDANCE WITH LOCAL WASTE DISPOSAL LEGISLATION...
  • Page 6: Introduction

    Air sourced heat pumps will allow you to save up to 75% energy consumption in comparison with eletric elements The icing on the cake: Gecko’s intemp also uses an ecofriendly refrigerant With intemp, you can choose one of its six modes of...
  • Page 7 Introduction This document This document includes the necessary information to safely install and maintain your intemp Please read this manual carefully before you operate the unit The in.temp The intemp is one of the most economical ways of heating your spa efficiently Using the free renewable energy from the air, it is over 4/5 time more efficient than traditional heating The intemp gives you comfort at high level so you can enjoy your spa not only in summer, but also in spring, fall and even winter time ECO Friendly...
  • Page 8: Overview

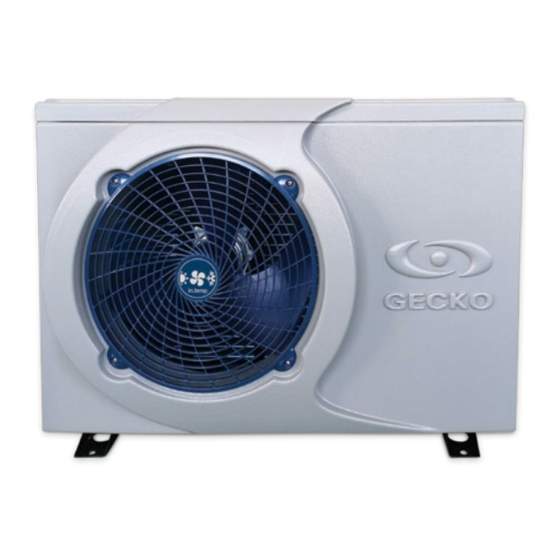

    Overview in.temp overview Fan exhaust Connection box Drainage plug Fastening bracket Model Part # INTEMP-H50-CE 0615-807002 INTEMP-H75-CE 0615-807003 INTEMP-H50 0615-807000 INTEMP-H75 0615-807001 Box content - CE Model • intemp • Quick Reference Card - 9919-101638 • Accessory kit • 9920-401527 Heat pump communication cable 5 meter (16 feet) - pre-installed •...
  • Page 9: InTemp Dimensions

    Overview in.temp dimensions Gecko-5kW Gecko-7.5kW 555 mm (21,85 in) 661 mm (26,02 in) 794 mm (31,26 in) 902 mm (35,51 in) 395 mm (15,55 in) 423 mm (16,65 in) 346 mm (13,62 in) 356 mm (14,02 in) 92 mm (3,62 in)
  • Page 10: Connections

    Connections Turn off power before connecting the intemp to the spa control system System connection The communication cable provided with the heat pump must be connected to the RS485 communication port of the spa control The power cable connects to the spa control using 6,35mm (0,250'') quick connect female terminals Ensure that all female terminals are correctly and completely seated on the printed circuit terminals for proper current ratings The connection must be done according to the following tables: CE Model...
  • Page 11: Installation

    Installation CAUTION Do not install the unit in a place where flammable gas leak can occur All plumbing connections should be carried out as per the instructions in this manual Failure to do so could result in water damage to property Avoid contact with the fan when the unit is operating as this will cause serious injury Ensure the intemp is correctly grounded to earth with the power cable Locating the in.temp...
  • Page 12 Installation Precautions • Avoid locating the unit close to bedrooms or other noise sensitive areas • Avoid a location which could create vibration (eg secured to a solid wall) • The fan should not blow towards windows, walls or spaces likely to be inhabited by people or animals •...
  • Page 13: Operating Modes

    Operating modes The operating mode can be changed through the spa user interface Six different operating modes are available: 1) Eco Heat (EcoH) 2) Smart Heat (HEAT) 3) Cool (COOL) 4) Eco Auto (AUTO) 5) Smart Auto (SMRT) 6) Electric (ELEC) Eco Heat (EcoH) Eco Auto (AUTO) In this mode, the intemp is used as the unique source of...
  • Page 14: Maintenance

    Maintenance To protect the paintwork, avoid leaning or putting objects on the shell intemp parts can be wiped with a damp cloth and domestic cleaner (Warning: Never use cleaning agents containing sand, soda, acid or chloride as these can damage the surfaces) To prevent clogging in the titanium heat exchanger, ensure that the system incorporates a water and filter treatment equipment In the event of a problem occurring due to contamination, the system should be cleaned as described...
  • Page 15: Steps To Winterize Your InTemp

    Steps to winterize your in.temp • Turn off all electrical power to the intemp • Turn off the circulation pump • Disconnect the water piping inlet and outlet from the intemp • Remove the drain plug and make sure the heat exchanger drains out •...
  • Page 16: Troubleshooting

    Troubleshooting Error codes If a protection kicks in or if an error is detected in the heat pump, an error code will be reported on the spa keypad If more than one error is detected, only the error with the highest priority will be displayed All error codes are listed below in priority order Error code Error description...
  • Page 17: Specifications

    Specifications Environmental ratings Operating temperature: -5 °C (23 °F) to 43 °C (109 °F) Water resistance: IPX4 Mechanical CE models NA* models Compressor: Rotary (GMCC) Rotary (GMCC) Pressure: Min: 1,5 MPa (218 psi) Min: 1,5 MPa (218 psi) Max: 4,15 MPa (609 psi) Max: 4,15 MPa (602 psi) 7,5kW 7,5kW...
  • Page 18 9919-101640-A Rev. 10-2019 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance inc., 2019 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners. Printed in Canada...
