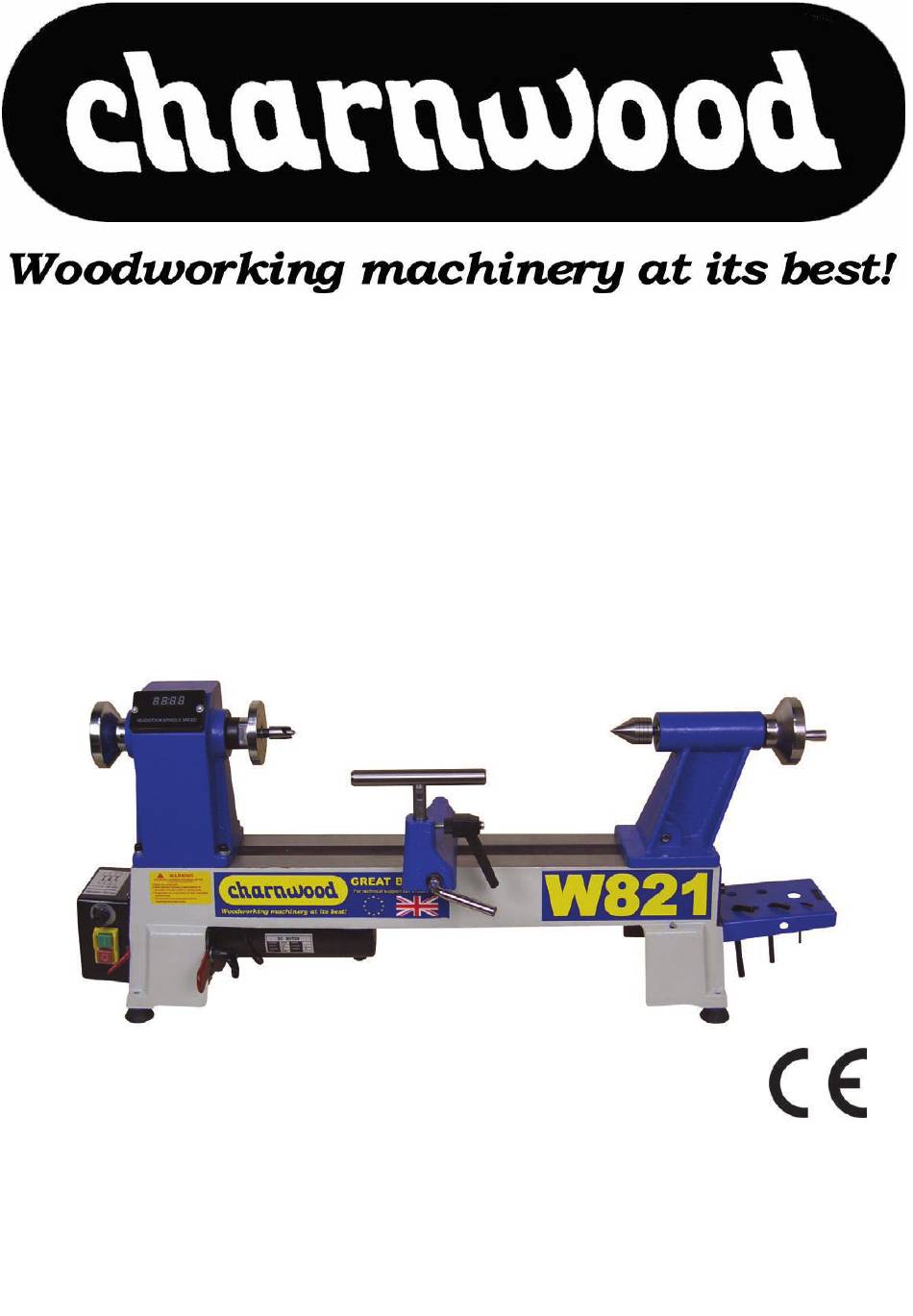

- Page 1 WOODTURNING LATHE OPERATING INSTRUCTIONS MODEL: W821 Charnwood, Cedar Court, Walker Road, Bardon Hill, Leicestershire, LE67 1TU Tel. 01530 516926 Fax. 01530 516929 email; sales@charnwood.net website; www.charnwood.net...
-
Page 2: Technical Data
Introduction To get the most out of your new lathe, please read through this manual and safety instruc- tions before use. Please also save the instructions in case you need to refer to them at a later date. Technical data Distance between Centres 430mm Distance over bed... -
Page 3: Safety Rules
Safety Rules As with all machines, there is a certain amount of hazard involved with the use of this lathe. Use the machine with the respect and caution demanded where safety precautions are concerned. When normal safety precautions are overlooked or ignored, personal injury to the operator can result. Read, understand and follow the safety and operating instructions found in this manual. - Page 4 Health hazards Some dust created by sanding, sawing, grinding, drilling and other construction activities contains chemi- cals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: * Lead from lead-based paint. * Crystalline silica from bricks and cement and other masonry products. * Arsenic and chromium from chemically-treated lumber.
-
Page 5: Maintenance Instructions
ASSEMBLY INSTRUCTIONS Unpack the lathe and check all of the components are present. Visually check all parts for signs of damage. Mounting the Speed Control Unit To ensure safe transport the speed control unit is removed during packing. Locate the Hinge Pin (#61). Hold the speed control unit so that the hinge is aligned with the two fixings attached to the lathe bed. -
Page 6: Belt Replacement
Loosen the Ratchet Handle (#45) to allow the motor plate to swivel upwards. Raise the Door Latch and swing the control unit to the side for access to the motor pulley. When moving the belt always start with the end going from larger pulley to smaller pulley. After moving the belt, push the motor plate down to tension the belt and tighten the Ratchet Handle. - Page 7 W821 WOOD LATHE EXPLODED VIEW OPTIONAL...
- Page 8 Charnwood, Cedar Court, Walker Road, Bardon Hill, Leicestershire, LE67 1TU Tel. 01530 516926 Fax. 01530 516929 email; sales@charnwood.net website; www.charnwood.net...
