CALIBRATION PROCEDURE

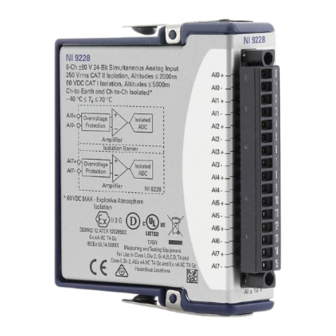

NI 9228
8 AI, ±60 V, 24 Bit, 1 kS/s/ch Simultaneous
This document contains the verification and adjustment procedures for NI 9228. For more
information about calibration solutions, visit ni.com/calibration.
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 1
Test Equipment..........................................................................................................................2
Test Conditions..........................................................................................................................3
Initial Setup............................................................................................................................... 3
Verification................................................................................................................................3
Accuracy Verification....................................................................................................... 3
Adjustment................................................................................................................................ 5
Accuracy Adjustment........................................................................................................5
EEPROM Update...................................................................................................................... 6
Reverification............................................................................................................................6
Accuracy under Calibration Conditions....................................................................................6
Revision History....................................................................................................................... 7
Worldwide Support and Services.............................................................................................. 7

Software

Calibrating the NI 9228 requires the installation of NI-DAQmx 18.1 or later on the calibration
system.
You can download NI-DAQmx from ni.com/downloads. NI-DAQmx supports LabVIEW,
™
LabWindows
/CVI
install support for the application software that you intend to use.

Documentation

Consult the following documents for information about the NI 9228, NI-DAQmx, and your
application software. All documents are available on
software.
™
, ANSI C, and .NET. When you install NI-DAQmx, you only need to
ni.com
and help files install with the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9228 and is the answer not in the manual?

Questions and answers

Related Manuals for National Instruments 9228

Summary of Contents for National Instruments 9228

  • Page 1: Table Of Contents

    Accuracy under Calibration Conditions..................6 Revision History........................7 Worldwide Support and Services....................7 Software Calibrating the NI 9228 requires the installation of NI-DAQmx 18.1 or later on the calibration system. You can download NI-DAQmx from ni.com/downloads. NI-DAQmx supports LabVIEW, ™ ™...

  • Page 2: Test Equipment

    Table 1. Recommended Equipment Equipment Recommended Model Requirements Use a high-precision voltage source with gain error of Calibrator Fluke 5502A ≤50 ppm and offset error <50 μV. Chassis NI cDAQ-9178 — 2 | ni.com | NI 9228 Calibration Procedure...

  • Page 3: Test Conditions

    Verification The following performance verification procedure describes the sequence of operation and provides test points required to verify the NI 9228. The verification procedure assumes that adequate traceable uncertainties are available for the calibration references. Accuracy Verification Complete the following procedure to determine the As-Found status of the NI 9228.
  • Page 4 If the value is within these limits, the device passes the test. Repeat steps 3 through 7 for each test point in the NI 9228 Verification Test Limits table. Disconnect the calibrator from the device.

  • Page 5: Adjustment

    Initialize a calibration session on the NI 9228. The default password is Input the external temperature in degrees Celsius. Call the NI 9228 get C Series adjustment points function to obtain an array of recommended calibration voltages for the NI 9228.

  • Page 6: Eeprom Update

    EEPROM Update When an adjustment procedure is completed, the NI 9228 internal calibration memory (EEPROM) is immediately updated. If you do not want to perform an adjustment, you can update the calibration date and onboard calibration temperature without making any adjustments by initializing an external calibration, setting the C Series calibration temperature, and closing the external calibration.

  • Page 7: Revision History

    NI. NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504, USA. For up-to-date contact information for your location, visit ni.com/contact. | © National Instruments | 7 NI 9228 Calibration Procedure...
  • Page 8 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
