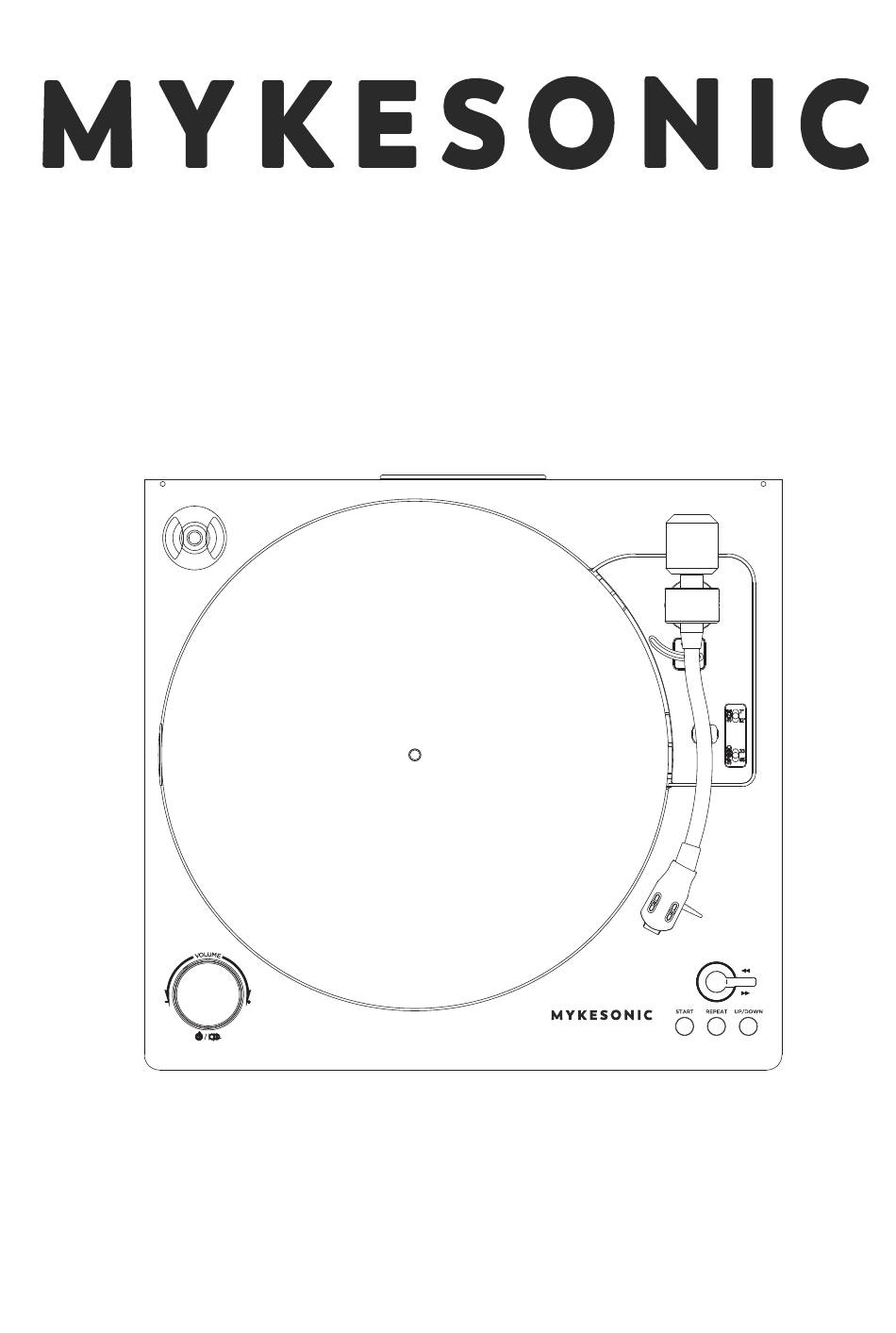

- Page 1 TURNTABLE Model: YY1880 TT59 INSTRUCTION MANUAL Please read this Instruction manual carefully before use. Keep the Manual for future reference.
-
Page 2: Table Of Contents
CONTENTS TABLE OF CONTENTS SAFETY INSTRUCTIONS .......................... PRODUCTION OVERVIEW ........................SETUP OPERATION ........................... BASIC OPERATION ............................ TROUBLE SHOOTING ..........................SPECIFICATIONS ............................FCC / IC STATEMENTS .......................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the following safety instructions and respect the warnings before the appliance is operated: 1. Always follow basic safety precautions when using this appliance, especially when children are present. 2. Children should be supervised to ensure that they do not play with the appliance. - Page 4 SAFETY INSTRUCTIONS For indoor use only. Use only power supply listed in the user manual. 21. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 22. Do not place the product where the humidity is high and ventilation is poor. 23.
-
Page 5: Front View / Rear View
PRODUCT OVERVIEW FRONT VIEW / REAR VIEW 45rpm adaptor Tone arm holder Size selector Speed selector Tone arm Stylus Turntable Forward/Backward START REPEAT UP/DOWN Up/down (tone arm) Repeat Start/Stop Power/Mode knob Volume knob Indicator light Speakers Earphone jack DC IN 9V Power adaptor jack Right/Left audio output jack... -
Page 6: Remote Control
PRODUCT OVERVIEW REMOTE CONTROL Power Mode Up (tone arm) Forward/Backward Start/Stop/Repeat Down (tone arm) Play/Pause Previous Volume+/- Next... -
Page 7: Setup Operation
SETUP OPERATION SETUP Remove the packaging materials from the unit. 2. Connect the power adaptor to the DC input jack on the rear panel. NOTE: It is strongly recommended that this product DC IN 9V should be operated only from the type of power DC IN 9V source indicated on the marking label. -
Page 8: Basic Operation
BASIC OPERATION BUTTONS OPERATION POWER ON/OFF 1. Connect the power adaptor into the DC INPUT JACK on the rear panel. 2. Press and hold the POWER/MODE/VOLUME KNOB on the front panel to power on or off the unit. 3. Press the POWER button on Remote control to power on or off the unit. NOTE: When powering off the unit, you can hear the voice prompt, and the Indicator light turns off later. - Page 9 BASIC OPERATION LISTENING TO THE VINYL RECORD Press the POWER/MODE KNOB to enter the VINYL MODE. 2. Gently put the Vinyl record on the turntable, use the 45rpm adaptor when play the 45rpm record. 3. Select the record SIZE and record SPEED. 4.
-
Page 10: Bluetooth Mode
2. When the Indicator light flashes blue, it is in Bluetooth pairing mode. 3. Turn on the Bluetooth function on the phone, then enter the Bluetooth search page, and search for the pairing name “MYKESONIC Turntable”. 4. Input the password “0000" if required. -
Page 11: Trouble Shooting
TROUBLE SHOOTING TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE SOLUTION Can not power on. Unit is unplugged. Connect the DC power adaptor to the jack. No sound output Volume is set too low. Adjust the volume. The input mode does not Select the correct input from speakers. -
Page 12: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Power supply DC 9V, 1.5A Power consumption 13.5W Power output 2x5W Bluetooth version Bluetooth V5.0 Operating distance 10 meters (33 feet) POWER ADAPTOR 1. To disconnect the unit from the mains supply, unplug the lead from the mains socket. -
Page 13: Fcc/Ic Statements
IMPORTANT INFORMATION FCC/IC STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 IMPORTANT INFORMATION FCC/IC STATEMENTS CAN ICES(B)/NMB-3(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
