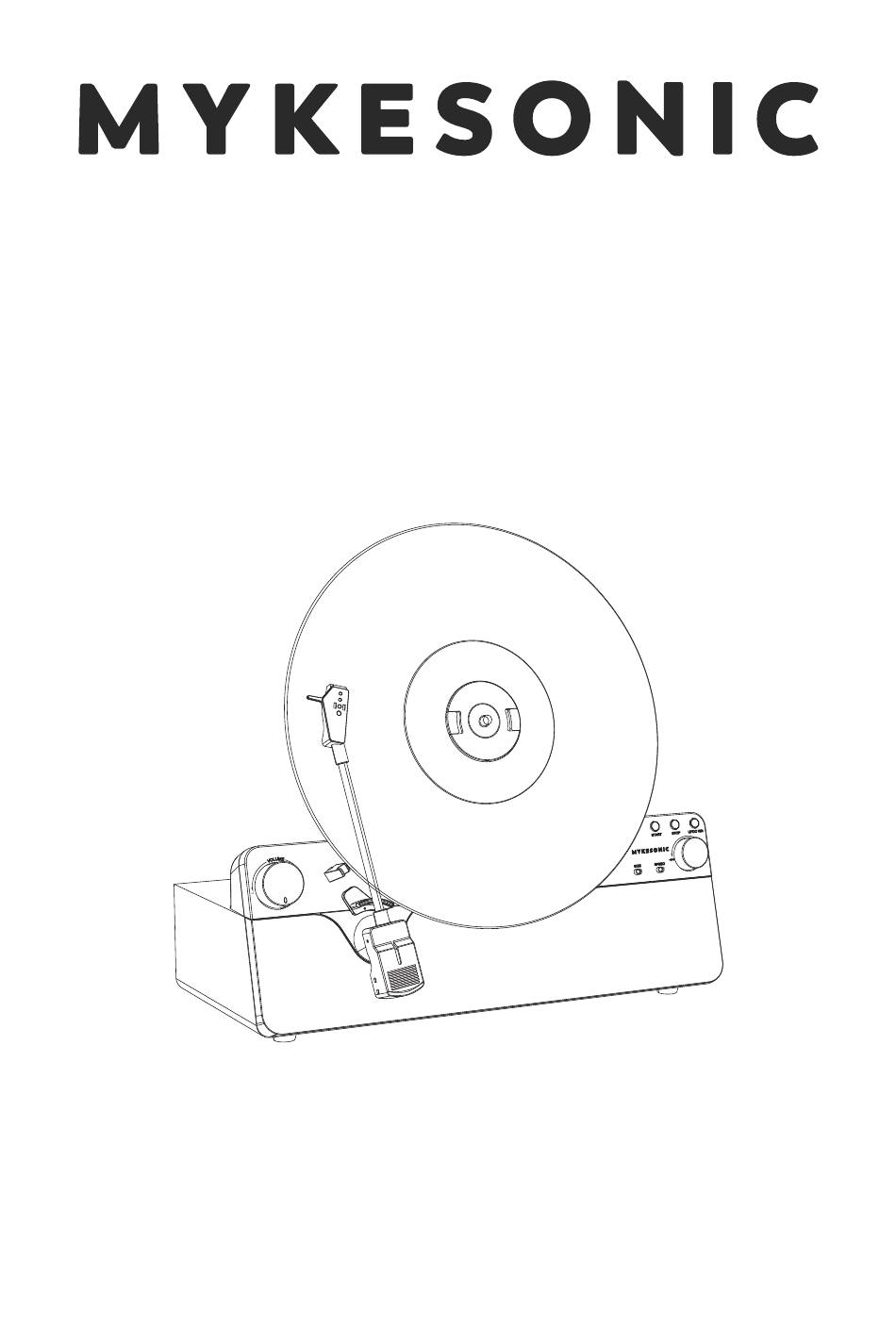

- Page 1 VERTICAL TURNTABLE Model: YY1638 Instruction Manual Please read this instruction manual carefully before use and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS TABLE OF CONTENTS 3 - 4 SAFETY INSTRUCTIONS ........................PRODUCTION OVERVIEW ......................... SETUP OPERATION ..........................7 - 8 BASIC OPERATION ..........................TROUBLE SHOOTING .......................... SPECIFICATIONS ........................... 11 - 12 FCC / IC STATEMENTS ........................ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the following safety instructions and respect the warnings before the appliance is operated: 1. Always follow basic safety precautions when using this appliance, especially when children are present. 2. Children should be supervised to ensure that they do not play with the appliance. - Page 4 SAFETY INSTRUCTIONS For indoor use only. Use only power supply listed in the user manual. 21. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 22. Do not place the product where the humidity is high and ventilation is poor. 23.
-
Page 5: Production Overview
PRODUCT OVERVIEW FRONT VIEW / REAR VIEW Stylus Turntable Record fixator (Fixator storage on the back) Start Stop Up/down (tone arm) Backward/ Forward Speed selector Size selector Speakers Power/ Mode/ Volume knob Record fixator storage Earphone jack Power adaptor jack Right/Left audio output jack... -
Page 6: Setup Operation
SETUP OPERATION SETUP 1. Remove the white protective needle cover by gently pulling towards front of the unit. 2. Remove the packaging materials from the unit. 3. Connect the power adaptor to the DC input jack on the rear panel. NOTE: It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label. -
Page 7: Basic Operation
BASIC OPERATION BUTTON OPERATION POWER ON 1. Connect the power adaptor into the DC INPUT JACK on the rear panel. 2. Press and hold the POWER/MODE KNOB on the front panel to power on the unit. SELECT MODE Slightly press the POWER/MODE KNOB to select the play mode: VINYL mode, VINYL STREAM mode, BLUETOOTH mode. - Page 8 2. When the indicator light flashes blue, it is in Bluetooth pairing mode. 3. Turn on the Bluetooth function on the phone, then enter the Bluetooth search page, and search for the pairing name “YY1638”. 4. Input the password “0000" if required.
-
Page 9: Trouble Shooting
TROUBLE SHOOTING TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE SOLUTION Can not power on. Unit is unplugged. Connect the DC power adaptor to the jack. No sound output Volume is set too low. Adjust the volume. The input selector does not Select the correct input from speakers. -
Page 10: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Power supply DC 9V, 1.5A Power consumption 13.5W Power output 2x5W Bluetooth version Bluetooth V5.1 Operating distance 10 meters (33 feet) POWER ADAPTOR 1. To disconnect the unit from the mains supply, unplug the lead from the mains socket. -
Page 11: Fcc/Ic Statements
IMPORTANT INFORMATION FCC/IC STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 12 IMPORTANT INFORMATION FCC/IC STATEMENTS CAN ICES(B)/NMB-3(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
