pathway DMeXit Installation Manual

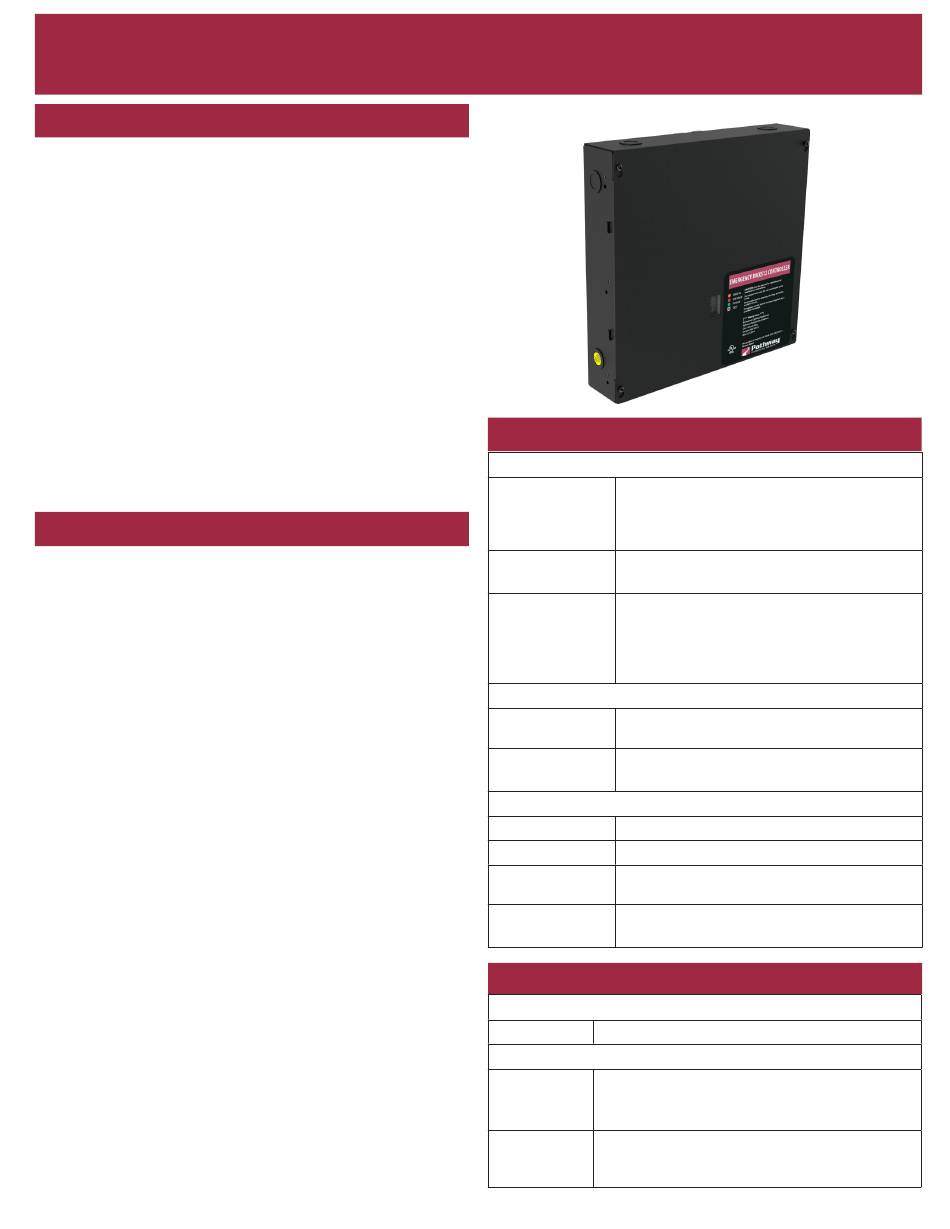

DMeXit Emergency Controller
OVERVIEW
The Pathway DMeXit is a UL924 certified controller de-
signed to send a control signal to DMX lighting in emer-
gencies to satisfy minimum luminance levels for egress
lighting. DMeXit may be triggered using a wet or dry
contact closure from other building management sys-
tems, or the integrated phase loss detection device.
Upon trigger, a user-recordable snapshot of a single
universe DMX will be transmitted to four separate data
runs. The outputs are optically isolated to ensure max-
imum reliability and are fully RDM compliant so that
your entertainment console or architectural controller
still has maximum flexibility when it comes to commis-
sioning and monitoring your system during normal op-
eration. There are multiple options for restoring normal
operation after conditions have been cleared, including
user programmable time delays, sensing of valid input
signal from the normal controller or a remote restore
button for facilities or stage managers.
IMPORTANT SAFEGUARDS
1. All servicing should be performed by qualified service
personal.
2. When using electrical equipment, basic safety precau-
tions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
a. Do not use outdoors.
b. Do not mount near gas or electric heaters.
c. Equipment should be mounted in locations and
at heights where it will not readily be subjected to
tampering by unauthorized personnel.
d. The use of accessory equipment not recommend
by the manufacturer may cause an unsafe condition.
e. Do not use this equipment for other than its in-
tended use.
3. The Emergency Circuits for this panel, must be fed
from a UPS, generator, or other guaranteed source of
power during emergency and power outage situations.
4. CAUTION - This equipment may be fed by more than
one power supply source. To reduce the risk of electric
shock, both normal and emergency sources feeding this
unit should de-energized before servicing any equip-
ment connected inside the marked high voltage com-
partments.
5. Pathway assumes no responsibility for claims arising
out of improper or careless installation or handling of
this product. Failure to follow any of these instructions
could void product warranty.
Always read complete installation instructions prior to
installation!
SAVE THESE INSTRUCTIONS
Part No. 912-00431-001 March 16, 2023
STATUS INDICATORS
External Indicators
Green. Steady glow indicates emergency power
source is OK; off indicates no emergency power
PWR - Green
source. If all LEDs are off, check that the module
DMX -
Steady glow indicates active DMX source is
Amber
Red. Not lit when system in is normal mode.
Flashes red when Emergency mode has been
EM - Red
activated. Solid red when emergency condi-
tion has cleared and system restore is pending
Internal Indicators
Green. Steady glow indicates that board is
Processor
working. Off when in Emergency mode.
Record Custom
Green. Steady glow only if a custom snapshot
Snapshot
Optional PWACC EMRR Remote Restore
Green
Red - Flashing
System in in emergency mode.
System is ready to be restored to normal
Red - Solid
Red/Green
System is set to automatically restore without
Flashing
BUTTONS
External
Test
Press for a 30s test of emergency snapshot.
Internal
RECORD Press and hold for three seconds to save incom-
ing DMX signal. LED will illuminate.
CUSTOM
SNAPSHOT
Press and hold for 10 seconds to restore snap-
DEFAULT
shot to default with all levels to full. Custom
SNAPSHOT
Snapshot LED will blink and go out.
Installation
Guide
is receiving power.
present.
timeout or user intervention.
has been recorded.
System is in normal operation.
operation.
the use of the EMRR Button.
Page 1
