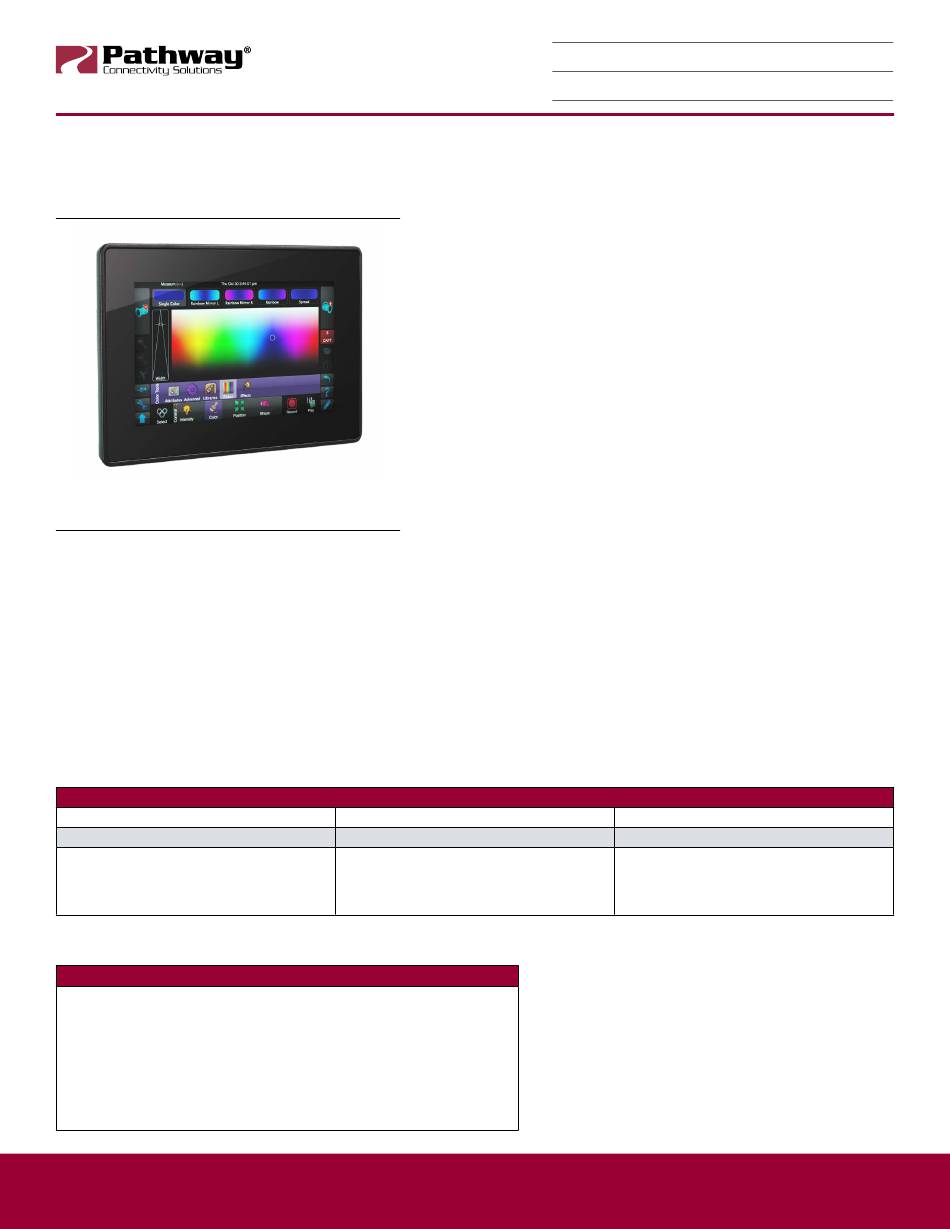

pathway PWCHOREO WM Manual

CHOREO WALL-MOUNT
ARCHITECTURAL CONTROLLER
Models shown: 1. PWCHOREO WM [xxxx]

WARRANTY

3-year limited warranty. Complete warranty terms located at:
https://www.acuitybrands.com/support/warranty
NOTE
Actual performance may differ as a result of end-user environment and
application. Specifications subject to change without notice.

ORDERING INFORMATION

PWCHOREO
PWCHOREO
Series
PWCHOREO Pathway Choreo Architectural Controller
Accessories
PWPWR DIN TERM
Power Supply, DIN-mount, Compression Fit Terminal, 50 Watts, 24 Volts DC
50W 24VDC
PWPWR DIN TERM
Power Supply, DIN-mount, Compression Fit Terminal, 100 Watts, 24 Volts DC
100W 24VDC
PWACC ADD512 Pathway Accessory, Add 512 Channels
PWACC CHORDT Pathway Accessory, Choreo Desktop Consolette
PWACC CHORRM Pathway Accessory, Choreo 4RU rack panel, with one 3-gang position
© 2022 Acuity Brands, Inc. • One Lithonia Way, Conyers GA 30012
Pathway Connectivity | #103 - 1439 17th Ave SE Calgary, AB Canada T2G 1J9
Phone: + 1 866 617 3074 www.pathwayconnect.com

OVERVIEW

™

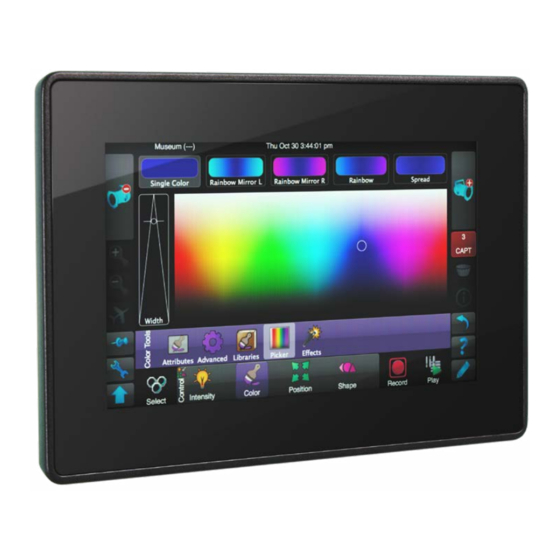

Choreo provides full-featured, stand-alone programming and playback for dynamic
DMX512 lighting systems, all in a three-gang wall box.
Choreo's natural language interface makes the selection of lights, adjustment of their
attributes, and the recording of reference libraries, memories and cues fast and simple.
1
Once programmed, use the screen as a virtual button/slider station, or use Pathway
NSB Wall Stations (PWWSI NPOE or PWWSI N485 series) to trigger memories or cues.
Other events can be triggered from the astronomical clock, DMX or Network DMX,
contact closures or the Lua API via RS232 or Telnet.

FEATURES

• Up to 2 Universes (1024 channels) of
DMX512 output directly from Choreo
• Silent, capacitive touch screen
operation
• Edit all show attributes including color,
intensity, position, and timing from the
touchscreen without a computer or
console
• Supports E1.31 sACN, Pathway ssACN,
Pathport Protocol, Art-Net and KiNET
DMX-over-Ethernet protocols
• Natural language control uses "real
world" terms and labels rather than
slot numbers and data-level values
• No hard limits on the number of
memories, cues, chases or playbacks
• Continually updated fixture library,
currently with over 3,600 commonly
available, multi-attribute lights
• Timecode-based playback and
astronomical or time clock event
triggering
• Context-sensitive Help Overlays
provide assistance without interrupting
workflow
WM
Form Factor
WM Wall-mount
CATALOG PWCHOREO WM
NUMBER
DATE
PROJECT
• USB port for updates and showfile
backup
• Support for remote VNC
• Web server for alternate method of
backup, restore and software upgrade
• Seamless file transfer with Cognito
lighting consoles over the network;
show files are compatible between
Choreo and Cognito
• Free downloable off-line editor (OLE)
for Windows and macOS
• Lua interpreter for advanced scripting
and remote triggering
• Power-over-Ethernet (PoE) operation
simplifies installation, optionally
powered by auxiliary 24VDC input
• Rack-mount adapter and Desktop
Consolette accessories available
• Also
(PWCHOREO DIN) form factor
EXAMPLE: PWCHOREO WM 1024
Model
512 512 Channels
1024 1024 Channels
PWCHOREO-WM | Rev. 01/10/22
2
2
available in DIN-mount
