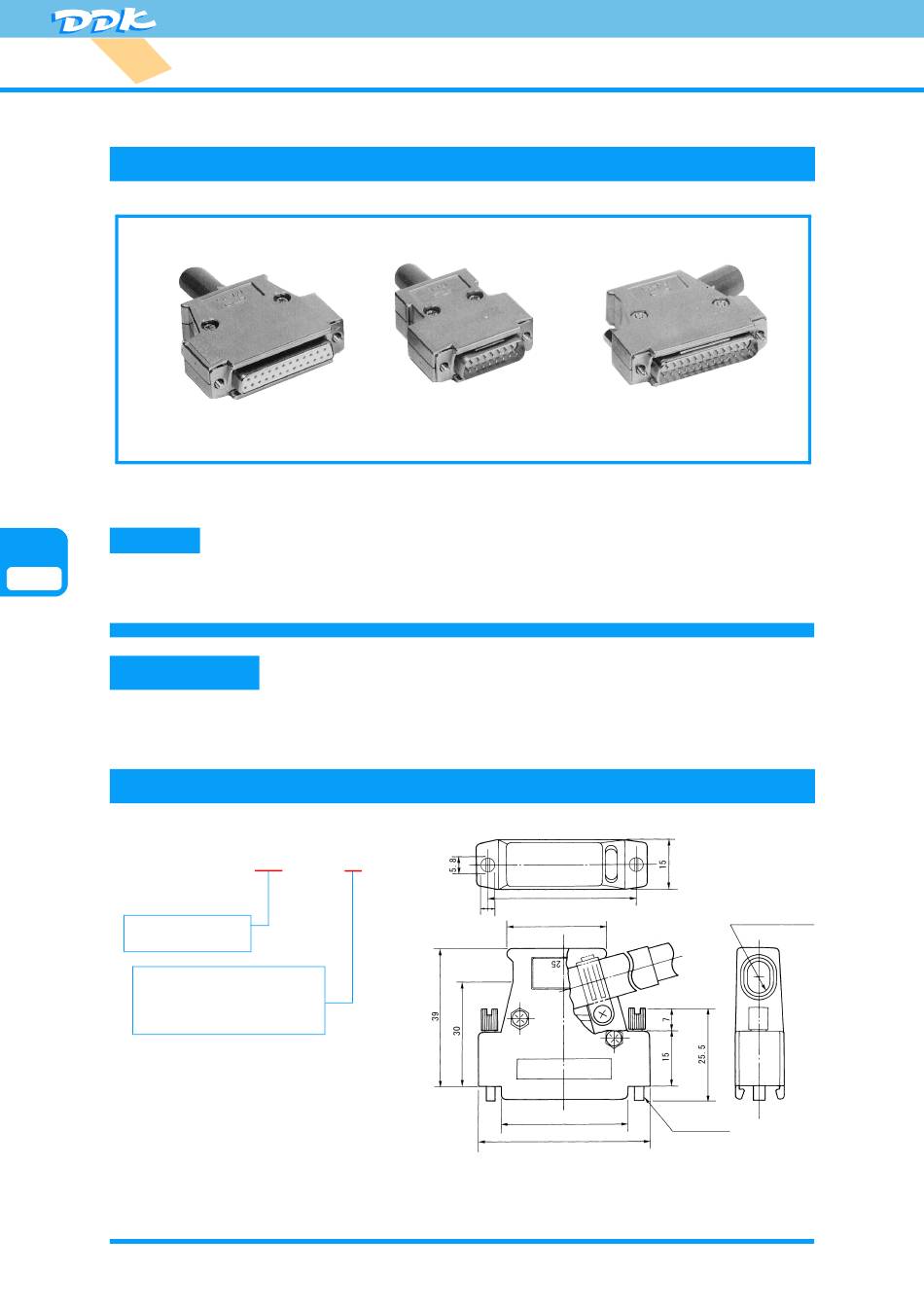

17JE Series (Hood Kit)
EMI Hood Kit
* Connectors shown in picture are not included in the product.
FEATURE
Ｇ
17JE(HoodKit)
Hood is made of plastic, so it is light and compact.
●
Plastic is Ni-plated, so it is effective against EMI..
●
MATERIAL
ABS resin (UL94V-0)/ Nickel plating.
■Right Angle Hood
17JE-25LH-1A
NO. OF CONTACTS
: 25 only
JACK SCREW
A : M2.6×0.45(Standard)
B : M3×0.5
C : ＃4-40UNC
17JE-25H-1X
17JE-15H-1X
47.04
5
31.0
40
54
Not compatible with 17DE-13250-C or 17DE-23250-C.
1
● ●
Unit : mm
17JE-25LH-1X
max. Cable φ9
Jack Screw
Advertisement
Related Manuals for DDK 17JE Series
Summary of Contents for DDK 17JE Series
- Page 1 17JE Series (Hood Kit) Unit : mm EMI Hood Kit 17JE-25LH-1X 17JE-15H-1X 17JE-25H-1X * Connectors shown in picture are not included in the product. FEATURE Ｇ 17JE(HoodKit) Hood is made of plastic, so it is light and compact. ●...
- Page 2 17JE Series (Hood Kit) Unit : mm ■Straight Hood 17JE-25H2-1A NO. OF CONTACTS JACK SCREW 09, 15, 25, 37 A : M2.6×0.45 (Standard) B : M3×0.5 C : ＃4-40UNC SHAPE OF HOOD H : Straight-type hood H2 : Straight and small-diameter cable hood max.
- Page 3 17JE Series (Hood Kit) Unit : mm ■ List of 17JE Deviations □ stands for the type of lock screw. A ： M2.6 × 0.45 B ： M3 × 0.5 C ： ＃ 4-40UNC...
- Page 4 17JE Series (Hood Kit) Unit : mm Use of Kit to Connect a Cable to Another Cable Use a connector with cable hood having a stud and another with cable hood. Stud Lock Screw Lock Screw Stud Attach stud to hood with this screw.
