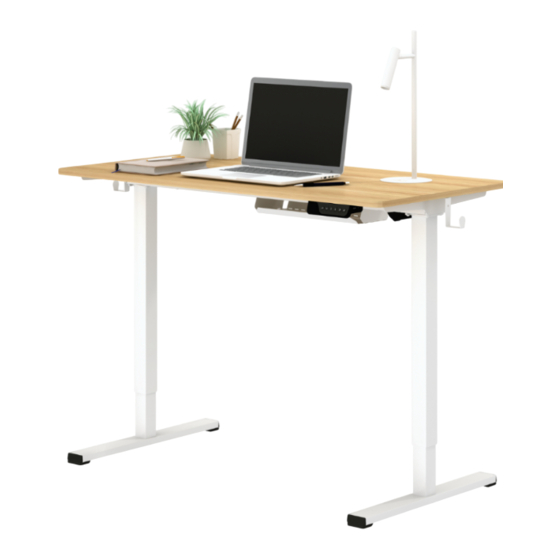

Flexispot WISE Installation Manual

Item No.: WISE
Installation guide
Technical data
Column Stage
Max. Load Capacity
Height Range 730-1210mm
Max. Load Capacity of Hook
Max. Speed
Component List
No. Part Qty No. Part
① ②
1
Tabletop Accessories Lifting columns
③ ④
2
Feet Hanging Storage Box
⑤ ⑥
2
Hooks Power Cord
⑦ ⑧
1
Handset
⑨
1
Switch Cord
Accessory list
Attention: The drawings below are for guidance only and they may
differ slightly from the product and fittings received. Please contact
our customer service department if you have any queries.
A B
x6 x4
ST4.2x13 Cable Tie
D E
x1
x8
M6x30 4x4
Self adhesive bag list
2
50kg
4.5kg/pc
25mm/s

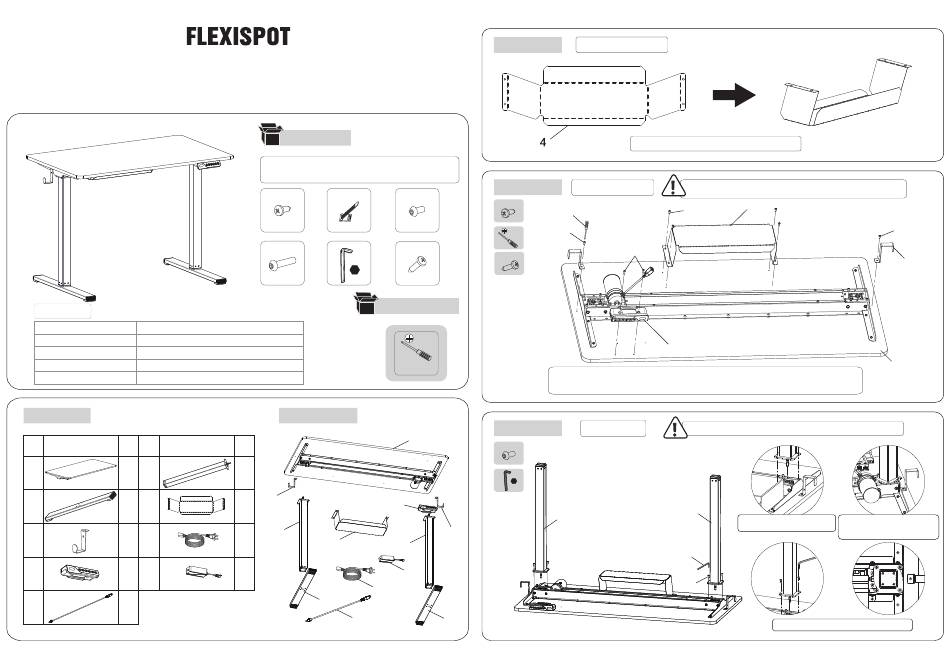

Installation Diagram
Qty
2
⑤
1
②
④
1
1
Adapter ⑥
③
⑨
STEP1
STEP2
C
x4
A x6
Phillips screwdriver
M6x12
A
x1
F
x2
F
x2
ST4.2x19
x1
Phillips
Screwdriver
Use the phillips screwdriver and ST4.2x13 screws (A) to install hanging storage box (4) and hook (5) to the
tabletop accessories (1) according to the position of the lead holes. Install the control box (7) to the tabletop
accessories (1), using phillips screwdriver and ST4.2*19 Screws F.
STEP3
①
C
x4
E x1
4x4
⑦
2
⑤
②
⑧
③
Fold the hanging storage box
Fold the hanging storage box (4) as shown in the diagram.
Note: During installation, do not place the tabletop directly to the ground on
Install tabletop accessories
avoid being scratched by sharp objects.
4
A
F
7
Install lifting columns
Rotate the column after inserting it to the bottom to avoid height difference.
2
Insert the hexagon head of the
column along the wiring trough.
E
C
A
5
1
Inserting the column and rotate it,
clamping the column slot into the
screw on the supporting beam.
Tighten eight screws (C) with 4x4 allen key (E).
