HOTO Air Pump Pocket Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

HOTO Air Pump
Pocket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Pump Pocket and is the answer not in the manual?

Questions and answers

Related Manuals for HOTO Air Pump Pocket

Summary of Contents for HOTO Air Pump Pocket

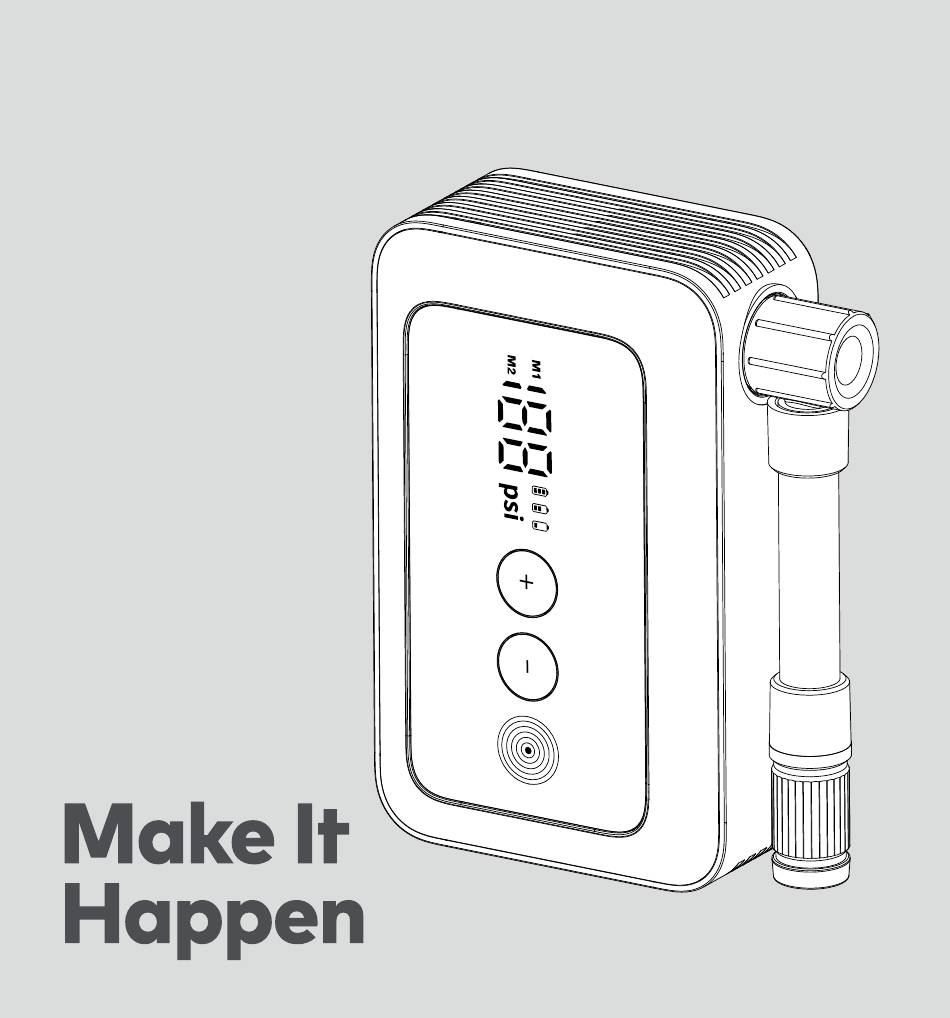

  • Page 1 HOTO Air Pump Pocket...

  • Page 3: Safety Instructions

    This product is not a toy and is not intended for use by children. 2. Product Description Thank you for using the HOTO Air Pump Pocket. HOTO Electric Air Pump can inflate some bicycles, motorcycles, cars, and balls. For a detailed list, please visit the product sales page or...
  • Page 4 Components Note: Illustrations of products, accessories, user interfaces, etc. in the user manual are schematic and are for reference only. Due to product renewal and upgrades, there may be slight differences between the actual product and the schematic diagram. Please refer to the actual product.

  • Page 5: Battery Level Indicator

    Accessories Presta Valve Needle Valve Quick Connect Charging Cable Soft rubber band Adapter Valve Adapter Adapter 3. How to Use 3.1 Battery level indicator and charging Battery level indicator: Stays on: 70%＜ battery level ≤100% Stays on: 35%＜ battery level ≤70% Stays on: 10%＜...

  • Page 6: Charging Status

    Charging Please fully charge this product before first use. Connect the Type-C charging cable to a power adapter to charge the air compressor. Charging status Flashes: Battery level ＜35% Flashes: 35%≤ battery level ＜70% Flashes: 70%≤ battery level ＜99% When the battery level is 100%, it will be off...
  • Page 7 Turning on: Switch the air tube to the light grey 30° Power On area to power the machine on. Range The machine will automatically Power Off shut down if it is not operated for 3 Range minutes after it is powered on. Hold the "Mode/Start-stop"...
  • Page 8 Schrader valve Mountain bicycles, electric bicycles, motorcycles, and cars will be equipped Inflation Valve Type with Schrader valves. Adapter Inflate: Directly connect the air compressor to a "Schrader valve" on the high-pressure air hose for inflation. Deflate: Use an appropriate tool (e.g. a 4-mm hex wrench) to press the inflation needle inside the air valve for deflation.
  • Page 9 Deflate: Connect the quick-connect valve adapter to the Schrader valve and then press the quick-connect valve for deflation. Presta valve adapter Road bicycles and certain mountain bicycles may use a Presta valve adapter Inflation Valve Type for inflation. Adapter Inflate: 1.
  • Page 10 An inflation needle is required to inflate Inflation needle balls such as basketballs and footballs. Inflation Valve Type Adapter Inflate: Screw the inflation needle onto the Schrader valve, and insert the needle into the air hole of the ball for inflation. Deflate: Insert the inflation needle into the air hole of the ball for deflation.
  • Page 11 Tires The recommended air pressure of tires for cars, bicycles, and motorcycles is indicated on the sidewall of the tire. The recommended tire pressure for cars is usually indicated on the driver's side door jamb. The inflation pressure level is related to the weight of the load. For more details concerning recommended air pressure, please refer to your vehicle's instructions or manual.
  • Page 12 Recommended inflation pressure for common products Product Recommended Product type category range of pressure 12-inch, 14-inch and 16-inch 30 - 50 psi bicycle tires 20-inch, 22-inch and 24-inch 40 - 50 psi bicycle tires Bicycles 26-inch, 27.5-inch and 29-inch 45 - 65 psi mountain bicycle tires 700c road bike clincher tires 100 - 130 psi...
  • Page 13 3.6 Presetting pressure Mode and unit switching Hold the "Mode/Start-stop" button to switch between M1 and M2 custom modes. In both custom modes, the present pressure can be freely adjusted, and values and mode can be memorized. 8psi by default Pressure range: 3 to 150psi Memorize the last working pressure before power-off.
  • Page 14 3.7 Inflating Start inflating Press the "Start/Mode" button to start inflation. During inflation, there are figures to indicate real-time pressure changes. Stop inflating Once the preset pressure is reached, the air compressor will automatically stop inflating. During inflation, press the "Start/Mode" button to stop inflating.
  • Page 15 3.9 Instructions for Using the Strap As shown in the right image, installing the soft rubber strap can better secure the inflatable hose.
  • Page 16 04. Precautions 1. This product is not a toy, and children are forbidden to use it. The minimum recommended age for users is 16 years old. During the inflation, please keep children at a safe distance from the air compressor. 2.

  • Page 17: General Power Tool Safety Warnings

    compliant charging cable to charge the product. Failure caused by charging in breach of the above requirements is not covered by the warranty. 10. After the air compressor works for a long time, the temperature of the connection between the air tube and the body rises. Do not touch it to avoid scalds. General Power Tool Safety Warnings Warning: Read all safety warnings and instructions.

  • Page 18: Electrical Safety

    Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 19 Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
  • Page 20 Power Tool Use And Care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 21 Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Battery tool use and care Recharge only with the charger specified by the manufacturer.
  • Page 22 Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. “ C ° ” 265°F” Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

  • Page 23: Battery Safety

    Battery safety Only use the battery approved by the manufacturer. Replacing with a battery of wrong type may result in failure of safety protection, causing an explosion or fire. Do not place the battery in an environment with an extremely high temperature, such as in direct sunlight, fire, microwave oven, or oven.

  • Page 24: Troubleshooting

    06. Troubleshooting Solutions Faults 1. Whether the power is sufficient 2. Check whether the Slow inflation air tube is leaking 3. Check whether the inflated object is leaking 1.Turn on the machine after it is fully charged. Failure to 2. Ensure that the inflation valve is connected properly. turn this product on 1.

  • Page 25: Basic Parameters

    07. Basic Parameters Name: HOTO Air Pump Pocket Model: QWCQA002 Size: Approx. 93x58x38 mm / 3.66x2.28x1.50 in (air pump only, excluding Soft-rubber handle) Weight: Approx. 255g /0.56 Ib Charging temperature: 5°C-40°C Operating temperature: -10°C-45°C Storage temperature: -10°C-45°C Battery type: Lithium-ion battery Battery capacity: 2000 mAh (7.2 Wh)
  • Page 26 Declaration of the noise emission values according to EN 62841 (considered uncertainty 3 dB(A)) Sound pressure level: 76.8 dB(A) Sound power level: 87.8 dB(A) Declaration of the vibration emission according to EN 62841 (considered uncertainty 1.5 m/s²): 4.33 m/s² Information: The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another;...
  • Page 27 We declare that the above mentioned device has been tested and found in compliance with CFR 47 Part 15 Regulation. Product: HOTO Air Pump Pocket Model Number(s):Product model: QWCQA002 Brand/Trade: HOTO This device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 28 Consult the dealer or an experienced radio/TV technician for help. Representative of Responsible Party for SDoC Company: HOTO (US) TECHNOLOGY CO LTD Address: 919 North Market Street, Suite 950, Wilmington DE 19801 Country: U.S.A. Customer Service(US): +1 855-577-2659...
  • Page 29 DECLAR ATION OF CONFORMITY EU Declaration of Conformity We Shanghai HOTO Technology Co., Ltd. Declare that the product: HOTO Air Pump Pocket QWCQA002 Complies with the essential health and safety requirements of the following directives: 2014/30/EU Electromagnetic Compatibility directive References to the...
  • Page 30 Disposal and recycling information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
