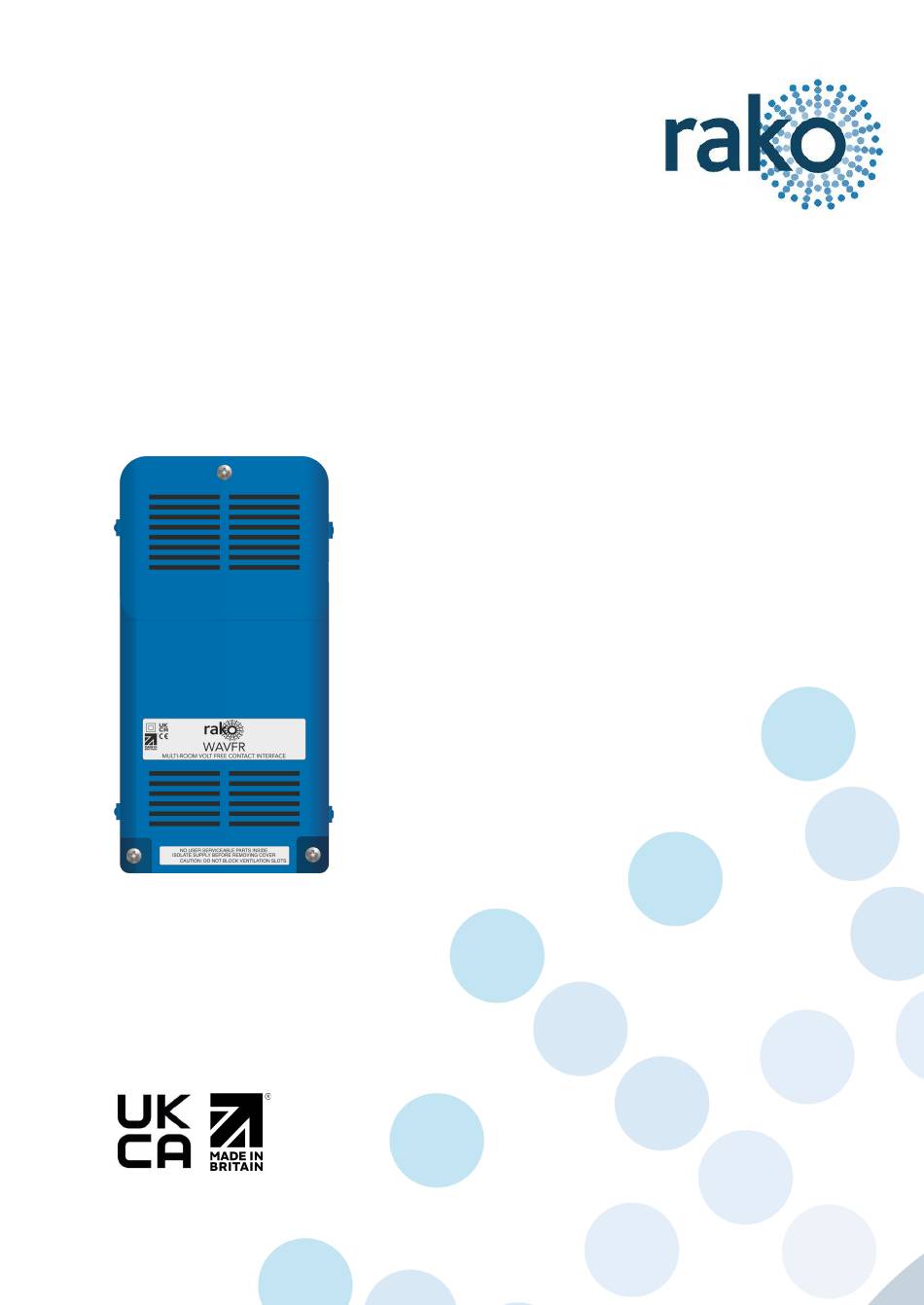

- Page 1 Instruction Manual WAVFR Wired 10-Way Volt-Free Interface 2024 Version 2.0.0...
-
Page 2: Table Of Contents
On Break = Off 2 Inputs The Rako Wired network has two connection options, either the RJ11 socket can be used with the supplied RJ11 cable, or a CAT5/CAT6 cable can be used on the daughterboard. Up to 10 volt-free inputs can be connected to the WAVFR. -
Page 3: Installation
Set the two cable clamps aside. STEP 2 Make a connection to the Rako Wired network via the RJ11 port using the supplied RJ11 cable, or by CAT5/CAT6 on the daughterboard on the top... -
Page 4: Adding The Wavfr As A Device
STEP 4 Replace the cover and replace the screws. 4 Adding the WAVFR as a device The following steps assume: A Project File has been created Rooms have been added Channels have been added... - Page 5 A Device menu will pop up, select the WAVFR and select ‘Next’ Give the WAVFR device a name and select ‘Next’ Assign a Room and Channel and select ‘Next’ WAVFR Manual Version 2.0.0...
-
Page 6: Configuring The Wavfr
Select ‘Finish’, the device is now paired and in the project file. 5 Configuring the WAVFR A WAVFR has a maximum of 24 maps that can be set. Each is programmable by selecting it in the mappings list and then editing the three sections: “Inputs”, “Mapping Options” and “Output Action”. -
Page 7: Inputs
If A is set as ‘Invert’, the ‘On Make’ and ‘On Break’ commands will reverse. 5.3 Mapping Options Once the input has been selected and configured, the behaviour of the input is set up in the Mapping Options. WAVFR Manual Version 2.0.0... - Page 8 If this box is ticked this map will not update the “last used” flag for both Room and Channel. When a “last used” is sent from this Device the most recent room and Channel sent which doesn't have “don't update previous Room” selected will be sent. WAVFR Manual Version 2.0.0...
-
Page 9: Input Action
Set Scenes only if lights are OFF: The command sent in the “output action” section is a scene that will only take effect if the lights are currently off. This is often used when the device interfacing with the WAVFR is a presence sensor. - Page 10 Do not map more than one Toggle to a single button on the inputs; this will result in sporadic switching due to toggles getting out of sync. Level Sets the lighting Level to a percentage of brightness between 0-100%. WAVFR Manual Version 2.0.0...
