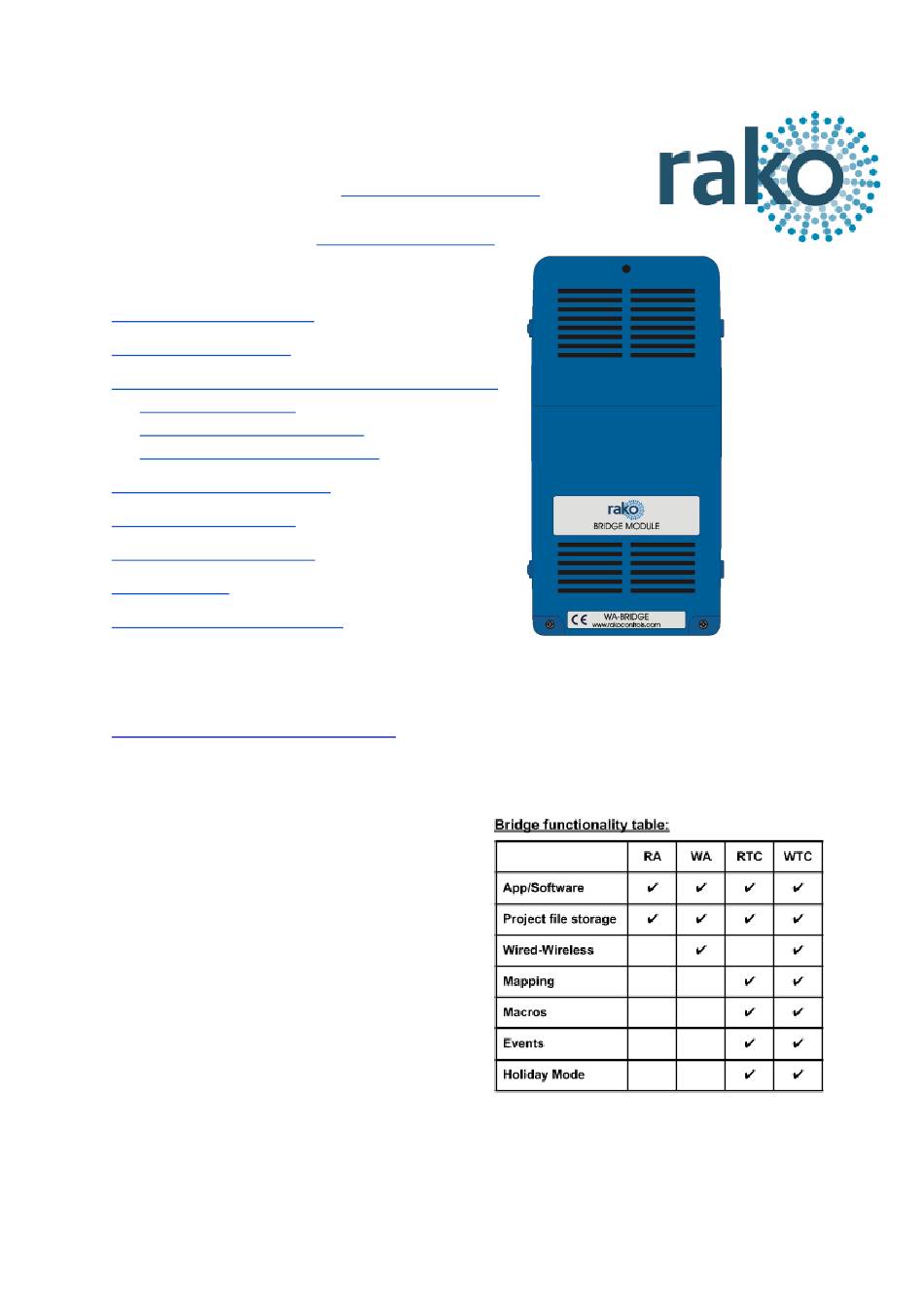

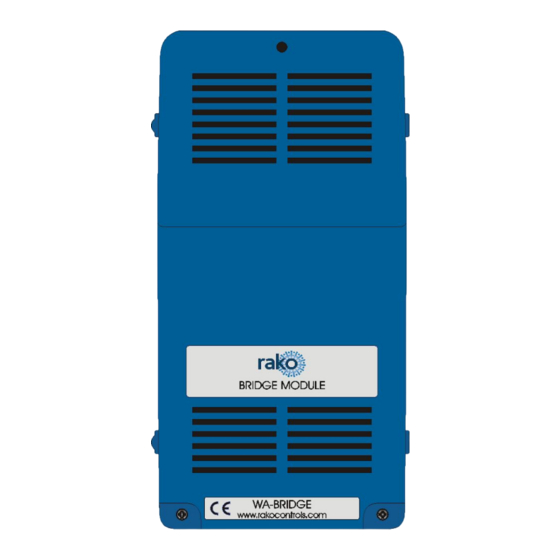

WA-Bridge User Manual
For an overview of
Bridges:
For how to use the
App:
Contents:
1 Functions of the WA-Bridge
1 Functions of the WA-Bridge
The WA-Bridge will add the following features to a Rako wired system:
-
Network interfacing: Including App.
control via mobile devices, system
programming via PC/Mac and 3rd Party
integration over IP.
-
Storing Project file information:
Room, Channel and Scene information
can be uploaded to, stored on, and
downloaded from the Bridge.
Wired-Wireless Interface: The
-
WA-Bridge functions as an interface
between wireless signals and the wired
network.
" Bridge Application Sheet"
" Rako App User Guide"
