Shelly Plus RGBW PM
Device image
Device identification
Device name: Shelly Plus RGBW PM
Device model: SNDC-0D4P10WW
Device SSID: ShellyPlusRGBWPM-XXXXXXXXXXXX
Device Bluetooth ID: 0x1009
Short description

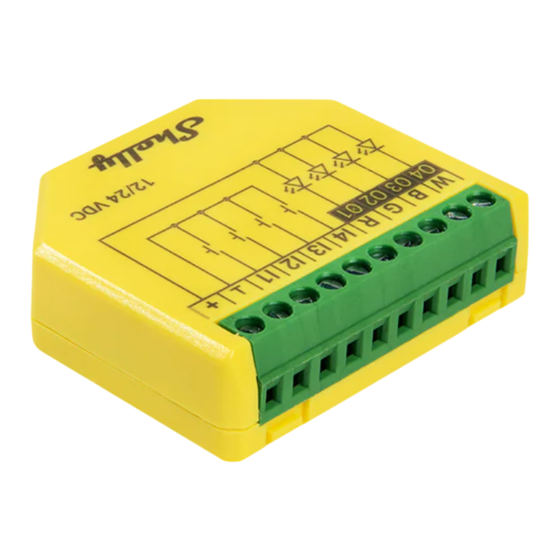

Shelly Plus RGBW PM is a Wi-Fi/Bluetooth-operated RGBW controller. It can be connected like
any LED controller and allows the lighting to be controlled directly from a mobile device or tablet.
It supports 3 profiles - RGBW, RGB and Lights x 4. In the Lights x 4 profile, different led strips
(groups of lights) can be controlled independently. Power measurement functionality allows real
time track of the voltage, current and power consumption.
https://kb.shelly.cloud/knowledge-base/shelly-plus-rgbw-pm#ShellyPlusRGBWPM-Deviceimage
/
Shelly Plus devices
Shelly Plus RGBW PM
1/11
Advertisement
Table of Contents
Related Manuals for Shelly Plus RGBW PM
Summary of Contents for Shelly Plus RGBW PM
- Page 1 Device Bluetooth ID: 0x1009 Short description Shelly Plus RGBW PM is a Wi-Fi/Bluetooth-operated RGBW controller. It can be connected like any LED controller and allows the lighting to be controlled directly from a mobile device or tablet. It supports 3 profiles - RGBW, RGB and Lights x 4. In the Lights x 4 profile, different led strips (groups of lights) can be controlled independently.
-
Page 2: Main Features
flip value of the dimming signal. Shelly Plus Add-On compatible: The Device supports connection with the sensor interface to the Shelly Plus devices. Auto on/off timers: Enables auto on/off timer setting. - Page 3 07/06/2024, 09:31 Shelly Plus RGBW PM Power monitoring: Monitor power consumption of all connected lights in real-time. This is useful for understanding energy usage patterns and promoting energy efficiency. Space-efficient retrofitting: Install one of the smallest devices on the market into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.
- Page 4 07/06/2024, 09:31 Shelly Plus RGBW PM Brightness Samsung SmartThings supported capabilities Color Control Simplified internal schematics Device electrical interfaces Inputs 4 switch/button inputs on screw terminals: I1 and I4 2 power supply inputs on screw terminals: (+) and ( ) Outputs 4 outputs on screw terminals: O1, O2, O3 and O4.
-
Page 5: Safety Function
07/06/2024, 09:31 Shelly Plus RGBW PM Bluetooth Safety function Overheating protection Overcurrent protection Supported load types 12/24 V mono-color LED strips 12/24 V RGB LED strips 12/24 V RGBW LED strips User interface Inputs One (Control) button Press and hold for 5 seconds to enable Device access point and Bluetooth connection. -
Page 6: Specifications
07/06/2024, 09:31 Shelly Plus RGBW PM Cloud is enabled, but not connected: 1 second ON /5 seconds OFF Connected to Shelly Cloud: Constantly ON OTA (Over the Air Update): ½ sec ON / ½ second OFF Button pressed and held for 5 seconds: ½... - Page 7 07/06/2024, 09:31 Shelly Plus RGBW PM Shell color: Yellow Connectors color: Green Environmental Ambient working -20 °C to 40 °C / -5 °F to 105 °F temperature: Humidity: 30 % to 70 % RH Electrical Power supply: 12/24 VDC Power consumption: <...
- Page 8 07/06/2024, 09:31 Shelly Plus RGBW PM Internal-temperature sensor: Radio Wi-Fi Protocol: 802.11 b/g/n RF band: 2401 - 2495 МHz Max. RF power: < 20 dBm Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors...
-
Page 9: Basic Wiring Diagrams
07/06/2024, 09:31 Shelly Plus RGBW PM Webhooks (URL actions): 20 with 5 URLs per hook Scripting: MQTT: Scripting: Basic wiring diagrams Wiring in Lights x 4 mode Wiring in RGBW mode Wiring in RGB mode Legend Terminals Wires 12/24 VDC positive terminal Positive wire https://kb.shelly.cloud/knowledge-base/shelly-plus-rgbw-pm#ShellyPlusRGBWPM-Deviceimage... -
Page 10: Troubleshooting
… Components and APIs This device All Shelly devices and services Compliance and certification Shelly Plus RGBW PM multilingual EU declaration of conformity.pdf Printed user guide Shelly Plus RGBW PM multilingual printed user and safety guide.pdf Installation guides https://kb.shelly.cloud/knowledge-base/shelly-plus-rgbw-pm#ShellyPlusRGBWPM-Deviceimage 10/11... - Page 11 07/06/2024, 09:31 Shelly Plus RGBW PM Privacy policy / Cookie policy / Support / FB community support / Contact us Copyright © 2024 Shelly Cloud. Allterco Robotics OOD • Powered by Scroll Viewport & Atlassian Confluence • Reset cookie settings https://kb.shelly.cloud/knowledge-base/shelly-plus-rgbw-pm#ShellyPlusRGBWPM-Deviceimage...
