Kohler EXHALE 98349T Installation Instructions

INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.

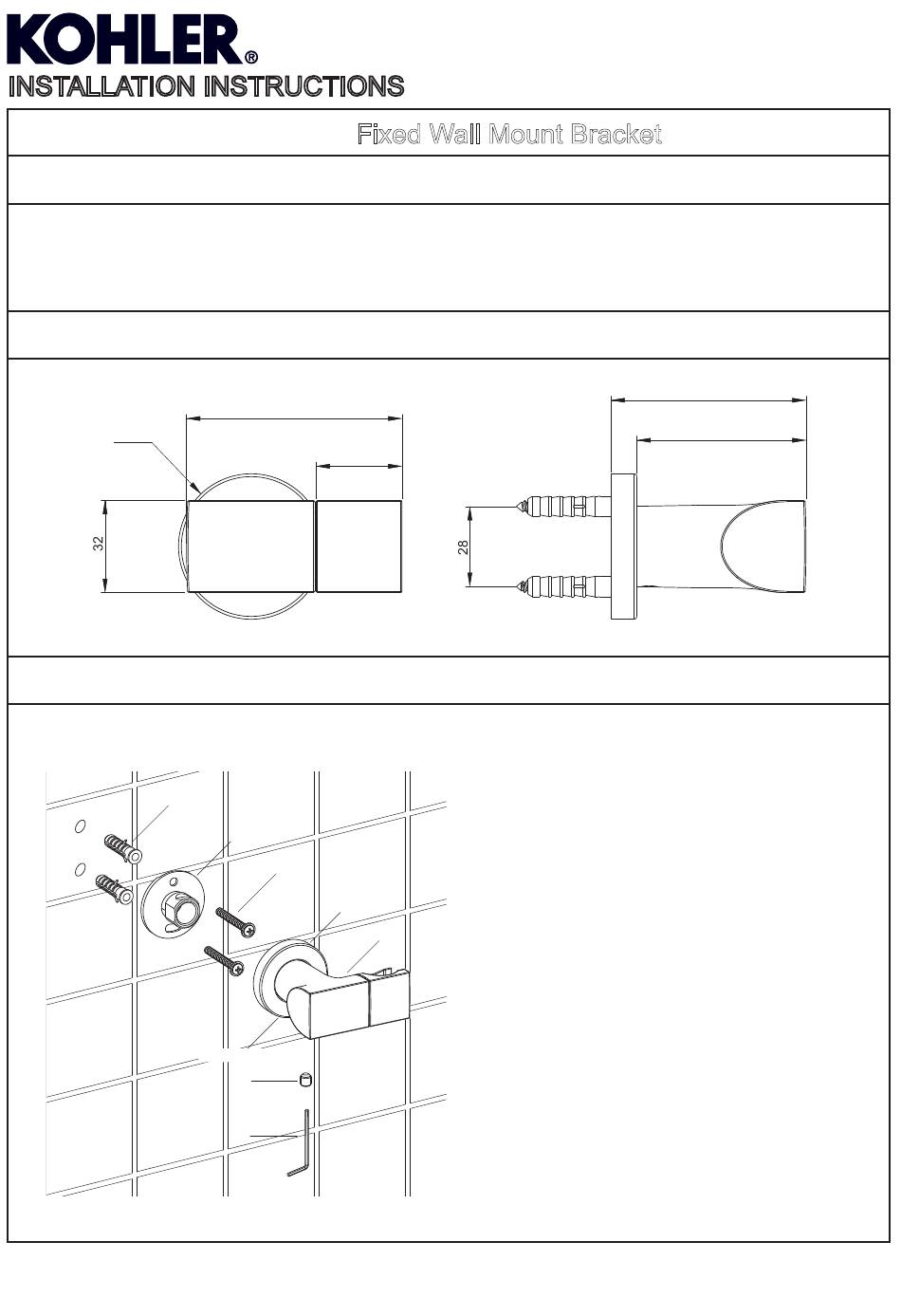

ROUGH-IN DIMENSIONS
Ø51
INSTALLATION
1
1248487-2A-C
98349T Fixed Wall Mount Bracket
75
30
2
3
7
Drain notch
5
6
98349T
How to Install the Bracket
Determine a suitable location on the finished wall
to install the bracket, make sure it should avoid
buried cables and pipes in the wall.
Mark bracket base(2) mounting holes locations
on the wall according to the dimension. Drill two
holes in the finished wall, the holes should match
the anchors(1) and be vertically. Install the
anchors. Tighten screws(3) to fix bracket base on
4
the finished wall. NOTE: The bracket base
direction as shown.
Loosen the screw(5) in the bottom of the
bracket(4) with the hex wrench(6), make the
bracket can be installed. Slide th escutcheon(7)
onto the bracket. Apply a ring of plumber putty or
other sealants around the underside of the
escutcheon. Move the bracket onto the bracket
base until against the finished wall and confirm
the drain notch and the screw hole are pointed
down. Tighten them by screw and hex wrench.
Remove any excess putty or sealant.
EXHALE
68
59
