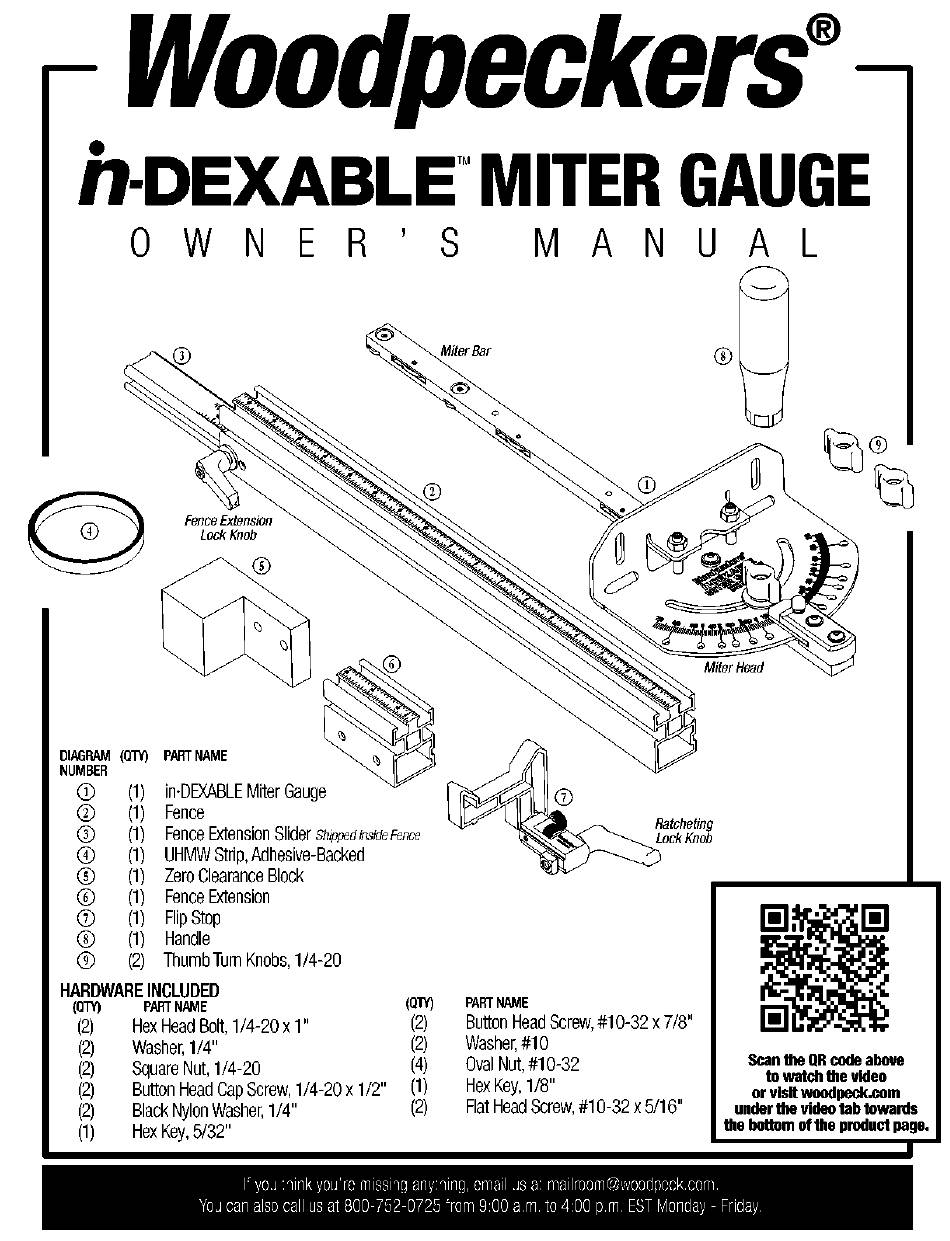

Woodpeckers in-DEXABLE Miter Gauge Owner's Manual

oodpeckers
n -DEXABLE MITER GAUGE
WNER ' S MANUAL
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRAM
NUMBER
(QTY) PART NAME
1
(1) in·DEXABLE Miter Gauge
2
(1) Fence
3
(1) Fence Extension Slider
hipped inside Fence
4
(1) UHMW Strip, Adhesive-Backed
5
(1) Zero Clearance Block
6
(1) Fence Extension
7
(1) Flip Stop
8
(1) Handle
9 (2) Thumb Turn Knobs, 1/4-20
(QTY) PART NAME
(2) Hex Head Bolt, 1/4-20 x 1"
(2) Washer, 1/4"
(2) Square Nut, 1/4-20
(2) Button Head Cap Screw, 1/4-20 x 1/2"
(2) Black Nylon Washer, 1/4"
(1) Hex Key, 5/32"
(QTY) PART NAME
(2) Button Head Screw, #10-32 x 7/8"
(2) Washer, #10
(4) val Nut, #10-32
(1) Hex Key, 1/8"
(2) Flat Head Screw, #10-32 x 5/16"
HARDWARE INCLUDED
