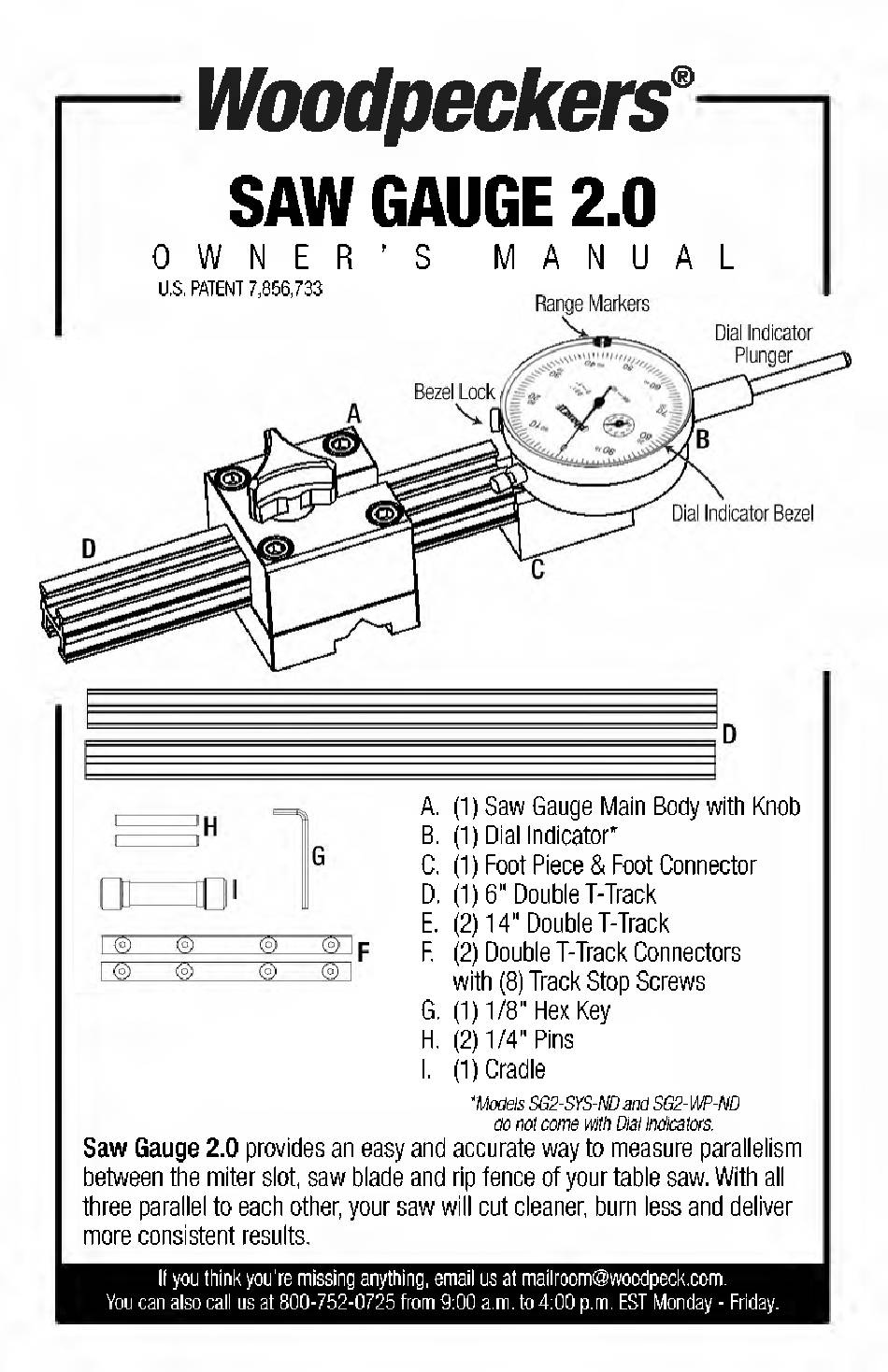

Woodpeckers SAW GAUGE 2.0 Owner's Manual

oodpeckers "
AW GAUGE 2.0
OWNER ' MANUAL
U. . PATENT 7,856,733
A. (1) aw Gauge Main Body with Knob
B. (1) Dial Indicator*
C. (1) Foot Piece & Foot Connector
D. (1) 6" Double T-Track
E. (2) 14" Double T-Track
F. (2) Double T-Track Connectors
with (8) Track top crews
G. (1) 1/8" Hex Key
H. (2) 1/4" Pins
I. (1) Cradle
Models SG2-SYS-ND and SG2-WP-ND
do not come with Dial Indicators.
aw Gauge 2.0 provides an easy and accurate way to measure parallelism
between the miter slot, saw blade and rip fence of your table saw. With all
three parallel to each other, your saw will cut cleaner, burn less and deliver
more consistent results.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. E T Monday - Friday.
