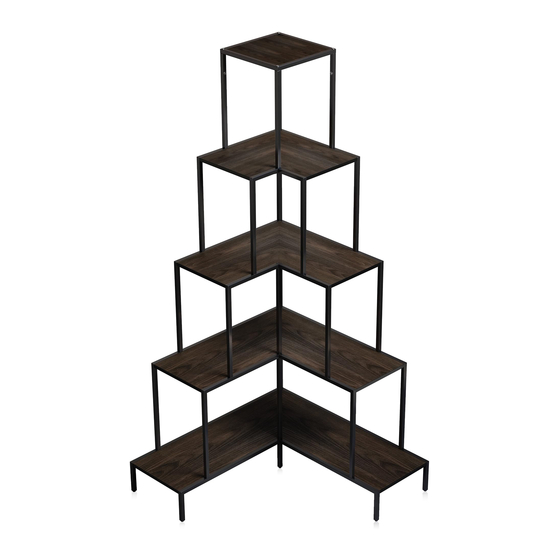

Eden Corner Bookshelf
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-44806
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eden Corner Bookshelf 014-HG-44806 and is the answer not in the manual?

Questions and answers

Related Manuals for Belleze Eden Corner Bookshelf 014-HG-44806

Summary of Contents for Belleze Eden Corner Bookshelf 014-HG-44806

  • Page 1 Eden Corner Bookshelf FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-44806 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
  • Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 90 mins Weight limitations are as follows: This Layer Maximum Load 50 lb This Layer Maximum Load 50 lb This Layer Maximum Load 70 lb This Layer Maximum Load 70 lb This Layer Maximum Load 70 lb...
  • Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.

  • Page 4: Package Contents

    PACKAGE CONTENTS...
  • Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Tier Storage Panel 4th Tier Left Storage Panel 4th Tier Right Storage Panel 3rd Tier Left Storage Panel 3rd Tier Right Storage Panel 2nd Tier Left Storage Panel 2nd Tier Right Storage Panel Bottom Tier Left Storage Panel Bottom Tier RIght Storage Panel Top Tier Support Frame Top Tier Support Frame...
  • Page 6 PACKAGE CONTENTS 23x + 2x 48x + 4x 14x + 3x 14x + 3x 14x + 3x Install all hardware perpendicular to the opening.
  • Page 7 Required tools for assembly (Not included) Assemble top tier support frame (10, 11, 12) underneath the top tier storage panel (1). NOTE: Beware of the opening holes orientation on each supports.
  • Page 8 Assemble the 4th tier front support frame (15, 16) underneath the top tier frame. Assemble the 4th tier left rear support frame (13) to the 4th tier right rear support frame (14).
  • Page 9 Assemble the 4th tier rear support frame under the top tier support frame. Further secure the 4th tier rear support frame to the top tier support frame.
  • Page 10 Assemble 4th tier storage panels (2, 3) on top of the 4th tier support frame. Assemble the 3rd tier left front support frame (19) to the 3rd tier right front support frame (20). Note: The screw head needs to be hidden in the iron pipe.
  • Page 11 Assemble 3rd tier left rear support frame (17) to the 3rd tier right rear support frame (18). Assemble the 3rd tier front support frame under the 4th tier support frame.
  • Page 12 Assemble the 3rd tier rear support frame under the 4th tier support frame. Further secure the 3rd tier rear support frame to the 4th tier support frame.
  • Page 13 Assemble 3rd tier storage panels (4, 5) on top of the 3rd tier support frame. Assemble the 2nd tier left front support frame (22) to the 2nd tier right front support frame (23). Note: The screw head needs to be hidden in the iron pipe. v.04282023...
  • Page 14 Assemble the 2nd tier left rear support frame (21) to the 2nd tier right rear support frame (24). Assemble the 2nd tier front support frame under the 3rd tier support frame.
  • Page 15 Assemble the 2nd tier rear support frame under the 3rd tier support frame.
  • Page 16 Further secure the 2nd tier support frame in place.
  • Page 17 Assemble the 2nd tier storage panels (6, 7) on top of the 2nd tier support frame. Assemble the bottom tier left front support frame (27) to the bottom tier right front support frame (28). Note: The screw head needs to be hidden in the iron pipe. v.04282023...
  • Page 18 Assemble the bottom tier left rear support frame (25) to the bottom tier right rear support frame (26). Assemble the bottom tier front support frame under the 2nd tier support frame.
  • Page 19 Assemble the bottom tier rear support frame under the 2nd tier support frame.
  • Page 20 Further secure the bottom tier support frame in place.
  • Page 21 Assemble the bottom tier storage panels (8, 9) on top of the bottom tier support frame. Attach feet levelers underneath the shelf. Adjustable foot pads, Keeps stable on uneven oors v.04282023...
  • Page 22 Reinforce the left and right storage panels with connection plates. Insert light strip from the top storage panel into the shelf. Use the tshortes light in the top shelf...
  • Page 23 Attach light strips under the storage panels. Use the second short Use the third long （ light in second shelf ） （ light in the third shelf ） Use the longest （ light in the fourth shelf ） The light strip is self-adhesive and needs to be attached next to the clip guide hole Note:Refer to Step 29 to determine the position for installing the light strips,then paste the light strips.
  • Page 24 Secure the light strips under the storage panels.
  • Page 25 place the cable through the cable management clips.
  • Page 26 Attach cable management clips to the side of the shelf.
  • Page 27 Connect all the light strips to a central cable.
  • Page 28 Connect light strips center cable to the power cable.
  • Page 29 device to prevent the furniture from tipping over. • Mark drill positions on the wall with a pencil. • Drill a small hole on the marked position. • Insert wall anchors into the drilled holes. • Zip tie the rack to the anti-tipping devices. YOU’RE FINISHED!
  • Page 30 FLASH7 STROBE7 FLASH16 STROBE16 RF Remote Controller Please refer to the remote control manual for detailed instructions.
  • Page 31 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
  • Page 32 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
  • Page 33 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE.

  • Page 34: Warranty

    WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
