DMTech D9000A MCP Instruction Manual

General Description

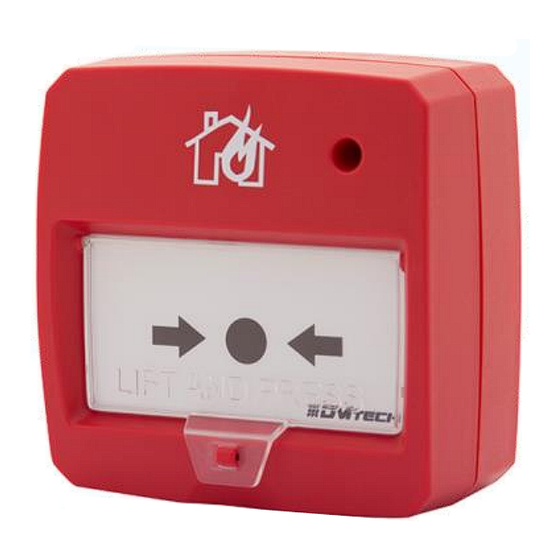

The D9000A MCP
is a manual addressable fire detector designed for use in addressable fire alarm systems that support the DMTech
communication protocol. The D9000A MCP has a built-in isolator module that, when used, ensures continuous circuit operation in the event of
a short circuit and without the need for an additional isolator module. The fire detector receives power from the addressable panel and can be
controlled by the communication protocol.
Technical data

Manual call point for wall mounting.

DMTech protocol

Certified according EN 54-11:2001/A1:2005 type А and
EN54-17:2005/AC:2007

LED indication

Built-in isolator

Operating element - unbreakable (recoverable)

Protective plastic cover

Supply voltage from panel FP9000А

Consumption
- current consumption in Duty mode
- current consumption in, with communication

Connecting wires

Operating temperature

Resistance to relative humidity

Degree of protection

Weight

Sizes

Material (plastic)- ABS

Color - red
Operation principle
In standby mode the operating element of the manual button is in the middle position and its LED does not illuminate. When the
work item is pressed, it moves down, a colored bar appears at the top, the fire detector enters Alarm mode and its LED lights up.
Restoring the fire detector in standby mode is done with the key - its long part is inserted into the test hole (on the bottom of the fire
detector) and pressed up until the operating element returns to the middle (neutral) position - a click is heard.
Mounting of the manual button
Caution: Turn off the circuit voltage before installing the fire detector!
1. Using the key located on the mounting hole at the bottom of the fire detector, separate the two parts of the detector.
2. Mount the base to the wall, positioning the cable ducts up and left to right. If necessary, break the plug to the cable duct to run the
cables.

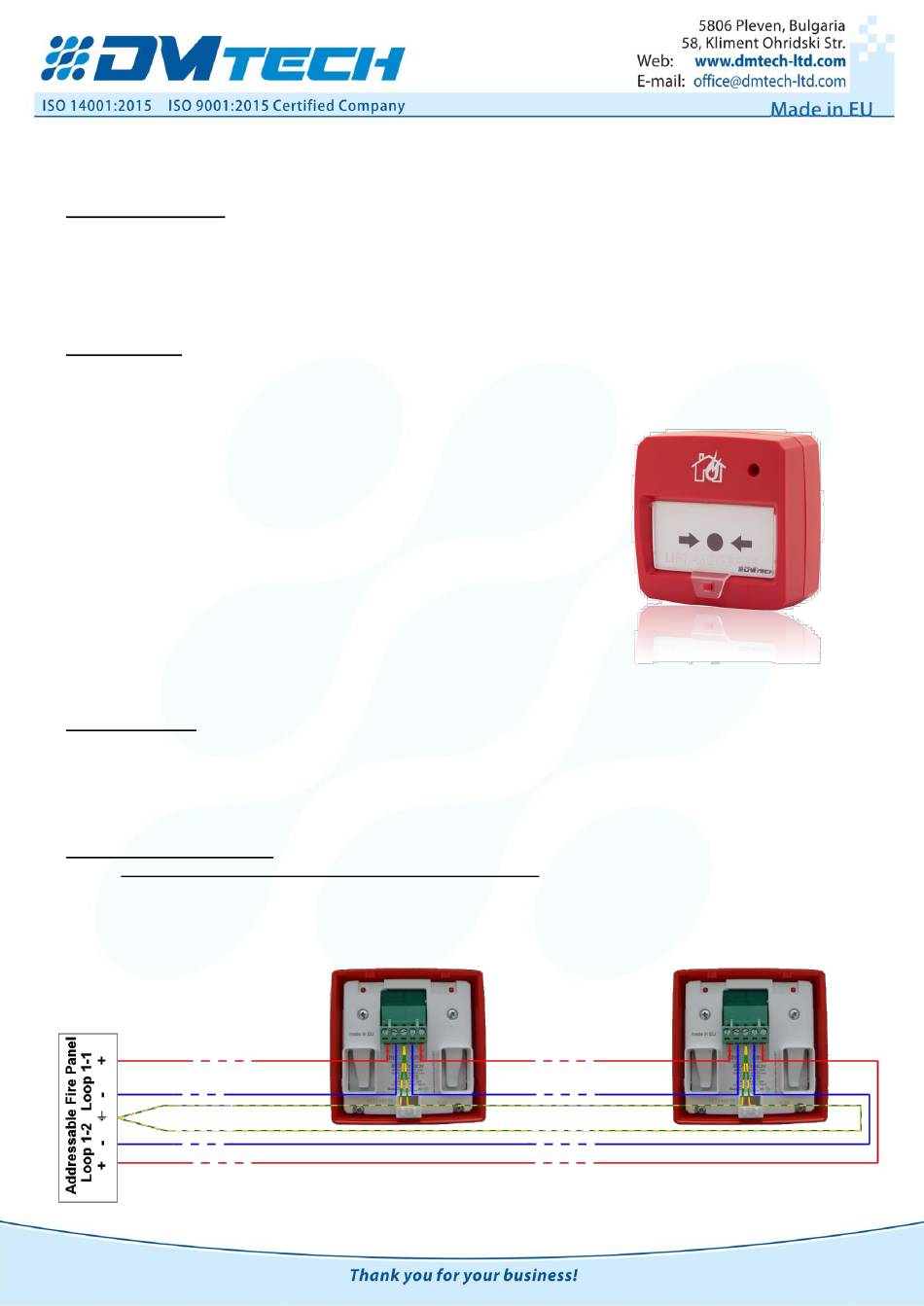

3. Remove the terminal and connect the cables to the corresponding feathers in the wiring diagram (Fig. 1).
Instruction Manual
D9000A MCP
15-30 V DC
< 500μA/28 V DC
2.0mA
0.5mm² - 2.0mm²
-10°C up to +65°C
(93 ± 3)% at 40°C
IP40
~90g
90x45mm
Fig. 1
