BubblyNet S-OD-C Installation Instructions

the future of smart building

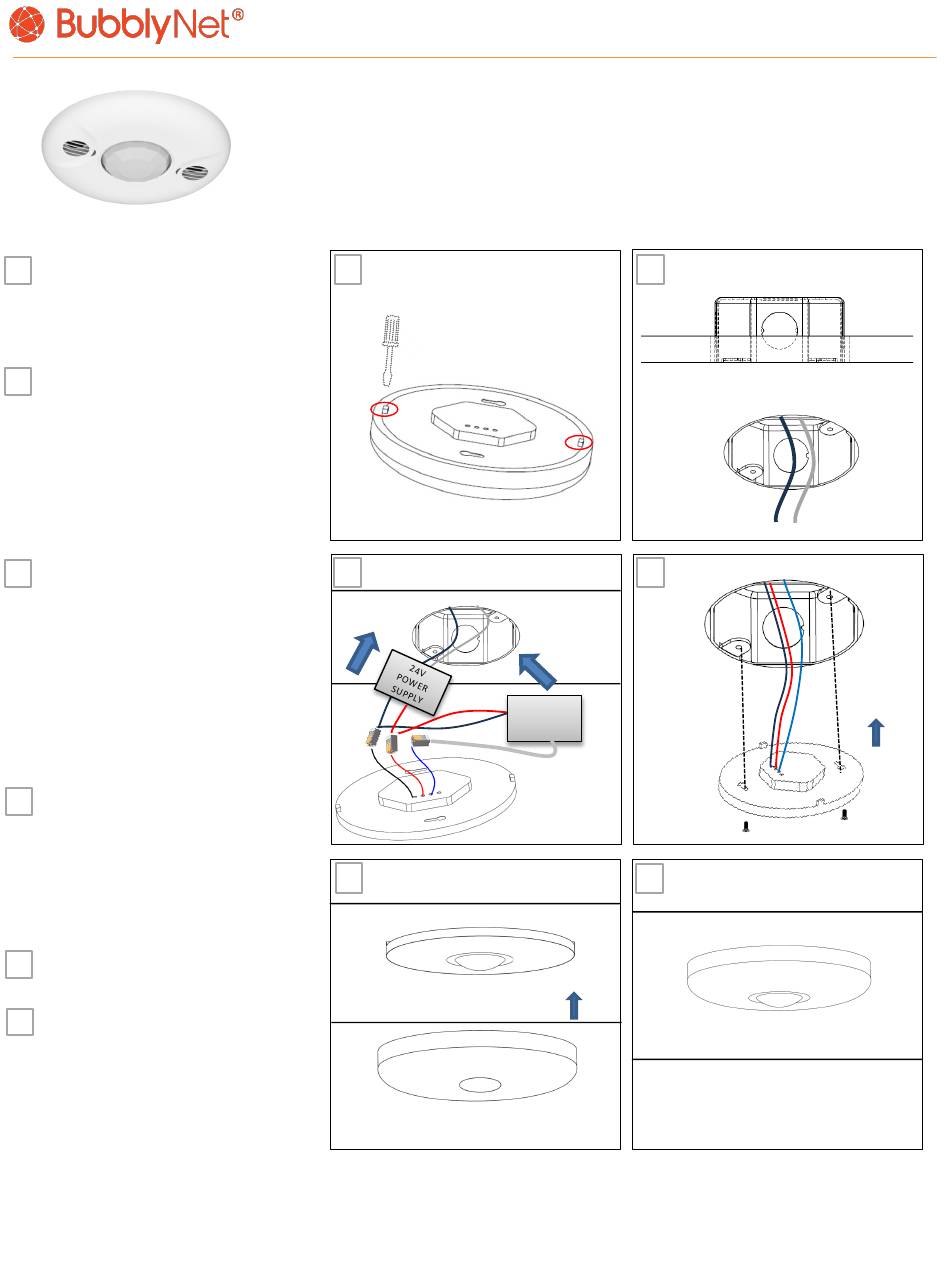

3. PREPARE THE DEVICE: USE A
1
FLATHEAD SCREWDRIVER TO
REMOVE THE COVER OF THE DUAL
TECH CEILING MOUNTED
OCCUPANMCY SENSOR.
4. CONNECT POWER SUPPLY: 24V
2
POWER SUPPLY SHOULD BE AS
PER WIRING DIAGRAM.
3. WIRING CONNECTIONS: CONNECT
3
THE OUTPUT OF THE 24V POWER
SUPPLY TO THE SENSOR
CONTROLLER AND THE DUAL TECH
CEILING MOUNTED OCCUPANCY
SENSOR. (REFER TO THE WIRING
DIAGRAM ON PAGE 2 FOR
DETAILED WIRING INSTRUCTIONS.)
ONCE THE SENSOR IS POWERED, A
RED LED UNDER THE SENSOR
LENS WILL TURN ON. INSERT THE
SENSOR CONTROL IN THE J-BOX.
4. MOUNT THE DEVICE: ALIGN THE
4
TWO KEY-SHAPED HOLES OF THE
SENSOR WITH THOSE ON THE J-
BOX AND SECURE THE DEVICE TO
THE CEILING. MAKE SURE ALL THE
WIRES ARE INSIDE THE J-BOX.
5 5. REPLACE THE COVER: REATTACH
THE SENSOR COVER.
6. 6 TURN THE POWER ON AND CHECK
THE SENSOR
BubblyNet, 615 Drew St. Clearwater, FL 33755.
The manufacturer reserves the right to change or modify the design, dimensions and specifications at any time without notice. The manufacturer accepts no liability for
DUAL TECH CEILING MOUNTED OCCUPANCY SENSOR (S-OD-C)
READ ALL THESE INSTRUCTION BEFORE INSTALLING
WARNING - RISK OF FIRE AND ELECTRICAL SHOCK. ALL ELECTRICAL DEVICES MUST
BE INSTALLED BY A QUALIFIED ELECTRICIAN ONLY. INSTALLATION MUST COMPLY
WITH THE NATIONAL ELECTRICAL CODE, AS WELL AS LOCAL AND FEDERAL
REGULATIONS. ALWAYS DISCONNECT POWER AT THE ELECTRICAL PANEL BEFORE
SERVICING. IMPROPER CONNECTION OR USE OF DEVICES CAN RESULT IN
PERMANENT DAMAGE AND WILL VOID THE PRODUCT WARRANTY.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
1
3
5
•
Ph 727.316.5319
consequential damage which is occasioned to the user based on the data provided.
INSTALLATION INSTRUCTION
2
DRY WALL
4
SENSOR
CONTROL
6
• Fx 727.683.9720 •
www.bubblynet.com
J-BOX
REV 240829
PAGE 1
