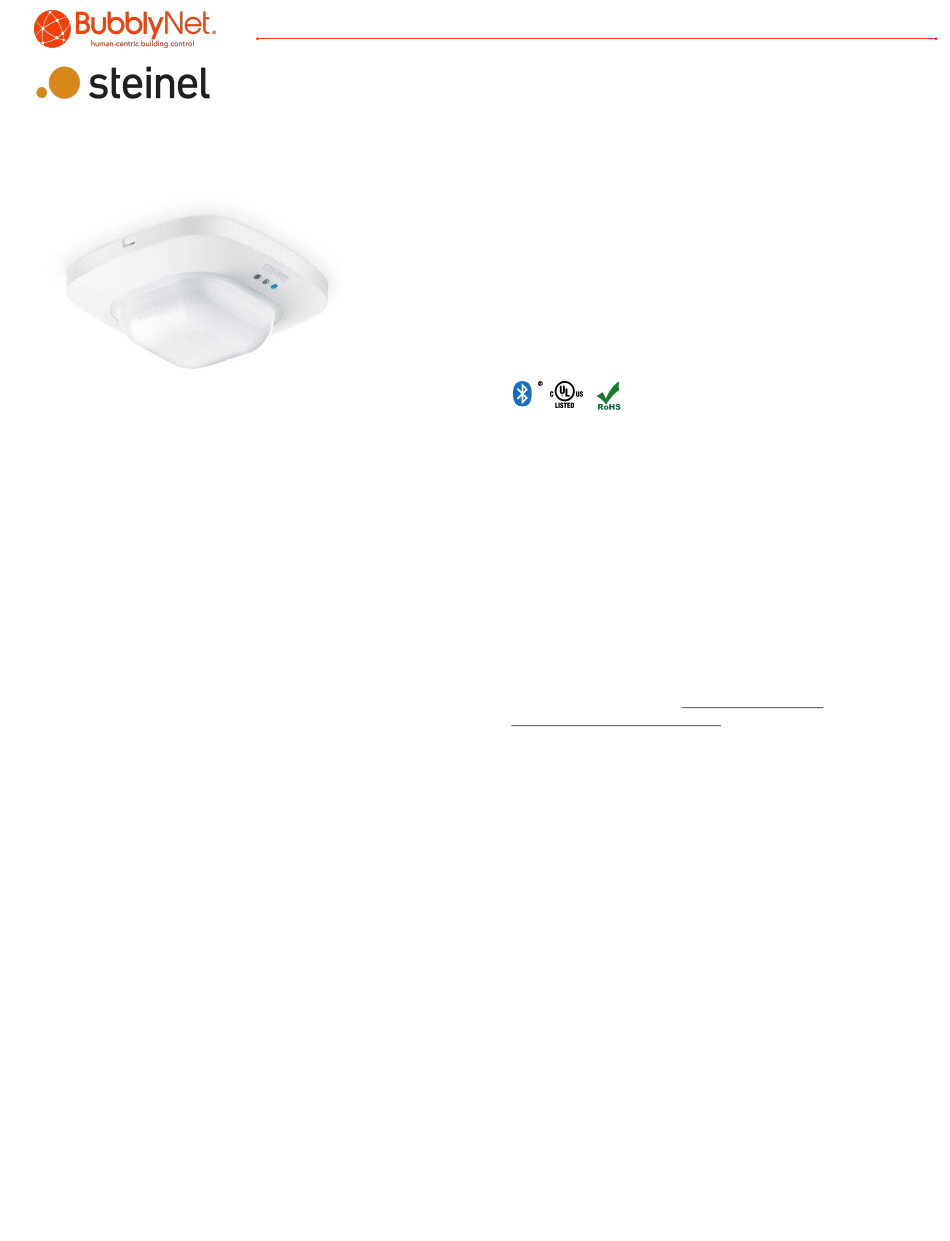

BubblyNet steinel S-HT-C12-DRWH Manual

High Definition IR Motion Sensor | Model: S-HT-C12-DRWH
Specification
Voltage - 24 VDC/VAC (32 mA)
•
• Sensing technology - Passive Infared (PIR)
Light Level Setting - 10 - 1000 lux / 1 - 100 fc
•
• Environment- IP20 rated, 0°C to +40°C, 32°F to +104°F
Installation Height - 2.5- 10 m / 8 - 32 ft
•
Coverage at 9 ft
•
360° square mechanically scalable detection zones
presence: max. 7.9 x 7.9 m (62.41 sq.m.)
max. 25.5 x 25.5 ft (650.25 sq. ft.)
radially: max. 7.9 x 7.9 m (62.41 sq. m.)
max. 25.5 x 25.5 ft (650.25 sq. ft.)
tangentially: max. 20 x 20 m (400.0 sq. m.)
max. 65.5 x 65.5 ft (4,290.25 sq. ft.)
Sensors - 4 Infrared Pyroelectric Detectors
•
Lens Design - 13 Detection Levels, 4800 Switching Zones
•
Dimensions - 4.72 x 4.72 x 2.83 in, 120 x 120 x 72 mm (LxWxD)
•
Warranty - 5 Years
•
*results my vary based on mounting height, temperature, angle,
floor material, and line of sight.
Description
The S-HT-C12-DRWH is a low voltage, high definition, passive
infrared presence detector setting a new standard in lighting
control with minimal movement required for human presence
detection. Features four pyroelectric detectors with a high
performance lens system that creates a new global standard in
detection with 4,800 switching zones.
BubblyNet - 615 Drew St., Clearwater, FL 33755
and specifications at any time without notice. The manufacturer accepts no liability for consequential damage which is occasioned to the user based on the data provided.
• Ph 727.316.5319 • Fx 727.683.9720 •
Features
Passive Infrared (PIR) Sensor
•
Bluetooth Mesh Qualified
•
LED Motion Indicator
•
Suitable for Indoor Use Only
•
Program Occupancy / Vacancy
•
360° Coverage Pattern
•
Certifications
Installation
For best results, the Corridor - One Way Motion Sensor
needs to be installed within 30 feet of the closest device
within the Bluetooth Mesh network. 24VDC power
needs to be supplied to the sensor from others, the
auxiliary DC output of a BubblyNet Controller or one
BubblyNet A-T03-12-17-DS00 3w AC/DC
Transformer, neither included.
Connectivity
Devices are repeaters for other devices and should be installed
within a certain maximum distance from each other.
Typical maximum distance: Outdoor (line of sight):
Indoor (through building material):
Glass:
Drywall:
Cinderblock:
Brick:
Concrete + rebar
Devices with external antenna should have the antenna outside
any metal box and away from metal surfaces as metal reduces
connectivity.
For design purposes a 60ft. maximum distance is appropriate for
most installations.
The manufacturer reserves the right to change or modify the design, dimensions
bubblynet.com
727.316.5319
•
11.2.2023
200ft
100ft
70ft
60ft
50ft
0ft
