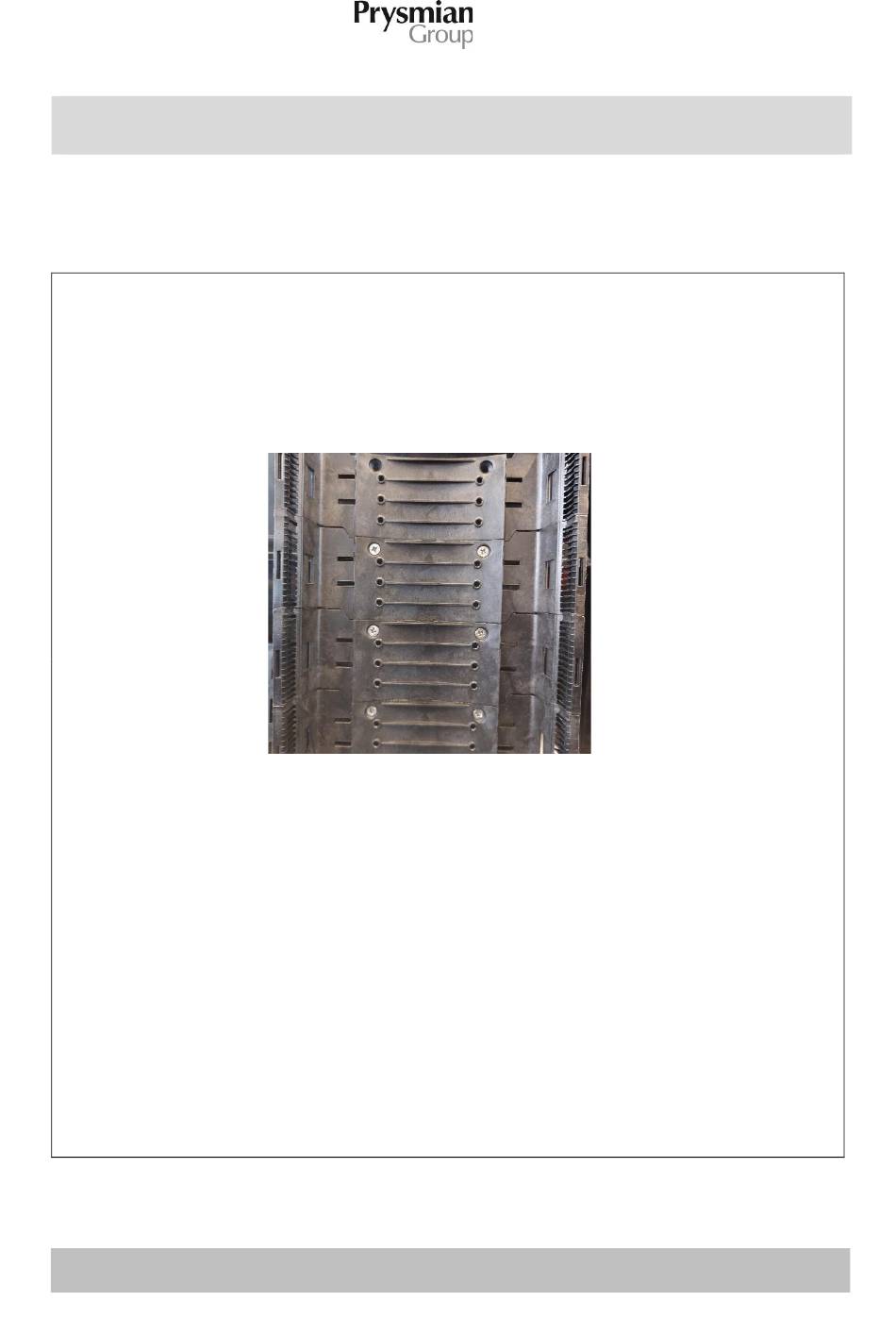

INSTALLATION INSTRUCTION
LMJ – SOSA/SASA INSTALLATION GUIDE
IF YOU ARE USING SCREW-IN BACKPLATES
FOLLOW STEPS 1-4, IF USING CLIP-IN BACKPLATES
FOLLOW STEPS 5-6.
Step 1- SCREW-IN BACKPLATES
TO INSTALL AN ADDITIONAL SOSA/SASA UNIT FIRST IDENTIFY
THE GROOVES IN WHICH THE NEW UNIT SLOTS INTO.
Page 1 of 6
th
IP353
Issue Number: 02
Date: 10
August 2022
