Summary of Contents for Prysmian Draka CITEBK065P143A

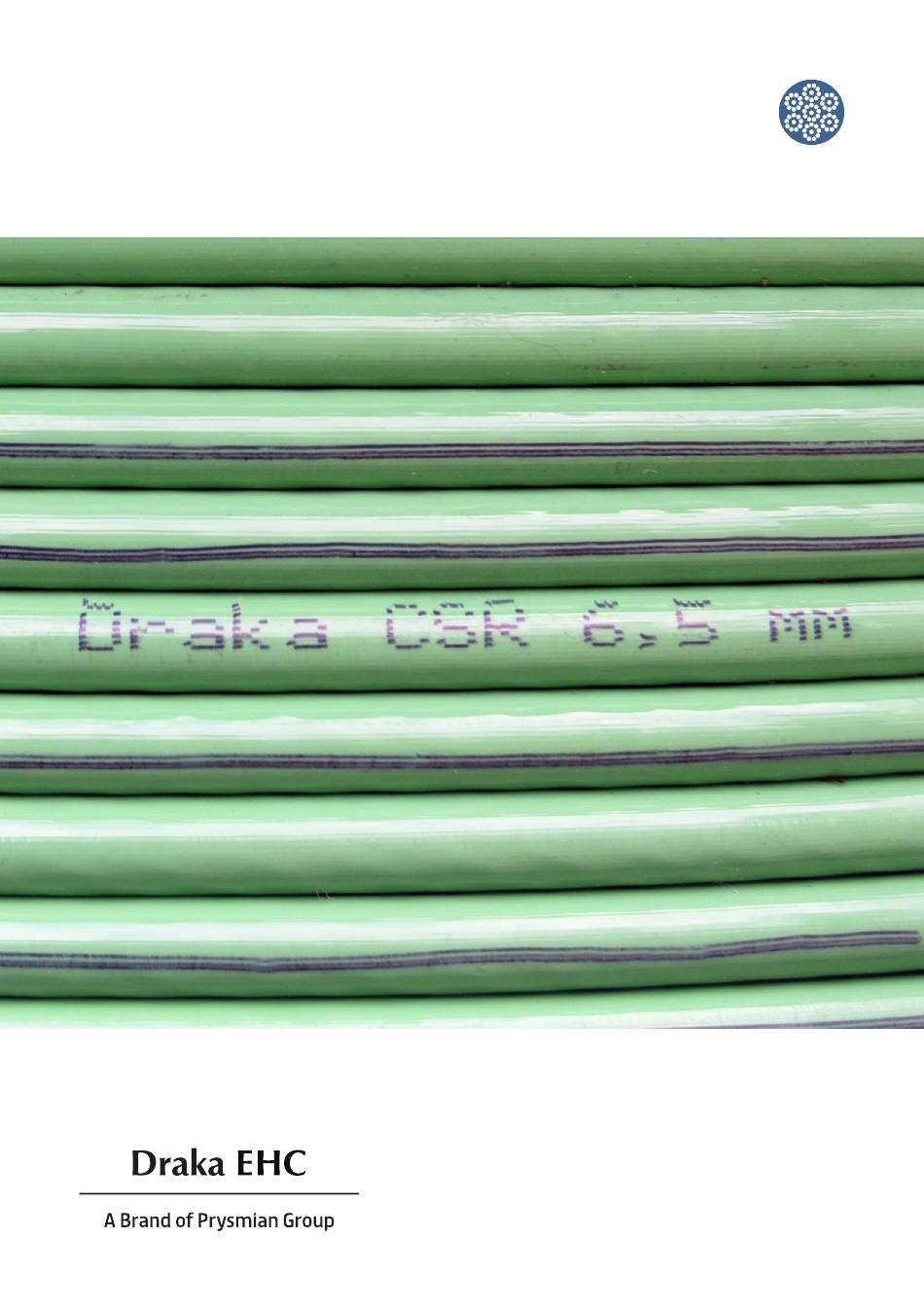

  • Page 1 Management Draka CSR d.6,5 mm PU Coated Rope User Manual Flat Cable Compensation Wireway Electronics Elevator Wire Rope Coated Steel Roun Version 1022 Cable Maintenance Rope Healthcare Airports Hospitality Shopping Stadiums Specialty / Cruise Parking Commercial Government Convention Center...
  • Page 2 Important! Please read first! WARRANTY AND SAFETY INFORMATION This user manual is meant to serve as a general guideline for use of DRAKA CSR d.6,5 mm Elevator Rope. Please contact your rope supplier for technical assistance. Customers are encouraged to adapt these guidelines to the specific requirements of their elevator models.
  • Page 3: Table Of Contents

    Table of Contents Product description Special handling instructions Keep away from certain chemicals Protection from the elements Avoid all contact with dirt and lubricants Transporting and moving reels Handling rope on a reel Usage and maintenance Deflection sheave alignment and sheave groove information Friction factors Installation Tensioning and checking for torsion...
  • Page 4: Product Description

    Product description SPECIFICATIONS AND TRACEABILITY SPECIFICATIONS FOR Draka EHC’s Coated Steel Rope (CSR) is a unique product that offers several advantages in DRAKA CSR D.6,5 mm elevator operation. It is smaller in diameter Specification and offers better traction than comparable Diameter (nominal) 6,5 mm uncoated steel ropes.
  • Page 5: Special Handling Instructions

    Special handling instructions KEEP AWAY FROM SPECIFIC CHEMICALS Exposure to certain chemicals may damage PU-coated ropes. The extent of damage depends upon the substance and the concentration, temperature and duration of exposure. Exposure will cause a gradual degradation of the rope. In extreme cases, it can cause disintegration of the coating.
  • Page 6: Protection From The Elements

    Special handling instructions PROTECTION FROM THE ELEMENTS The rope must be stored in a protected environment that is dry, clean and temperature-controlled. Most importantly, the rope must not be exposed to the environment (e.g. rain, direct sun exposure, dust, dirt, etc.). When storing, find a location where the rope will not be exposed to direct sunlight.
  • Page 7: Avoid All Contact With Dirt And Lubricants

    Special handling instructions AVOID ALL CONTACT WITH DIRT AND LUBRICANTS Coated ropes are very sensitive to lubricants and oil substances in general. Therefore, it is essential that the rollers in the cutting machine counter are free of lubricants and debris that they have picked up from cutting standard wire ropes.
  • Page 8: Transporting And Moving Reels

    Transporting and moving reels TAKE SPECIAL CARE WHEN USING FORKLIFTS Maximum care must be paid in the operation of movement and handling of the rope coils due to the delicate nature of the rope surface. All sharp edges must be avoided and suitable hanging points must be used to move the reels properly in the warehouse.
  • Page 9: Handling Rope On A Reel

    Handling rope on a reel AVOID KINKING, LOOPING AND PLACING TORSION INTO THE ROPE When uncoiling the rope: DO NOT let the rope loop or kink. DO NOT uncoil the rope on dirty or rough surfaces, as this can irreparably damage the rope coating.
  • Page 10: Usage And Maintenance

    Usage and maintenance DEFLECTION SHEAVE ALIGNMENT AND SHEAVE GROOVE INFORMATION Elevators must be designed with the properties of DRAKA CSR d.6,5 mm elevator rope in mind to obtain all its benefits. The following recommendations are general guidelines. Please contact your supplier of DRAKA CSR d.6,5 mm ropes for further support.
  • Page 11: Friction Factors

    Usage and maintenance FRICTION FACTORS Prysmian Group recommends using the following values for the friction factor f as a guideline for elevator design. Please note that these are friction factor values f and not friction coefficient μ. • Car loading condition (EN81-50 art.
  • Page 12: Installation

    Usage and maintenance INSTALLATION During rope installation, do not pull the rope over sharp objects or edges. Avoid twisting/ rotating the rope around its axis. Twisting can lead to a build-up of excess strand or wire length inside the rope. This can cause reduced rope life.
  • Page 13: Tensioning And Checking For Torsion

    Usage and maintenance TENSIONING AND CHECKING FOR TORSION Rope terminations should be compliant with DRAKA CSR d.6,5 mm elevator ropes and fulfill all relevant safety regulations. Ropes must be installed with equal tensions (±10%). Tensions must be re-checked after a Preferred few trips and corrected if necessary.
  • Page 14: Listen For Noise During Operation

    Usage and maintenance LISTEN FOR NOISE DURING OPERATION Ropes should be silent while running over sheaves. Noise can be a sign of excessive deflection angles as the rope enters the sheave and could indicate dirt inside the sheave grooves. Carefully check for misalignment to see if all ropes are running through the grooves correctly and if terminations are properly positioned.
  • Page 15: Operating Temperatures And Exposure To Sunlight

    Usage and maintenance OPERATING TEMPERATURES AND EXPOSURE TO SUNLIGHT The recommended temperature range during elevator operation is 0°C to 40°C. However, the rope may withstand temperatures that are above or below the threshold for a short period of time, such as when they are being shipped. Outside panoramic elevator...
  • Page 16: Humidity And Condensation

    Usage and maintenance HUMIDITY AND CONDENSATION DRAKA CSR d.6,5 mm elevator ropes operate best in environments that do not permit condensation (the formation of moisture) on the ropes. Avoid placement in areas where there are wide differences in ambient temperatures, such as sunlit areas that rapidly cool in the evening).
  • Page 17: Discard Criteria

    Discard criteria REPLACE ALL ROPES IF DISCARD CRITERIA IS REACHED FOR ONE DRAKA CSR d.6,5 mm elevator ropes are almost maintenance-free and must not be lubricated. Check for discard criteria at regular inspection intervals specified by the elevator manufacturer. The discard criteria are part of the conformity examination certificates issued by the notified body.
  • Page 18 Discard criteria DEPENDS ON NUMBER OF TRIPS, NUMBER OF YEARS OR VISIBLE DAMAGE Coated steel ropes have to be replaced when the maximum number of trips or lifetime in years (from TÜV SÜD examination of conformity certificate CA561) is reached OR when one of the other discard criteria described below occurs.
  • Page 19 Discard criteria INSPECTION In addition, the ropes must be regularly inspected over the whole length and discarded: • in case of positional displacement of the steel rope inside the plastic sheathing • in case of recognizable ingress of moisture into the plastic sheathing, •...
  • Page 20 Discard criteria EXAMPLES Ropes have to be discarded in case of deformation of the plastic sheathing. Ropes have to be discarded in case of coating cracks clearly visible at straight rope sections under tension that extend to the inner steel rope with a number greater than three over a length of 10 cm.
  • Page 21 Discard criteria EXAMPLES Ropes have to be discarded in case of plastic sheathing damage with large separation of the coating from the rope of a length greater than 1,5 cm. Ropes have to be discarded in case of steel wires escaping through the coating with a number greater than three over a length of 100 cm.
  • Page 22: Warranty

    Warranty DRAKA EHC warrants that the DRAKA CSR THE WARRANTIES SET FORTH HEREIN d.6,5 mm elevator ropes conform to the ARE DRAKA EHC’S SOLE AND EXCLUSIVE specifications agreed upon with its clients. WARRANTIES FOR OR RELATING TO THE GOODS AND DRAKA EHC EXPRESSLY DISCLAIMES ALL Except as provided in DRAKA EHC terms and OTHER WARRANTIES.
  • Page 23 Draka EHC is a trademark of the Prysmian Group. Unauthorized reproduction, disclosure or distribution of copies by any person of any portion of this work may be a violation of Copyright Law of the United States of America and other countries, could result...
  • Page 24 Draka EHC Prysmian Cavi e Sistemi Italia S.r.l. Via Juker 20/A corner Via Don Milani • 20025 LEGNANO (MI) infoemea@prysmiangroup.com • T +39 03 3157 9915...
