Pulse Seville ErgoSafetyBar 4016-SSB Installation Instructions

Pulse Seville ErgoSafetyBar 4016-SSB Installation Instructions

24” with optional towel bar

Advertisement

Quick Links

TOOLS REQUIRED FOR INSTALLATION
Electric Drill
1/8" wood or metal drill bit
5/16" masonry drill bit
Tape measure
Screwdriver
Level
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.

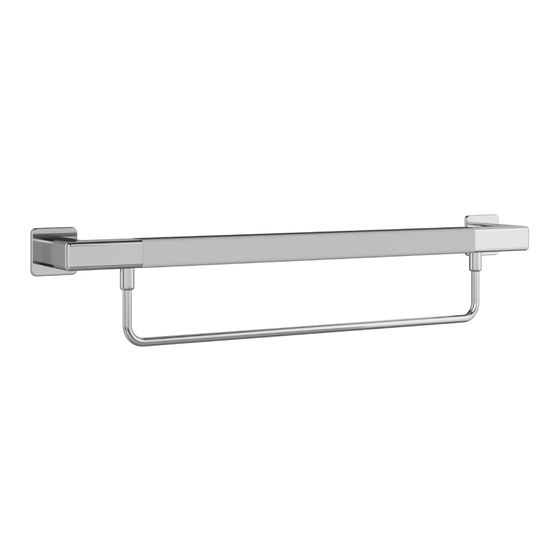

ErgoSafetyBar - 24"
with optional Towel Bar
INSTALLATION INSTRUCTIONS
4016-SSB, 4016-SSP, 4016-MB, 4016-ORB
TOWEL BAR SOLD SEPARATELY
IMPORTANT
Check local code for proper placement
of ErgoSlideBar to meet requirement
such as ADA or ANSI 117.1 Consumer
Safety Requirements.
ERGOSAFETYBAR CAN BE MOUNTED
THROUGH SHOWER WALL AND
SCREWED DIRECTLY TO WOOD OR
METAL STUD WHEN APPLICABLE.
INSTALLATION QUESTIONS
Before returning your ErgoSafetyBar to
the store or have any question about
installation or missing parts please
visit the CUSTOMER CARE area on our
website www.PulseShowerSpas.com.
WARRANTY
Please visit
www.PulseShowerSpas.com for
our Manufacture's Lifetime Limited
Warranty information.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Seville ErgoSafetyBar 4016-SSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulse Seville ErgoSafetyBar 4016-SSB

  • Page 1 ErgoSafetyBar - 24” with optional Towel Bar INSTALLATION INSTRUCTIONS 4016-SSB, 4016-SSP, 4016-MB, 4016-ORB TOWEL BAR SOLD SEPARATELY TOOLS REQUIRED FOR INSTALLATION INSTALLATION QUESTIONS IMPORTANT Before returning your ErgoSafetyBar to Check local code for proper placement the store or have any question about of ErgoSlideBar to meet requirement installation or missing parts please such as ADA or ANSI 117.1 Consumer...
  • Page 2 STEP 1 PARTS INCLUDED Position bar on wall at your desired location. Make sure bar is leveled. • Stainless steel rail Trace around mounts with pencil to create your mounting template. • Installation manual Use an allen wrench to remove set screws and remove bar from mounts. STEP 2 Install screws through mounting flange and directly into wood/metal stud TOWEL BAR SOLD SEPARATELY...
