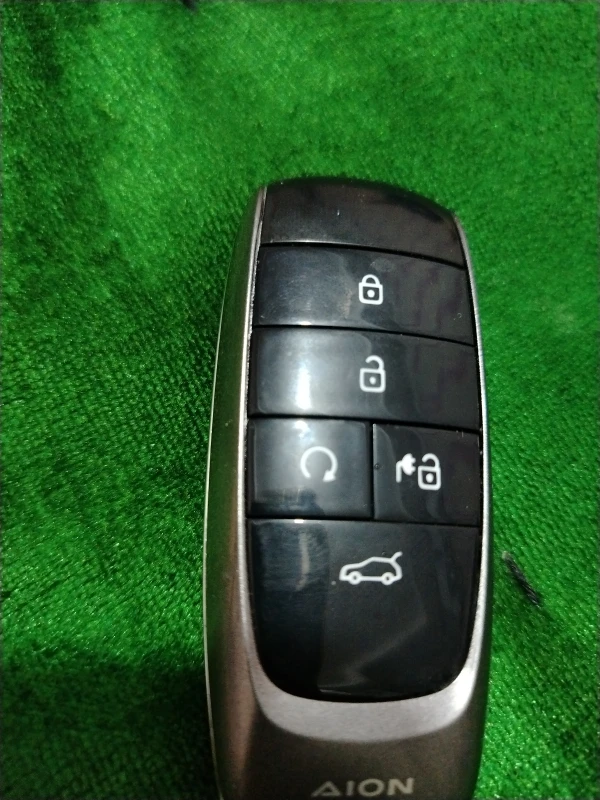

Что обозначает знаки на ключе автомобиля Gac Ayon y plys?

User image 681a3a4ab31bf
0

Subscribe to Our Youtube Channel

Related Manuals for GAC Aion Y Plus 2024

Summary of Contents for GAC Aion Y Plus 2024

  • Page 1 Owner’s Manual...
  • Page 3 Wish you a happy journey! GAC Aion New Energy Automobile Co., Ltd. April 2024 GAC Aion New Energy Automobile Co., Ltd. All Rights Reserved! No information contained in this manual is allowed to be reprinted or duplicated without the written permission of GAC Aion New Energy Automobile Co., Ltd.

  • Page 5: Table Of Contents

    Table of Contents Introduction to the Owner’s Entering the vehicle Manual Opening of doors......15 Notices to users ......1 Opening doors from outside ..15 How to read this manual ....2 Interior lighting ......16 Preparations before use Interior lighting ........
  • Page 6 Table of Contents Driving Seat adjustment ......35 Adjustment of exterior rearview Instruments ......... 62 mirror ..........37 Indicator lamps on instrument ..62 Adjustment of interior rearview Warning lamps on instrument ..65 mirror ..........37 Instrument view ......67 Window control .......
  • Page 7 Table of Contents Unlocking from inside....119 Autonomous Emergency Braking (AEB)* ..........88 Unlocking doors from inside ..119 Cruise Control System (CCS)* ..90 Opening doors from inside ..119 Adaptive Cruise Control (ACC)* ..91 After getting off......120 Integrated Cruise Assist (ICA)*..
  • Page 8 Table of Contents Corrosion protection measures ..140 Jump start ........166 Long-term storage of vehicle ..141 Emergency start of vehicle ..167 Emergency power-off of vehicle .. 168 Adding oils and fluids ....142 Roadside assistance ....169 Opening and closing hood....

  • Page 9: Introduction To The Owner's Manual

    GAC AION for replacement. vehicle, that is to say, the EDR will not record data during normal driving. If accessories and parts not genuine to GAC AION are used for modification of the vehicle, EDR data disclosure we will refuse to provide warranty and bear...

  • Page 10: How To Read This Manual

    Introduction to the Owner’s Manual How to read this manual Illustrations in the Manual The illustrations in this manual are for reference only. The actual vehicle shall prevail. Fast lookup Unless otherwise specified, the directions of This manual is divided into several chapters the vehicle (front, rear, left and right) referred in a logical way, and in order to help you find to in this manual are based on the traveling...

  • Page 11: Linking The Vehicle

    Linking the vehicle AION APP Linking the vehicle The AION APP is an official platform that The steps to activate your AION APP account provides vehicle owners with professional and link the vehicle to your account are as vehicle use skills and knowledge as well as follows: convenient remote vehicle control services.
  • Page 12 Linking the vehicle Set PIN Link my car Please set your own 6-digit PIN for owner authentication related to subsequent vehicle control. Enter VIN Motor No. Enter motor No. Verification code Enter verification code Send Confirm Full name First name Last name The PIN applies to all vehicles under the current account...

  • Page 13: Vehicle Control

    Linking the vehicle Vehicle control* Last updated at 10:18am, December 15 Last updated at 10:18am, December 15 Range Battery Check vehicle status > Range Battery Check vehicle status > Locks Windows Flashing Honking Locks Windows Flashing Honking Battery One-touch Ventilation One-touch preheating disinfection...
  • Page 14 Linking the vehicle Last updated at 10:18am, December 15 Range Battery Check vehicle status > Enter PIN Effective duration of PIN Forget PIN 3. After the setting is completed, the PIN input interface will pop up. Enter the PIN, and the vehicle will perform the vehicle control operations you desire.

  • Page 15: Preparations Before Driving

    Preparations before driving Remote setting Pre-drive check After the vehicle is linked to the account, Before driving, it is recommended to check you can remotely set some vehicle functions the following: through the AION APP before driving the vehicle. (if available) Tires Open the AION APP and enter the remote Lamps...

  • Page 16: Key

    Introduction to buttons on smart key If the smart key is lost, the vehicle will be at risk of theft. In this case, immediately go to the GAC AION sales store for treatment. NOTE The smart key will not work after the vehicle enters the driving ready status.
  • Page 17 The indicator lamp on the smart key is off. The battery of smart key will run out if it is not used for a long time, and if this occurs, please get the battery replaced in the GAC AION sales store. A Smarter Companion...

  • Page 18: Unlocking From Outside

    Unlocking from outside Locating of vehicle Unlocking vehicle from outside If you forget where your vehicle is parked, you can determine the approximate location of Unlocking by smart key button the vehicle through the AION APP. When you With the vehicle locked, press the unlocking arrive near the vehicle, you can control the button within the effective range of the smart...

  • Page 19: Opening Of Liftgate

    Opening of liftgate Opening of liftgate NOTE If the vehicle is not equipped with a power Opening methods of liftgate liftgate, the above methods can only Opening liftgate by smart key unlock the liftgate. After unlocked, the liftgate still needs to be lifted manually. With the smart key within the effective For some models, the liftgate can be range, press and hold the liftgate...
  • Page 20 Opening of liftgate The buzzer sounds 2 times intermittently, WARNING (Cont’d) indicating that the memory position is set successfully. If the buzzer sounds 4 times Remove all loads such as snow and ice intermittently, it indicates that you failed to on the liftgate before opening the liftgate.
  • Page 21 Opening of liftgate NOT (Cont’d)E CAUTION (Cont’d) The liftgates of some models have an Please avoid rubbing hard objects anti-pinch function: against the heating element on the rear windshield, otherwise the heating element During the electric closing of the may be damaged. (if available) liftgate, if the anti-pinch strips on both sides are squeezed by external forces, Fill the trunk in a reasonable way, and...

  • Page 22: Closing Of Liftgate

    Closing of liftgate Closing liftgate manually Closing of liftgate The manual closing method of the liftgate is as follows: Electric closing of liftgate* Closing liftgate by smart key When the liftgate is open, with the smart key within the effective range, press and hold the liftgate opening button on the smart key to automatically close the liftgate.

  • Page 23: Opening Of Doors

    Opening of doors Opening doors from outside Unlock the vehicle, and after the hidden door handle extends automatically, pull the handle to open the door. WARNING Prevent hand pinching by door handle when locking the vehicle. CAUTION Do not press the extended door handle forcibly, otherwise, the door handle will be damaged.

  • Page 24: Interior Lighting

    Interior lighting Interior lighting Driving mode Ambient light color Intelligent ambient light (IAL)* Green If the IAL function is switched on on the center NORMAL White console display, the interior ambient light will come on after the power switch is set to SPORT ON, providing for driver a slightly bright and comfortable driving environment, alleviating...
  • Page 25 Interior lighting When you press the rear reading lamp switch on both sides, the rear reading lamp of concerning side will be turned on/off. A Smarter Companion...

  • Page 26: Seat Belt

    If the seat belt assembly does not work properly, it is recommended to contact WARNING the GAC AION sales store for repair or replacement immediately. Each seat belt is for one person only. Do not share a seat belt with other persons Always replace the seat belt system (including children).

  • Page 27: Correct Sitting Posture

    Seat belt Correct sitting posture WARNING During driving, maintain a correct sitting Correct sitting posture of the driver posture, and keep your back fitting the seat back closely, otherwise serious injury may occur in case of emergency braking or accident. The driver should keep a proper distance from the steering wheel.

  • Page 28: Correct Use Of Seat Belts

    Seat belt Correct use of seat belts Unfastening the seat belt Fastening the seat belt correctly 1. Adjust the sitting posture correctly. 1. Hold the seat belt and press the red button next to the seat belt buckle, so the tongue will spring up automatically.

  • Page 29: Seat Belt Use During Pregnancy

    If the seat belt assembly does not work properly, it is recommended to contact the GAC AION sales store for repair or replacement immediately. For pregnant women, wearing a seat belt correctly can effectively reduce the injuries...

  • Page 30: Seat Belt Reminder

    Seat belt Seat belt reminder If the driver or passenger does not fasten the seat belt after the vehicle is started, the indicator lamp on the instrument will flash or stay on. NOTE If the driver or front passenger does not fasten the seat belt at a certain vehicle speed, the buzzer will sound, and a corresponding warning text message will...

  • Page 31: Airbag

    Airbag Introduction to airbag DANGER The driver and all passengers in the In the event of a serious collision, the airbag vehicle must fasten the seat belt will inflate and deploy quickly to reduce the correctly. risk of serious injury to the passenger inside the vehicle together with the seat belt.
  • Page 32 Before scrapping the vehicle, it is of airbag. recommended to contact the GAC AION sales store or other qualified third party for Check the SRS regularly. If any of dismantling and scrapping of the airbag.

  • Page 33: Srs Warning Lamp

    If the warning lamp does not go out after self-test, or goes on again during driving, it indicates that the SRS is faulty, and in this case, please contact the GAC AION sales store for inspection or replacement. A Smarter Companion...

  • Page 34: Airbag Deployment

    Airbag Airbag deployment The deployment of airbag depends on the vehicle speed, collision angle, accident type, obstacle and other factors at the time of collision. The airbag may deploy under the following situations: Nose-down to the ground when the vehicle crosses a deep groove. Hitting a roadside protrusion, curb, etc.
  • Page 35 Airbag NOTE When the airbag deploys: The deployment (inflation) speed is very high, which may cause minor scratch, scalding or other injury. It will produce large noise and a small amount of smoke. The airbag and the area around it will be very hot. The windshield may be broken.

  • Page 36: Child Safety

    Child safety Safety guidelines for child DANGER (Cont’d) passengers Do not allow the child to lean on the airbag deployment area such as door and side pillar even if he/she is well protected in the child seat. Otherwise, the child may be seriously injured or even killed by the impact force produced by airbag deployment.

  • Page 37: Child Safety Lock

    Child safety Child safety lock WARNING (Cont’d) Always use the child seat in strict accordance with operation instructions provided by the manufacturer of the child restraint system. Please restrain the child on the seat properly even if the child restraint system is not used.

  • Page 38: Isofix Child Restraint System

    Child safety ISOFIX child restraint LATCH child restraint system system ISOFIX interface is an anchorage interface LATCH interface is an anchorage interface for for hard connection with the child seat which flexible connection with the child seat which supports the ISOFIX system. supports the LATCH system.

  • Page 39: Applicability Of Child Seats

    Child safety Applicability of child seats Please select an appropriate child seat and install it in the correct position according to the table below. Information about the applicability of different seating positions for child seats Seating position Weight group Front passenger’s Rear outboard Rear center seat seat...
  • Page 40 Child safety Information about the applicability of different ISOFIX positions for ISOFIX child seats Seating position Size Fixture Front Rear Rear Weight group class module passenger’s outboard center seat seat seat ISO/L1 Carry-cot ISO/L2 ISO/R1 IUF/IL Group 0 (0~10kg) ISO/R3 IUF/IL ISO/R2 IUF/IL...
  • Page 41 Child safety Size class and description of corresponding child seat Size class Description of corresponding child seat Full-height front-facing child seat for toddler Height-reduced front-facing child seat for toddler Height-reduced front-facing child seat for toddler Full-size rear-facing child seat for toddler Size-reduced rear-facing child seat for toddler Rear-facing child seat for infant Left-facing child seat for infant (carry-cot)

  • Page 42: Sitting In Front/Rear Seats

    Sitting in front/rear seats Switch-on/off of vehicle NOTE power supply If the front passenger’s seat is still occupied by a person after the driver gets Switching on the vehicle power supply off the vehicle, the vehicle power supply will not be switched off automatically, and After the vehicle is unlocked and either front the on-board electrical consumers will door is opened, the center console display will...

  • Page 43: Seat Adjustment

    Sitting in front/rear seats Manual seat adjustment Seat adjustment Headrest adjustment 1. Pull up the middle of the seat position adjusting lever , slide the seat to the required position, and release the adjusting Pull the headrest up to the appropriate lever.
  • Page 44 Sitting in front/rear seats Push the rear seat back in contact with the CAUTION seat cushion backward to the locking position to restore the rear seat back. When front seat backs are laid flat, it is forbidden to ride or place heavy objects on the seat backs.

  • Page 45: Adjustment Of Exterior Rearview

    Sitting in front/rear seats Adjustment of exterior Adjustment of interior rearview mirror rearview mirror On the exterior rearview mirror adjustment Before driving, it is required to adjust the interface in “My Car” on the center console interior rearview mirror to the appropriate display, adjust the exterior rearview mirror to angle.

  • Page 46: Window Control

    Sitting in front/rear seats Window control Window anti-pinch function If the window glass is hindered when it Introduction to driver side power window automatically rises, it will stop raising and buttons immediately descend for a certain height. WARNING The driver is responsible for the operation of all power windows, including the operation by passengers.

  • Page 47: Sunroof Control

    Sitting in front/rear seats Sunroof control CAUTION Description of sunroof buttons Triggering the window anti-pinch function several times in a short time will lead to the failure of the window anti-pinch function. When the window express-up & down anti-pinch function fails, initialization is required to restore the function.
  • Page 48 Sitting in front/rear seats Opening sunroof WARNING Press the sunroof opening button to tilt the The driver is responsible for the operation sunroof. Press the button again to open the of the sunroof by all occupants. To sunroof. And release the button to stop the prevent accidental operation (especially sunroof.

  • Page 49: Steering Wheel Control

    Sitting in front/rear seats Steering wheel control NOTE For some models, the opening and closing of sunroof and sunshade can be controlled through the center console display. The sunshade closes together with the sunroof. The sunroof opens together with the sunshade.

  • Page 50: Steering Wheel Adjustment

    Sitting in front/rear seats Horn sign Steering wheel adjustment Press this area to sound the horn, and Before driving, adjust the steering wheel to the release it to mute the horn. appropriate position so as to drive the vehicle more comfortably and safely. NOTE Depending on the configuration, buttons on the steering wheel may vary.

  • Page 51: Locking Doors From Inside

    Sitting in front/rear seats Locking doors from inside When doors are closed, press the locking end of the central locking switch inside the vehicle to lock all the doors. WARNING For driving safety, please lock the doors before driving. NOTE Do not frequently operate the central locking switch in a short time.

  • Page 52: Ride Comfort

    Ride comfort Wireless charging of mobile WARNING phone* Never place any objects between the mobile phone and the charging area Turning on/off the wireless charging function for mobile phone during charging. Non-metallic objects will cause decreased charging performance. With all doors closed, touch the button Objects such as magnetic cards or chip in the upper left corner of the center console...

  • Page 53: A/C Control

    You can follow the prompt to eliminate the fault. If it cannot be eliminated, please stop using this function and contact the GAC AION sales store for repair in time. NOTE Only one mobile phone can be charged at a time.
  • Page 54 Ride comfort A/C settings Quick heating or cooling In any interface of the center console display, To achieve quick heating or cooling of cabin, touch the temperature numbers in the A/C select the quick cooling or heating scene in quick control area below the center console the A/C scene interface.
  • Page 55 Ride comfort WARNING NOTE The control mode of the front air outlets When the front windshield defrost/ defog is generally the same. Here, the front function is active at ambient temperature central air outlet is introduced as an above 0℃, if the A/C compressor is example.

  • Page 56: Seat Ventilation

    If there is no wind in the seat for a long time after turning on the seat ventilation function, you should immediately turn off the seat ventilation function and contact the GAC AION sales store for repair in time. NOTE For some models, the seat ventilation function can be controlled through the voice command.

  • Page 57: Storage Space

    Ride comfort Storage space WARNING Storage box on door interior trim panel During driving, make sure that the central armrest box is closed. Front cup holder The storage box on door interior trim panel can be used to store maps, beverage bottles, etc. The front cup holder is used for storing cups or CAUTION beverage bottles.
  • Page 58 Ride comfort Press the console storage box cover until it is WARNING locked for closing. Make sure the glove box is closed Storage slot under console during driving. Rear cup holder* The storage slot under the console is used to store other items.

  • Page 59: Safety Grip

    Ride comfort Safety grip Sun visor When the vehicle is running fast or on a bumpy Sun visors are located above the driver’s seat road, the safety grips can be used to keep the and front passenger’s seat. Turn down the sun body balanced.

  • Page 60: Lamp

    Ride comfort Vanity mirror and vanity 12V power outlet mirror lamp The vanity mirror and vanity mirror lamp are located on the sun visor. Turn down the sun visor and lift the vanity mirror cover to use the vanity mirror and vanity mirror lamp. Enter the vehicle, lift the 12V power outlet cover and connect an electrical consumer at the same time to use the 12V power supply.

  • Page 61: Usb Port

    Ride comfort USB port Arrangement of USB ports Interior rearview mirror USB port CAUTION It is forbidden to insert foreign matters into Front USB port USB ports. It is forbidden to spill water or other liquids in USB ports. It is forbidden to disassemble or modify USB ports.

  • Page 62: Multimedia

    Multimedia Multimedia control panel Basic operations Center console display Main interface When the vehicle power is turned on, the Drop-down menu indication area center console display shows the initial screen for a few seconds and then starts operating. Swipe down to enter the drop-down menu bar control interface.
  • Page 63 Multimedia System navigation bar Cards area You can quickly enter the corresponding Shows the soft keys for system control. function interface by touching the card in the cards area of the main interface. It supports Drop-down menu indication area Bluetooth call card and energy consumption On any interface, swipe down from the top of card.
  • Page 64 Multimedia My Car Touch the vehicle image in the desktop scenes area, or the “My Car” icon on the app menu to enter the My Car interface. Touch the app icon to enter the respective app interface, and touch or swipe down to hide the menu interface.

  • Page 65: Bluetooth Connection

    Multimedia Bluetooth connection At the end of the call, press and hold the button on the steering wheel to hang Bluetooth connection (status 1) up the call. This vehicle supports functions such as Making a call Bluetooth call, which can be used after After Bluetooth connection, enter the successful Bluetooth connection.

  • Page 66: Voice Assistant

    Multimedia Voice assistant* Category Function Example I want to listen to Using voice assistant FM xxx, listen to Yangcheng Traffic Short press the button on the steering Radio Radio, listen wheel or say the wake-up word "Hello baby" stations music radio, save to wake up the voice assistant.

  • Page 67: Connection With Mobile Phone

    Multimedia Connection with mobile Android Auto phone* Android Auto enables the vehicle multimedia system to share the functions of mobile CarPlay phones such as navigation, music, call, etc. Apple CarPlay allows you to use iPhone in the Downloading of mobile phone application vehicle intelligently and safely, and enables the vehicle multimedia system to share the Android Auto may be downloaded from...

  • Page 68: Precautions For Multimedia Use

    Vehicle vibration may cause poor contact repair it without authorization. Stop using of USB devices. it and contact the GAC AION sales store for repair. Do not use the center console display in a faulty state without images or sounds.
  • Page 69 Multimedia CAUTION (Cont’d) During media playing with USB devices, the opening time of different video and image files may vary. For example, image files that occupy more storage space, and high-resolution video and audio files take more time to open. That it takes too long time to open a file may cause the system to restart.

  • Page 70: Instruments

    Instruments Indicator lamps on instrument Name Icon Description Left turn signal The indicator lamp comes on if the left turn signal lamp indicator lamp is turned on The indicator lamp comes on if the right turn signal lamp Right turn signal indicator lamp is turned on Position lamp...
  • Page 71 Instruments Name Icon Description With the charger connected, when "Scheduled Charging" has been set but the scheduled charging has not started, the indicator lamp comes on. Scheduled charging indicator lamp With the charger connected, when "Scheduled Charging" has been set and the scheduled charging is in progress, the indicator lamp comes on.
  • Page 72 Instruments Name Icon Description If the indicator lamp comes on, it indicates that the LDW LDW status indicator is in ready state lamp If the indicator lamp comes on, it indicates that the LDW is active If the indicator lamp comes on, it indicates that the Intelligent high beam Intelligent High Beam Control (IHBC) is activated status indicator lamp...

  • Page 73: Warning Lamps On Instrument

    Instruments Warning lamps on instrument Name Icon Description If the indicator lamp comes on, it indicates that the ABS ABS indicator lamp is faulty. If the indicator lamp comes on, it indicates that the SRS SRS warning lamp is faulty. If the indicator lamp comes on, it indicates that the ESP ESP indicator lamp is faulty.
  • Page 74 If some warning lamps on the instrument are still on after the vehicle starts, please contact the GAC AION sales store for repair in time according to the actual situation.

  • Page 75: Instrument View

    Instruments Instrument view Current Trip meters Accumulated Mileage remaining to enter Jinshan Avenue East Linyin Road 154,421 Total Mileage: Left information display Gear information Vehicle speed information Power information Right information display Driving mode information Ambient temperature information Range Time information Battery SOC information NOTE The instrument has many display styles.

  • Page 76: Information Display

    Instruments Information display Left information display This area shows information such as power Information shown on the left information consumption and charging condition. display includes power consumption, Vehicle speed information alarm, mileage, door status, tire pressure monitoring, driving assistance (if configured), charging, radar alarm, etc.
  • Page 77 If the information display is abnormal, The total mileage of the vehicle cannot be stop the vehicle immediately in a safe reset. way, and contact the GAC AION sales store for repair. How to view alarm messages 1. When an alarm message appears, the alarm message pops up on the instrument.

  • Page 78: Tire Pressure Monitoring System

    In case of initialization failure, contact the How to view TPMS alarm messages GAC AION sales store for repair. When the TPMS indicator lamp comes After successful initialization, the TPMS on, you can switch the instrument information...
  • Page 79 CAUTION If the TPMS fault occurs repeatedly, contact the GAC AION sales store for repair. NOTE If the tire pressure is higher than the standard value, the TPMS may be unable to give an alarm.

  • Page 80: Pulling Out

    Pulling out Vehicle start Switching of driving modes Normally, the vehicle may be started as This vehicle allows multiple driving modes, follows: which can be switched according to specific application scenarios. 1. Carry the smart key with you and enter the vehicle.
  • Page 81 Pulling out Braking energy recovery* WARNING (Cont’d) The braking energy recovery converts a part The I-PEDAL mode cannot be used for of kinetic energy during vehicle braking or long-time parking. For long-time parking, coasting into the electric energy of traction set the gear to “P”.

  • Page 82: Shifting Gears

    Pulling out Shifting gears WARNING Never allow the vehicle to coast in neutral gear. During temporary stop in “N” gear, be sure to apply the parking brake or step on the brake pedal; otherwise the vehicle may slide, causing an accident. NOTE For shifting from “D”...

  • Page 83: Speed Control

    Speed control Pedals NOTE In case of braking circuit failure, the brake pedal requires longer pedal travel to stop the vehicle. When the vehicle climbs down a long or steep slope, it is recommended to activate the I-PEDAL mode to brake with the drive motor and reduce the brake load.

  • Page 84: Brake Assist Control Systems

    GAC AION according to the lockup state. sales store for inspection in time. During operation of the ABS, you may perceive...
  • Page 85 Speed control Hill Hold Control (HHC) Hydraulic Boost Failure Compensation (HBC) The HHC is mainly used to help the driver to pull away successfully on a steep slope. The HBC controls the vehicle to achieve a large braking deceleration through active When the vehicle is stationary, the HHC pressurization via the ESP in case of failure detects whether the vehicle is on a slope...

  • Page 86: Acoustic Vehicle Alerting System

    Speed control Acoustic Vehicle Alerting CAUTION System (AVAS) Improper operation or modifications (such as modifications to the brake system, During driving at low speed, the AVAS sounds wheels, tires and other components) of the warning chime to warn pedestrians and the vehicle will affect the functions of the vehicles to improve driving safety.

  • Page 87: Auto Hold

    Speed control AUTO HOLD WARNING The AUTO HOLD can help you keep the When AUTO HOLD is in operation, vehicle stationary after the braking, without the opening the driver’s door or unfastening need of setting the gear to “N” / “P” or apply the the driver’s seat belt will deactivate the parking brake.

  • Page 88: Light Control

    Light control Light control Switching to high/low beam Activating automatic headlamp function Switch on the vehicle power supply, touch button on the center console display to enter the quick control interface and then touch the automatic headlamp button to turn on the automatic headlamp function.
  • Page 89 When the vehicle is started and the accumulated water in the lamps, please headlamp is not on, only the rear position contact the GAC AION sales store for lamp is turned on. inspection and repair. If you forget to turn off the position lamps,...

  • Page 90: Intelligent High Beam Control

    Light control Intelligent High Beam When driving on dimly lit streets, there are highly reflective objects ahead. Control (IHBC)* When driving in an environment with After the IHBC is turned on, the vehicle insufficient lighting, there are pedestrians automatically switches between high and low or bicycles ahead.
  • Page 91 Light control CAUTION (Cont’d) Changes to the lighting system of the vehicle (such as modifying the headlamps) may also cause the IHBC to degrade or become unavailable. NOTE When you come across oncoming non-motorized vehicles such as bicycles or electric bicycles, the IHBC should be turned off in time to prevent dazzling the others.

  • Page 92: Wiper Control

    Wiper control Wiper control Front windshield washing Operation of front wiper Press the front wiper washer button to have the front washer nozzle spray washer fluid. After the wiper control lever is released, the Turn the wiper control knob up or down from front washer nozzle stops spraying the washer position, so that the front wiper position fluid, the wiper operates several times, and...
  • Page 93 Wiper control : The wiping operation of the rear Replacing rear wiper blades wiper is turned off. 1. Pull up the wiper arm from the rear : The wiping operation of the rear windshield. wiper is turned on. Replacing wiper blades 1.
  • Page 94 Wiper control NOTE In cold days in winter or in hot days in summer, the wiper maintenance mode may be activated, and the front wiper should be lifted up from the front windshield. automatic wiping function be activated or deactivated via the center console display.

  • Page 95: Intelligent Driving

    Intelligent driving Brake jerk warning Forward Collision Warning (FCW)* When detecting a high risk of collision with the target preceding vehicle, The FCW timely reminds the driver to take the FCW will trigger the brake jerk measures to ensure driving safety in case of a warning to remind the driver to carry potential collision risk by detecting the relative out emergency braking immediately.

  • Page 96: Autonomous Emergency Braking

    Intelligent driving Autonomous Emergency System limitations Braking (AEB)* Under certain conditions including but not limited to the following, the AEB may not work: The AEB applies brake in case of a collision risk by detecting the relative distance and The vehicle passes an extremely tight turn. speed with the vehicle ahead in the same path The accelerator pedal is depressed quickly.
  • Page 97 Intelligent driving WARNING NOTE The AEB can improve the driving safety, When the AEB is activated, the vehicle but it is still subject to the limitations of will be braked, and the foot may feel laws of kinematics, and thus shall never hard or vibration from the brake pedal, be used for risky driving.

  • Page 98: Cruise Control System (Ccs)

    Intelligent driving Cruise Control System (CCS)* Decreasing cruising speed Press the button on the steering wheel to The CCS allows the vehicle to run at the reduce the cruising speed. set cruising speed without depressing the Press and hold the button on the steering accelerator pedal.

  • Page 99: Adaptive Cruise Control (Acc)

    Intelligent driving Adaptive Cruise Control NOTE (ACC)* When the cruising speed is reduced to The ACC applies the millimeter wave radar 40km/h, the cruising speed can no longer installed on the front of the vehicle and the be reduced via the button on the intelligent front camera on the front windshield steering wheel.
  • Page 100 Intelligent driving ACC display interface on instrument Increasing cruising speed Press the button on the steering wheel to increase the cruising speed. Press and hold the button on the steering wheel to increase the cruising speed continuously. Decreasing cruising speed Press the button on the steering wheel to reduce the cruising speed.
  • Page 101 Intelligent driving System limitations The ACC is subject to limitation of physical laws, and thus in some driving environments, the driver may find that the vehicle is not controlled as expected after the reaction of the ACC, therefore, the driver must always be ready to control the vehicle.
  • Page 102 Intelligent driving Influencing factors that may deteriorate the sensor function: Driving under harsh operating conditions such as rainstorm, mist, ice, snow or sludge. Driving in cold areas. (frosting or fogging of front windshield due to temperature difference or frost will block the camera) Under the above condition, after the radar sensor is affected, the warning message “The ACC is currently out of service”,...
  • Page 103 Intelligent driving WARNING (Cont’d) WARNING The take-over reminder of the ACC only The ACC is not a safety system, warns the driver of vehicles detected obstacle detector, collision alarm or by its radar sensor and camera, so the anti-collision system, but a comfort ACC may not send an alarm, or may system, so the driver must always send an alarm after a certain delay.
  • Page 104 Intelligent driving WARNING (Cont’d) WARNING (Cont’d) The ACC automatically drive Complex traffic conditions. the vehicle out after a short stop or Oncoming traffic or cross traffic. confirmation from the driver (control of buttons or accelerator pedal). During Low trailers or trucks, and vehicles with this period, the driver must ensure that irregular or non-standard characteristics.
  • Page 105 ACC is faulty. be overwritten by other functions (for It is recommended to contact the GAC example, during a call). AION sales store for inspection and repair. When the ACC brakes the vehicle automatically after activation, there Do not bump the radar sensor.

  • Page 106: Integrated Cruise Assist (Ica)

    Intelligent driving Integrated Cruise Assist Lateral control and driver’s hands off steering wheel (ICA)* When the ICA is ready, the indicator The ICA detects the relative distance and lamp comes on; when ICA lateral speed between your vehicle and the preceding control is activated, the blue indicator vehicle on the same path as well as the lane lamp...
  • Page 107 Intelligent driving Lateral control System limitations When the ICA is activated, it performs lateral The ICA has limitations and may incorrectly control of the vehicle by identifying the detect lane markings or fail to detect lane effective lane markings on both sides, so that markings, or may incorrectly detect target the vehicle can keep traveling in the center of vehicles or fail to detect target vehicles ahead.
  • Page 108 Intelligent driving Median strips or other objects casting WARNING shadows on lane markings. The ICA only provides a driving Short-time change of lane marking, such assistance function cannot as ramp or highway exit. address all road, traffic and weather Driving on steep slopes or bumpy roads. conditions.
  • Page 109 Unfastening the driver’s seat belt. Pressing the hazard warning lamp If the yellow indicator lamp comes switch. on, it indicates that the ICA is faulty. It is recommended to contact the GAC AION sales store for inspection. A Smarter Companion...

  • Page 110: Lane Departure Warning (Ldw)

    Intelligent driving Lane Departure Warning When the LDW is activated, if the vehicle deviates from the lane, the system will send (LDW)* out an alert or make corrective steering adjustment according to the set lane departure The LDW detects the vehicle ahead and lane assist mode.
  • Page 111 Short-time change of lane marking, such on, it indicates that there is a fault in the as ramp or highway exit. system. It is recommended to contact the GAC AION sales store for inspection. Driving on steep slopes or bumpy roads.
  • Page 112 Intelligent driving WARNING WARNING (Cont’d) The LDW is just a driver assistance The system can only adjust limited system and cannot actively control the steering angle, so it can’t promise that vehicle to change lanes or keep it in the the car will be driven back into the lane lane.

  • Page 113: Lane Keeping Assist (Lka)

    Intelligent driving Lane Keeping Assist (LKA)* CAUTION The LKA detects the lane markings in real time Do not color or coat the front windshield through the smart front camera on the front with any material not meeting the windshield, and when the driver is distracted corresponding specifications.
  • Page 114 Intelligent driving Unclear, too thin, worn, blurred or Vehicle control-related parts are improperly dirt/snow-covered lane markings. assembled. Too wide or narrow lanes. WARNING Increase decrease lanes, complicated routing of lane markings. The LKA is only a driver assistance More than two lane markings on the left system, and cannot replace the driver ’s and right sides of the vehicle.

  • Page 115: Driving In Special Weather

    Driving in special weather Driving in fog Driving in rain In case of driving in fog, please read and In case of driving in rain, please read and observe the following. observe the following. DANGER DANGER Before driving, check the lighting system, When driving in rain, do not sharply step turn on the fog lamps, position lamps and on or quickly release the accelerator...

  • Page 116: Driving In Hot Seasons

    Driving in special weather Driving in hot seasons CAUTION In case of driving in hot seasons, please read Before driving over a water-logged road section, determine the depth of water, and and observe the following. the water level shall not be high than the lower edge of the car body.

  • Page 117: Driving In Cold Seasons

    Do not install the tire chain to the antifreeze, which can be purchased at the emergency spare tire. If the front wheel GAC AION sales store and ordinary auto is equipped with a spare tire and the tire parts stores.
  • Page 118 Driving in special weather WARNING (Cont’d) When decelerating, operate the brake pedal reasonably. Emergency braking on snowy or icy roads will cause the vehicle to drift and slip. Maintain an appropriate safety distance from the preceding vehicle, step on the brake pedal slightly, and bear in mind that installing tire chains to the tires can increase certain friction force, but can not prevent sideslip.

  • Page 119: Parking Assist

    Parking assist Tilting down of exterior Reversing Parking Aid (RPA) rearview mirror when The RPA uses the ultrasonic sensor on the reversing* rear bumper of the vehicle to detect the distance between the rear of the vehicle and Some vehicles come with exterior rearview obstacles, assisting the driver to park the mirrors that can tilt down during reversing.

  • Page 120: Surround View Monitor (Svm)

    Parking assist Surround View Monitor (SVM) NOTE When the reversing speed is too high, the The SVM processes the video signals RPA may not work. collected by the front, rear, left and right panoramic cameras of the vehicle, and When the vehicle is reversing at a narrow displays the panoramic image around the place or on an uphill slope, the radar vehicle on the center console display to...
  • Page 121 The SVM can be set in the function button display the alarm information. In this case, area. please contact the GAC AION sales store for inspection in time. Panoramic image interface switching The radar sensor, camera or the...
  • Page 122 Repair of the vehicle body or bumper may cause the direction of the radar sensor to change and affect the functions related to the radar sensor. It is recommended to contact the GAC AION sales store for inspection. radar sensor...

  • Page 123: Preparations Before Getting Off

    “P” button for emergency braking. GAC AION sales store for inspection in time. Towing mode Turning on towing mode When the gear is “N”, the EPB is released,...
  • Page 124 EPB repeatedly. If alarm to remind you. the fault has not been eliminated, it is recommended to contact the GAC AION If the “P” button is pressed during sales store for inspection. driving, the instrument will give an alarm...

  • Page 125: Closing All Windows

    Preparations before getting off Closing all windows CAUTION Closing right front door power window It is forbidden to operate 2 or more windows at the same time. Otherwise, Before getting out of the vehicle, make sure the vehicle may be damaged. all windows are closed.

  • Page 126: Closing Sunroof

    Preparations before getting off Closing sunroof Follow Me Home Closing sunroof by operating sunroof The Follow Me Home provides light when you button park at night and go home. Before getting out of the vehicle, make sure After the Follow Me Home function is turned on the sunroof has been closed.

  • Page 127: Unlocking From Inside

    Unlocking from inside Unlocking doors from inside NOTE Do not frequently operate the central Central unlocking locking switch in a short time. Otherwise, the central locking switch may temporarily fail. In this case, after the door lock motor cools down, the central locking can be used again.

  • Page 128: After Getting Off

    After getting off Safety notes before leaving Before the driver leaves the vehicle, if the doors or windows are not closed, the instrument will give corresponding audible and visible prompts. A Smarter Companion A Smarter Companion...

  • Page 129: Locking From Outside

    Locking from outside Locking vehicle from Exterior rearview mirror outside folding Locking by smart key button Electric folding and unfolding* When the power of the vehicle is turned off, Through the exterior rearview mirror adjusting the driver and passengers leave the vehicle, interface in “My Car”...
  • Page 130 Locking from outside WARNING Before driving, make sure the exterior rearview mirrors are unfolded, and adjust them to an appropriate angle. CAUTION Do not manually fold the rearview mirrors with electric folding function frequently, otherwise the internal folding mechanism will be damaged and the electric folding function will fail.

  • Page 131: Anti-Theft Alarm System

    Anti-theft alarm system Body anti-theft CAUTION Do not modify or disassemble the body Body anti-theft anti-theft system, otherwise the system When the vehicle is locked, the vehicle will will not work properly. enter the anti-theft status. Anti-theft alarm NOTE When the vehicle is locked and any door is Do not leave the key in the vehicle but illegally opened, the alarm will be triggered, carry it with you when leaving the vehicle.

  • Page 132: Charging

    Charging status indication injury in severe cases. If necessary, The charging status of the vehicle can be please contact the GAC AION sales store. known through the vehicle charging indicator lamp, instrument, charging pile, etc.
  • Page 133 As the battery temperature increases charging the vehicle immediately and during the charging, the charging power contact the GAC AION sales store. increases. After the charging, do not disconnect Charging vehicle...

  • Page 134: Ac Charging

    Charging AC charging AC charging General operation steps of AC charging are as follows: While pressing the unlocking button of the charger in the direction of arrow A, insert the charger in the direction of arrow B. After the charger is successfully connected, all turn signal lamps are on for a long time and then go off, and the charger indicator lamp...
  • Page 135 Charging Scheduled charging* The scheduled charging function allows you to schedule the charging time of the vehicle. It is recommended that you schedule the charging time in the off-peak hours to save charging costs. To perform scheduled charging, follow the steps below: 7.
  • Page 136 AION APP. (if out the charger. available) 9. Close the charging port dust cap and the It is recommended to use GAC AION charging port cover, and insert the charger charging pile for scheduled charging. back into the charging pile.

  • Page 137: Dc Charging

    Charging DC charging NOTE (Cont’d) If you encounter special circumstances and cannot unlock the charger, you can unlock it through the emergency unlocking device of the charger. For details, please refer to the “Emergency treatment - Emergency treatment by owner - Emergency unlocking/locking” section.
  • Page 138 Charging 3. Insert the charger as arrowed. After the 7. Pull out the charger as arrowed. charger is successfully connected, all turn 8. Close the charging port dust cap and the signal lamps are on for a long time and charging port cover, and insert the charger then go off, and the charger indicator lamp back into the charging pile to complete the...

  • Page 139: Vehicle Cleaning

    Vehicle cleaning External cleaning 5. Thoroughly flush out the foam from the vehicle. Washing the vehicle frequently helps to protect 6. Do not wipe or press the body surface with its appearance. force to avoid damage to the paintwork. The following conditions are likely to cause 7.
  • Page 140 Vehicle cleaning Lamps Radar and camera areas. Use a special cleaning agent to clean Connectors on the chassis. the lamps. Gently wipe the lamp shade with a piece CAUTION of soft cloth. When cleaning the vehicle with a high-pressure cleaner, special CAUTION attention to the working pressure and...

  • Page 141: Internal Cleaning

    Vehicle cleaning Internal cleaning Cleaning of switches Use a small and soft brush to remove dust Cleaning of instrument panel and other from buttons and switches. interior trims Use a piece of soft cloth dampened with Wipe the instrument panel gently with a piece disinfectant to wipe the surfaces of the buttons of moistened soft cloth during cleaning.
  • Page 142 Vehicle cleaning Cleaning of carpet Clean the dust first with a vacuum cleaner, and then scrub the carpet in circular motions with a sponge or brush dampened with a foam cleaner. NOTE Do not use water, let the carpet dry after cleaning, and keep the carpet as dry as possible.

  • Page 143: Vehicle Maintenance

    If It is recommended to wax the body on a they cannot be cleaned, please use the special regular basis and contact the GAC AION sales plastics cleaner. store regularly (once a quarter) to maintain the...

  • Page 144: Internal Maintenance

    Maintenance of instrument panel Tire pressure After the instrument panel is cleaned, in order Contact the GAC AION sales store to check to slow down the aging of plastic parts such the tire pressure. For the vehicles equipped as the instrument panel, a layer of protective...
  • Page 145 If the damage is not visible from the outside, it is recommended to contact the Do not use tires of different dimensions or GAC AION sales store to check the tires as types, and do not mix summer tires, all season soon as possible.
  • Page 146 If uneven and excessive wear of the maneuvering and braking after the tires is found, please go to the GAC AION winter tires are used. sales store to check the wheel alignment as The maximum speed for winter tires soon as possible.
  • Page 147 If uneven and excessive wear of the tires condition. Therefore, the vehicle shall be is found, please go to the GAC AION driven carefully at a moderate speed to sales store for inspection as soon as prevent accidents.

  • Page 148: Corrosion Protection Measures

    Check the paint and trims of the body. If the paint layer is found to be chipped or cracked, it is recommended to contact the GAC AION sales store for repairs to prevent corrosion. Keep the interior of the compartments dry.

  • Page 149: Long-Term Storage Of Vehicle

    If the vehicle has been parked for more than three months, please confirm whether the instrument has any alarm before using it again, and if any, contact the GAC AION sales store for inspection and repair. A Smarter Companion...

  • Page 150: Adding Oils And Fluids

    Adding oils and fluids Opening and closing hood Opening hood 3. Take out the stay bar and insert it into the position as shown in the figure to fix the hood. Closing hood 1. Pull up the hood release lever in the cab, and then the hood ‘clicks’...

  • Page 151: Adding Windshield Washer Fluid

    Adding oils and fluids Adding windshield washer WARNING fluid After opening the hood, make sure that the stay bar firmly supports the hood to prevent the hood from being closed suddenly. Before driving, ensure that the hood is closed and locked, otherwise, it may suddenly open during driving, resulting in accidents.

  • Page 152: Checking Coolant

    If the coolant is spilled during refilling, wipe it off with a rag to prevent damage to the parts or paintwork. It is recommended to go to the GAC AION sales store to add or change the coolant. Use the same coolant as the original one, and do not mix different types of coolant.

  • Page 153: Checking Brake Fluid

    If the brake fluid is spilled on the paintwork, please wash it with water immediately. It is recommended to go to the GAC AION sales store to add or change the brake fluid. Use the same brake fluid as the original one, and do not mix different types of brake fluid.

  • Page 154: A/C Maintenance

    To clean the A/C filter, you need to remove the glove box first. In order to avoid damage to the vehicle by yourself, it is recommended to contact the GAC AION sales store for operation. NOTE Clean the A/C filter element according to the “Maintenance instructions - Regular...

  • Page 155: Fuse Replacement

    Fuse replacement Checking and replacing fuse Instrument fuse box All circuits on the vehicle are fused to prevent damage to electrical consumers due to short circuits or overloading. These fuses are installed in two fuse boxes, that is, the motor compartment fuse box and the instrument fuse box.
  • Page 156 GAC AION sales store for repair. A Smarter Companion A Smarter Companion...

  • Page 157: Battery Maintenance

    Connect the positive terminal first and GAC AION sales store for repair as soon as then the negative terminal. Never install possible. the terminals in the wrong order, as there will be a risk of fire.

  • Page 158: Maintenance Of Traction Battery

    Try to avoid using electrical consumers leakage may cause a fire. If it happens, for a long time when the vehicle is not it is recommended to contact the GAC started, so as not to cause the battery AION sales store immediately. Do not power loss.
  • Page 159 The operating environment of the vehicle bumped, it is recommended to contact shall be dry, free of corrosive, explosive or the GAC AION sales store for inspection destructive insulation gases or conductive and maintenance. dust, and away from heat sources.
  • Page 160 When the traction battery needs to be replaced or scrapped, it is recommended to contact the GAC AION sales store for recycling and disposal. The sales store will record the vehicle and owner traceability information through the traceability system.

  • Page 161: Emergency Power Supply

    Please read and observe the followings odor or smoke in the vehicle, please stop carefully before discharging your vehicle. discharging the vehicle immediately and contact the GAC AION sales store. WARNING After the discharging, do not disconnect the discharging device with wet hands or...

  • Page 162: Discharging

    Emergency power supply Discharging* NOTE V2L discharger It is recommended to use the discharging function in an environment where the maximum temperature does not exceed 45°C. When using the discharging function in a low-temperature environment, please use it indoors as much as possible to ensure normal discharging.
  • Page 163 Emergency power supply 2. Open the AC charging port dust cap. 4. Turn on the discharging function on the driving and energy consumption interface of the center console display (the red indicator lamp on the discharging power strip comes on), and connect the electrical consumer.
  • Page 164 GAC AION. If required, you can contact the GAC AION sales store for consultation and purchase. It is recommended to use a discharger specially supplied by GAC AION to avoid affecting the discharging function. A Smarter Companion A Smarter Companion...

  • Page 165: Emergency Treatment By Owner

    Emergency treatment by owner Emergency unlocking/ Emergency unlocking/locking by mechanical ocking The mechanical key is inside the smart key. The emergency unlocking/locking features When the door cannot be unlocked/ locked of this vehicle include emergency extension by the smart key, the mechanical key can be hidden door handle,...
  • Page 166 Emergency treatment by owner Emergency locking of passenger’s door Emergency unlocking of liftgate 1. Open the passenger’s door to be locked. When you cannot open the doors and liftgate normally inside the vehicle in an emergency, the liftgate can be unlocked with the emergency unlocking device of liftgate.

  • Page 167: Window Initialization

    If the button is released during the window movement, reinitialize window. If the one-button raising and lowering function and anti-pinch function of power window are still not recovered after the initialization, contact the GAC AION sales store for repair. A Smarter Companion...

  • Page 168: Sunroof Initialization

    If the button is released during the sunroof/shade movement, reinitialize the sunroof/shade. automatic opening/closing function and anti-pinch function of the sunroof/sunshade are still not recovered after the initialization, contact the GAC AION sales store for repair. A Smarter Companion A Smarter Companion...

  • Page 169: Wearing Reflective Vest

    Emergency treatment by owner Wearing reflective vest Setting up warning triangle Location of warning triangle The vehicle is equipped with a warning triangle, which is placed under the trunk carpet and can be used after taking it out and unfolding it. Placement distance of warning triangle The vehicle is equipped with a reflective vest, which you can put in the cabin for use when...

  • Page 170: Emergency Toolkit

    Emergency treatment by owner Emergency toolkit Tire replacement The driver’s tools are located under the trunk Inspecting the wear pattern of tire carpet. Warning triangle There is a raised “tread wear indicator” the front of the tire. If the tread pattern wears to Towing hook the indicator surface, the tire can no longer be used safely and must be replaced immediately.
  • Page 171 Emergency treatment by owner Tire burst Spare tire If a tire burst occurs during driving, operate as follows: 1. Hold the steering wheel with both hands, and do not allow it to rotate freely. 2. Decelerate slowly by depressing the brake pedal gently at the same time.
  • Page 172 Emergency treatment by owner Remove a damaged tire in the following steps: NOTE Spare tires only used temporarily for emergency. In this case, the maximum driving speed shall not exceed 80km/h, the traveled distance shall not exceed 50km, and sharp acceleration and emergency braking shall be avoided.
  • Page 173 Emergency treatment by owner 3. Turn the jack clockwise so that the jack 5. Remove the wheel bolts, and take off the is close to the lifting point of the body. damaged wheel. Install the spare tire in the following steps: 1.

  • Page 174: Jump Start

    If the tire pressure cables and a low voltage battery of another is lower than the standard value, drive the vehicle. vehicle slowly to the nearest GAC AION sales store for inflation. Connecting jumper cable Make sure that all the driver’s tools have Connect the jumper cable in the following been properly placed.

  • Page 175: Emergency Start Of Vehicle

    Emergency treatment by owner Emergency start of vehicle NOTE If the vehicle being rescued cannot be started after several attempts, it is recommended to contact the GAC AION sales store for treatment. Disconnecting jumper cable Disconnect the jumper cable in the following steps: 1.

  • Page 176: Emergency Power-Off Of Vehicle

    Emergency treatment by owner Emergency power-off of vehicle When the vehicle is stopped, if power- off cannot be achieved in the vehicle for some special reasons (such as crash/ black screen of center console), the vehicle power supply can be switched off by pressing and holding the “P”...

  • Page 177: Roadside Assistance

    If the vehicle is stuck on a soft road such as If the vehicle needs to be towed, it shall be sandy, muddy or snowy road, follow the steps towed by the GAC AION sales store or a below to get it unstuck: professional towing company.
  • Page 178 Roadside assistance Installing a towing hook WARNING When installing a towing hook, make sure to tighten it. If the towing hook is loose, it may fall off during towing, causing serious personal injuries or vehicle damage. If the vehicle is stuck in mud or sand, or if it is required to pull the vehicle out with a towing hook due to other circumstances, make sure to observe the precautions...
  • Page 179 Do not fix the towing rope or chain to a suspension component. If the vehicle is difficult to move, do not continue the towing, and contact the GAC AION sales store for towing. Towing with a towing hook is only used to help get the vehicle out of the poor road.

  • Page 180: Road Accident Rescue

    15min conditions permit. until no chemicals remain. In case of an uncomfortable symptom, seek medical 4. Call the GAC AION’s customer service attention immediately. hotline for rescue. 5. If the vehicle is flooded severely, all occupants should be evacuated to a safe place immediately.

  • Page 181: Rescue In Case Of Vehicle Fire

    Roadside assistance Rescue in case of vehicle fire Go to the GAC AION sales store for inspection and maintenance regularly. After the vehicle catches fire, immediately Check for oil leakage regularly, and leave the vehicle and evacuate to a safe place, remove grease and oil stains from the and call the police and rescue phone number.

  • Page 182: Vehicle Information

    NOTE The location and quantity of the VIN are If you need to diagnose whether the not complete. Please refer to the actual vehicle data is normal, contact the GAC vehicle. AION sales store for data diagnosis. A Smarter Companion...

  • Page 183: Vehicle Nameplate And Sticker

    Vehicle information Vehicle nameplate and Vehicle sticker sticker Vehicle stickers include the child safety lock sticker, airbag warning sign, cooling fan warning sticker, high-voltage component Manufacturer’s nameplate warning sticker, etc. Be sure to read and follow the instructions on the stickers. Airbag warning sign The manufacturer’s nameplate is pasted on the near the front door lock catch of B-pillar...
  • Page 184 Vehicle information High-voltage component warning sticker Charging warning sticker The warning sticker for high-voltage The charging warning sticker is located components such as MCU is located on on the charging port cover. the housing of concerning high- voltage component. Automotive energy consumption sign Corporate logo AUTOMOBILE ENERGY CONSUMPTION LABEL...

  • Page 185: Technical Parameters

    Technical parameters Technical parameters of vehicle Item Parameter 4,535 Length Overall Width 1,870 dimensions (mm) Height 1,650 Front 1,600 Wheel track (mm) Rear 1,600 Wheelbase (mm) 2,750 Front/rear overhang (mm) 898/887 Kerb mass (kg) 1,695/1,750 1,615/1,670 959/970 902/935 Axle load Front (kerb mass) (kg)

  • Page 186: Technical Parameters Of Motor

    Technical parameters Technical parameters of motor Item Parameter Motor model TZ184XYA2001 TZ184XYA2002 Drive motor type Permanent magnet synchronous motor Drive mode Rated power (kW) 4,270 Rated speed (r/min) 5,400 Rated torque (N•m) Peak power (kW) Peak speed (r/min) 14,000 14,000 Peak torque (N•m) A Smarter Companion A Smarter Companion...

  • Page 187: Technical Parameters Of Traction

    Technical parameters Technical parameters of traction battery Item Parameter LFP battery Type of battery 294.4 374.4 Rated voltage (V) 172.1 Rated capacity (A•h) Liquid cooling Cooling method -20~55 Charging temperature (°C) -40~60 Storage temperature (°C) IP67 IP rating A Smarter Companion...

  • Page 188: Wheel And Tire Parameters

    Technical parameters Wheel and tire parameters Item Parameter Tire specification 215/55 R17, 215/50 R18, 225/45 R19 Standard tire pressure (kPa) 240~270 Spare tire specifications T125/80 R17 Standard pressure for spare tire 420±10 (kPa) Front wheel toe-in 5'±3' Front wheel camber -13'±30' Kingpin caster angle of 7°14'±45'...

  • Page 189: Technical Parameters Of Brake

    Technical parameters Technical parameters of brake system Item Parameter Type of service brake system Hydraulic brake, disc brake Type of parking brake system Power mode of brake booster Vacuum Free travel of brake pedal (mm) Max. travel of brake pedal (mm) 106.4 Total thickness of front brake lining (mm) Allowable wear thickness of front...

  • Page 190: Type And Filled Amount Of Vehicle

    Technical parameters Type and filled amount of vehicle fluids Item Specification Dosage Remarks Brake fluid DOT4 0.7~0.9L Refrigerant HFC-134a 530~570g A/C system coolant G30, -35°C 1.9~2.3L TGW system coolant G30, -35°C 4.2~5.6L Motor coolant G30, -35°C 3.6~4.2L A mixture of 44% methanol with freezing point of -30°C, 1.8~2.2L Windshield washer fluid...
  • Page 191 Index Index (Arranged in sequential order of Chinese phonetic alphabets) Emergency start of vehicle ..... 167 Wheel and tire parameters ..... 180 AION APP............ 3 Internal maintenance ......136 Introduction to seat belt ......18 Opening doors from inside ......119 Seat belt reminder ........
  • Page 192 Index Cruise Control System (CCS)* ....90 Tire replacement ........162 Maintenance of traction battery ....150 Technical parameters of tractionbattery ...179 Multimedia control panel ......54 Basic operations ........54 Precautions for multimedia use ....60 Integrated Cruise Assist (ICA)*....98 Switching of driving modes......
  • Page 193 Index Adjustment of exterior rearview mirror ..37 Folding of exterior rearview mirror ..121 Surround View Monitor (SVM) ....112 Driving in fog .......... 107 Vehicle start ..........72 Opening and closing hood....... 142 Forward Collision Warning (FCW)* ... 87 Information display ........
  • Page 194 Index Smart key ............ 8 Intelligent High Beam Control (IHBC)* ..82 Autonomous Emergency Braking (AEB)* .. 88 AUTO HOLD..........79 Adaptive Cruise Control (ACC)* ....91 Seat adjustment ........35 Seat ventilation* ........48...

Table of Contents
