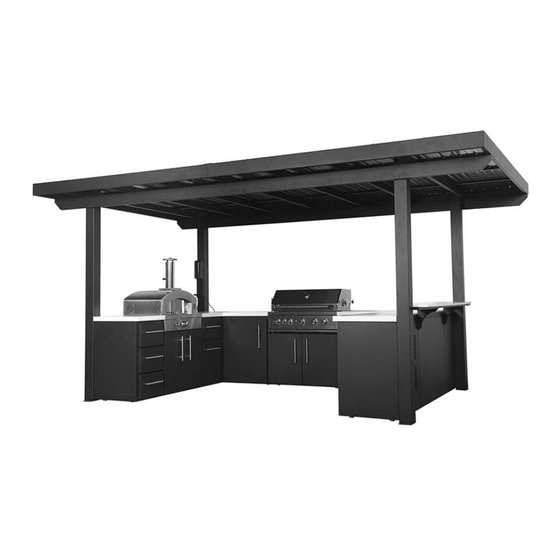

Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 FUSION FIRE OUTDOOR KITCHEN MODEL # : 2304154 Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite...
Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings or concrete pad to attach your structure − Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
Page 3 OWNER'S MANUAL - ANCHORING LAYOUT...
Page 15: Shoulder Bolt
H101132 | TORX SOCKET SCREW SHORT H101054 | SEALANT WASHER H101185 | PHILLIPS FLAT HEAD | 1/4-20 (x35) (x32) (x96) | 8-32x.5 SCREW H101289 | PAN HEAD SCREW H101103 | TORX SOCKET SCREW 1/4-20 (x111) | 8-32x1/2" SS | 1/4-20 (x85) H101053 | STEEL WASHER...
Page 16: Metal Parts
PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the metal and hardware. METAL PARTS: − Organize metal parts by the three-digit, alpha-numeric part label on each bag (ex. A01). −...
Page 17 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Open End Phillips Head Wrenches 1/2" & 9/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets 1/2" & 7/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet Claw Hammer...
Page 18 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
Page 189: Electrical Enclosure
PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY EXTERIOR POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
