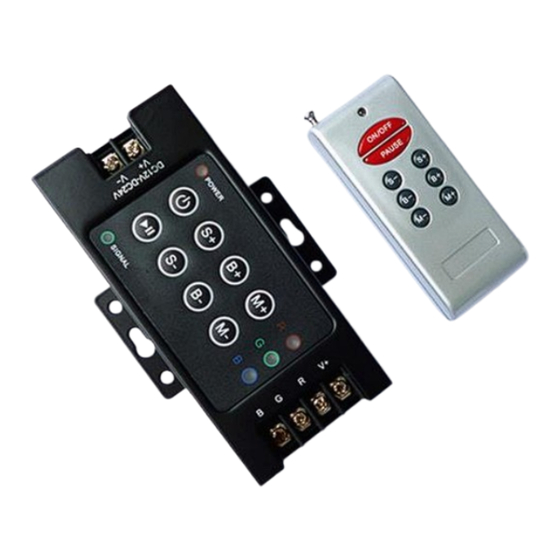

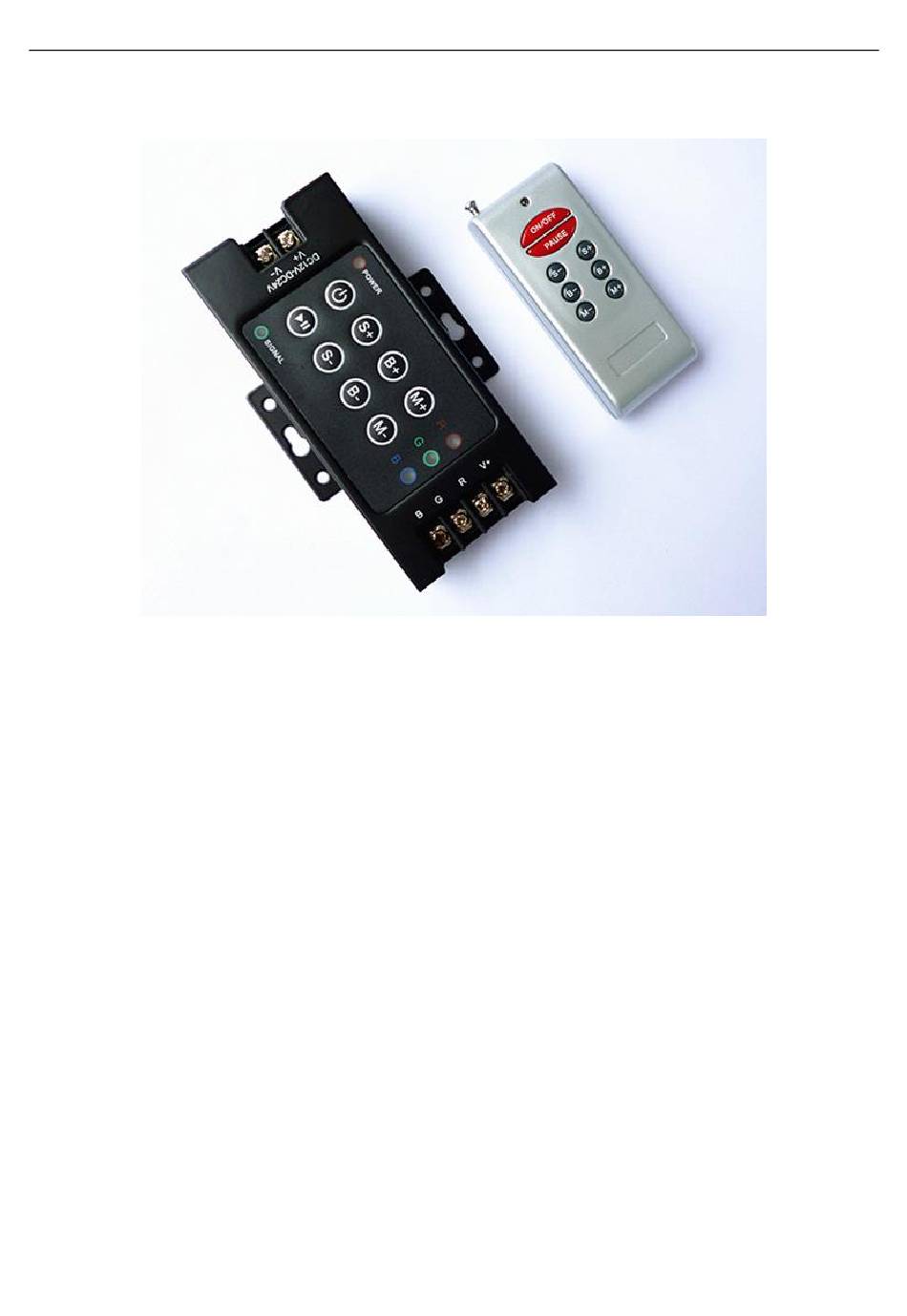

Products name: RF 8Keys RGB Controller
Product Description
This RF 8-key RGB controller adopts the advanced micro control unit, it is used for
controlling a variety of lamp whose source of light is LED. For instance, point source of light,
flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages
such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness,
static color choices and various dynamic changes in lighting effects through wireless remote
control. And according to the actual need of customers, it can carry out jumpy changing, gradual
changing, strobe-flash and other effects of change.
Technical Parameters:
Working temperature:-20-60℃
Input voltage:DC12~24V
Output:3 circuit
Connection mode:Common anode
Controller size:L121×W75×H25mm
package size:L137×W80×H54mm
Net weight:228g
Gross weight:261g
Static power consumption
Output current:<4A/ch or <10A/ch (optional)
Output power: 4A 5V:<60W, 12V:<144W, 24V:<288W
HM-12RGB5A3-10A3RC4
<1W
10A 5V:<150W, 12V:<360W, 24V:<720W
1/6

Advertisement

loading
Need help?

Need help?

Do you have a question about the HM-12RGB5A3-10A3RC4 and is the answer not in the manual?

Questions and answers

Summary of Contents for JS LED HM-12RGB5A3-10A3RC4

  • Page 1 HM-12RGB5A3-10A3RC4 Products name: RF 8Keys RGB Controller Product Description This RF 8-key RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on;...
  • Page 2 External Dimension (Controller) (Remote control) (Packing size) Interface Specifications Power input interface: Adopt the Screw terminal...
  • Page 3: Load Output

    Load output interface: Adopt the Screw terminal Direction for use ● Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power; ● Adopt film button control and RF control, function of remote control is with the same of panel. There are 8keys in total, function of each button as below::...
  • Page 4 Adjusting brightness button, the brightness progression Brightness up will add one when you press the button every time, there are 256 steps; The brightness progression will subtract one when you Brightness down press the button every time; Pattern function key, up direction, there are 25 programs in Mode up all.
  • Page 5: Typical Applications

    Typical Applications Application Circuit: Common Problems Problems Possible cause Solution 1. Lamp does not light after Power cord is not properly Connect the power cord properly power connected, or there is not output or replay the power switching power supply Lamp power cord...
