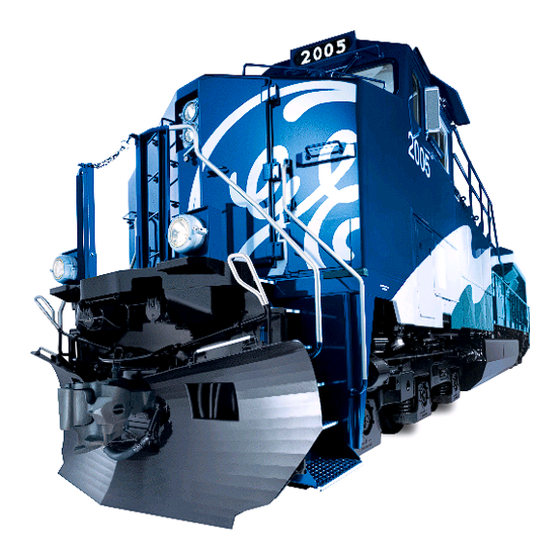

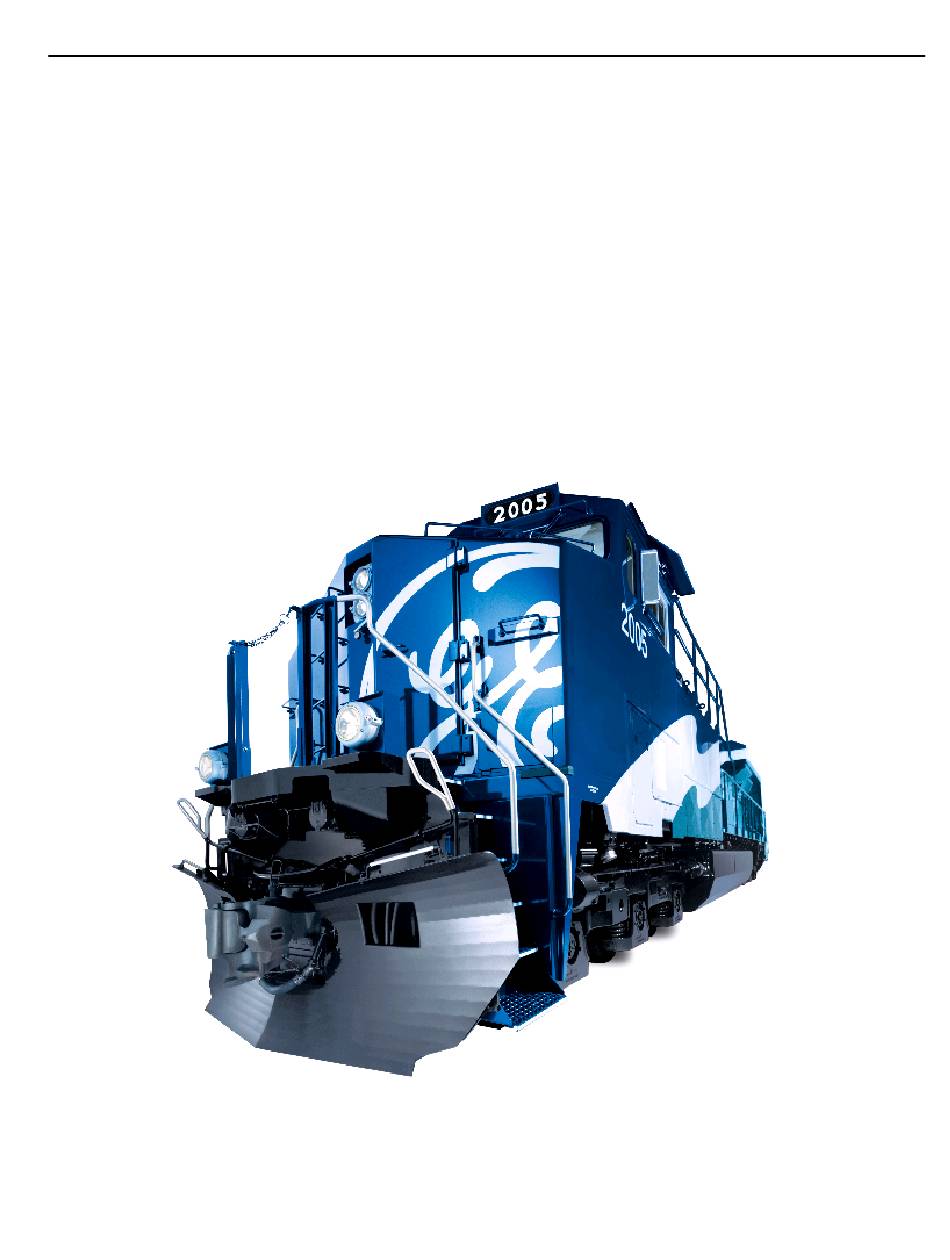

Page 1 GEJ–6915 OPERATING MANUAL DC EVOLUTION SERIES DIESEL–ELECTRIC LOCOMOTIVE ES44DC FOR BURLINGTON NORTHERN SANTA FE CORPORATION ROAD NUMBERS: 7650 – 7799...
Page 2 Locomotive RUNNING MAINTENANCE and BACKSHOP manuals. WELCOME to the GE DC Evolution Series Locomotive. This locomotive is equipped with Consolidated Control Archi- tecture (CCA) and Locomotive System Integration (LSI) –an integrated control system which allows easy access to important operating information.
Page 3: Table Of Contents
Contents GEJ–6915 CONTENTS FOREWORD ..................SUMMARY OF WARNINGS AND CAUTIONS .
Page 4 GEJ–6915 Contents CONTENTS (Cont’d.) Page SANDING ..................OPERATOR MESSAGE SCREEN .
Page 5 ............... DC Evolution Series Location of Apparatus .
Page 6 ..............DC Evolution Series MENU Screen (3500–0) .
Page 7 GEJ–6915 Contents viii...
Page 8: Summary Of Warnings And Cautions
NY SAFETY OR OPERATING RULES MUST TAKE PRECEDENCE OVER ANY INSTRUCTIONS GIVEN IN THIS MATERIAL. PLEASE MAKE A NOTE OF ANY OF THESE RULES IN THE SPACE PROVIDED. GE HAS NO OBLIGA- TION TO KEEP THESE INSTRUCTIONS UP TO DATE AFTER THE ORIGINAL PUBLICATION. THERE ARE NO WARRANTIES OF ACCURACY, MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
Page 9 Safety Precautions GEJ–6915 WARNINGS: (Cont’d) In an EMERGENCY situation, when operating as a single unit or part of a multi–unit consist (locomotives only), moving the INDEPENDENT Brake Handle to FULL APPLICATION is the fastest way to develop brake cylinder pres- sure on the unit/consist up to the full independent brake cylinder pressure setting.
Page 10 Safety Precautions GEJ–6915 OPERATION When the locomotive is in an AESS shut down condition, certain actions will deactivate the AESS system and require a manual engine start. If this happens, either start the diesel engine manually or shut down the loco- motive according to Railroad Operating Procedures and open the battery switch.
Page 11 Safety Precautions GEJ–6915...
Page 12: Introduction
Introduction GEJ–6915 INTRODUCTION ____________________________________________________________________________________________ This publication covers the operational description of the Evolution (ES) DC Locomotive. This manual was designed to help the operator to understand some of the terms and component locations. ACRONYMS AND ABBREVIATIONS The following is a list of common acronyms and abbreviations appearing in this operating manual. Association of American Railroads Audio Alarm Panel Brake Cylinder (Pressure)
Page 13: Consolidated Control Architecture
GEJ–6915 Introduction Consolidated Input/Output Engine Control Unit Locomotive Propulsion System Dynamic Braking System Electronic Air Brake Maintenance and Diagnostic System Locomotive Systems Integration (LSI) Event Recorder System End–of–Train System (HOTD/EOT) Global Positioning Satellite (GPS) System Auto Engine Start/Stop (AESS) System CONSOLIDATED CONTROL ARCHITECTURE The Consolidated Control Architecture (CCA) system monitors and controls all locomotive functions.
Page 14: Cca System Block Diagram
Introduction GEJ–6915 ETHERNET SDIS 3 SDIS 2 SDIS 1 PROTOCOL TRANSLATOR ETHERNET ARCNET HOTD EVENT RECORDER RS–232/ RS–422 AUDIO SERIAL PANEL INTERFACE DISTRIBUTED POWER E–46441A Figure 1. CCA System Block Diagram. important information pertaining to locomotive operation and also provide interface for the operator to control certain locomotive functions.
Page 15: Sdis Keyboard (Typical)
GEJ–6915 Introduction OPERATOR DISPLAY KEYBOARD Menu Help E–43678A Figure 2. SDIS Keyboard (Typical). some of the function keys differ from the LOD. The display on the crew member’s console is designated as the Auxiliary Display. 1. LOD provides the operator with information on the status of the locomotive (described in the Operation Screen section that follows).
Page 16: Consolidated Input/Output Cio Panel
Introduction GEJ–6915 Distance BNSF 7650 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Effort Klbs Throttle WHEEL BRAKE ALERTER UNIT PENALTY SAND SLIP OPEN WARN ALARM BATT MOVE AIR BRAKE MESSAGE LINE 1 AIR BRAKE MESSAGE LINE 2 Horn ID Code: 01234...
Page 17: Dynamic Brake Operation
Locomotive Systems Integration (LSI) The Consolidated Control Architecture system utilizes Locomotive Systems Integration (LSI) industry standard for locomotive control interface. LSI is used to integrate third party systems into the GE control system. EVENT RECORDER SYSTEM The Event Recorder System (ERS) records various parameters related to locomotive status and operation. The Event Recorder (ER) can store up to 72 hours of recorded data.
Page 18: End-Of-Train System
Introduction GEJ–6915 END–OF–TRAIN SYSTEM The End–of–Train system provides a means of monitoring brake pipe pressure on the last car of the train. In two– way configuration, EOT can also vent the brake pipe on the last car during an emergency brake application. The EOT system can be configured for a one–way or a two–way operation.
Page 19 GEJ–6915 Introduction...
Page 20: Location Of Apparatus
Location of Apparatus GEJ–6915 31 32 57–58 –1– VIEW A E–46650 Figure 4. DC Evolution Series Location Of Apparatus (1 of 2).
Page 21 CONTROL AREA NUMBER 7 (CA7) FUEL PUMP CONTROL AREA NUMBER 8 (CA8) TRUCKS – HI AD CONTROL AREA NUMBER 9 (CA9) FUEL FILTERS ELECTRIC HEATER & AIR CONDITIONER TOILET ELECTRONIC LOCKER E–46650 Figure 4. DC Evolution Series Location Of Apparatus (2 of 2).
Page 22: General Data
General Locomotive Data GEJ–6915 GENERAL DATA Operating Cab and Controls ..Wide Cab with Control Stand and Locomotive System Integration (LSI) Wheel Arrangement ................C–C Weight (maximum) .
Page 23 GEJ–6915 General Locomotive Data...
Page 24: Operating Equipment
Operating Equipment GEJ–6915 OPERATING EQUIPMENT ____________________________________________________________________________________________ WARNING: This locomotive is equipped with Auto Engine Start/Stop. The diesel engine may start without operator action. Exercise caution when working around the diesel engine, traction alternator, or Radiator Cab. Ensure that AESS is disabled before performing any maintenance on the locomotive. Failure to do so may result in death or serious personal injury.
Page 25: Two-Way Radio
GEJ–6915 Operating Equipment REF. DESCRIPTION REF. DESCRIPTION RADIO HANDSET MASTER CONTROLLER SMART DISPLAY (SDIS) ALERTER RESET PUSHBUTTON FRONT HEADLIGHT SWITCH GAGE LIGHT DIMMER REAR HEADLIGHT SWITCH AUTOMATIC BRAKE HANDLE LEAD AXLE SAND PUSHBUTTON EOT (REAR) EMERGENCY BRAKE TOGGLE SWITCH SAND PUSHBUTTON INDEPENDENT BRAKE HANDLE BELL PUSHBUTTON HORN SEQUENCER BUTTON (HSB)
Page 26: Mechanical Interlocking
Operating Equipment GEJ–6915 NOTE: If the SDIS with the Operating Display fails, the control system WILL NOT automatically change the Human–Machine Interface Display (HMI) to the Operating Display. It is the operator’s responsibility to change the HMI Display to the Operating Display on the functioning SDIS either via the Screen Controls screen (3000–0) or by pressing the Menu key twice.
Page 27 GEJ–6915 Operating Equipment COMBINED POWER Handle: This handle can be moved into throttle positions at any setting of the Reverser, but into dynamic braking positions only when the Reverser is in FORWARD or REVERSE positions (not on CENTER). Operation Of The Master Controller To operate the controller during locomotive operation, proceed as follows: LEAD OR SINGLE–UNIT OPERATION Operating Handle Set–Up (Reverser Handle removed):...
Page 28 Operating Equipment GEJ–6915 Automatic Brake Handle See Electronic Air Brake Section of this manual for more information (12). Alerter Reset Pushbutton This yellow mushroom–head pushbutton (10) manually resets the Alerter Safety device. This pushbutton, or other Alerter resets, must be operated at set time intervals or a penalty brake application will occur. See appropriate section of this publication for more information.
Page 29: Smart Display Operation Screen
GEJ–6915 Operating Equipment pushbutton is pressed again within two minutes, stopping the flow of sand. Above 15 mph, lead axle sanding is not available. No call for trainline sand is given. Rear Headlight Switch This switch (4) controls the operation of the long–hood headlights and has four positions; OFF, DIM, MED and BRIGHT.
Page 30: Sample Operation Screen Informational Areas
Operating Equipment GEJ–6915 REF. DESCRIPTION REF. DESCRIPTION EQUALIZING RESERVOIR PRESSURE (ER) PENALTY BRAKE ALARM BRAKE PIPE PRESSURE (BP) EOT SYSTEM ALARM BRAKE CYLINDER PRESSURE (BC) EOT MOVE ALARM MAIN RESERVOIR PRESSURE (MAIN) AIR BRAKE MESSAGE WINDOW LAST CAR PRESSURE (REAR) EOT ID CODE (ID CODE) AIR FLOW GAGE (FLOW) EOT MARKER STATUS (MARKER)
Page 31 GEJ–6915 Operating Equipment SPEEDOMETER – The digital portion of the speedometer registers locomotive speed in MPH. The digital por- tion is displayed in three scales – LO scale which reads from 0 to 4.99 mph in 0.01 mph segments, MED scale which reads from 5.0 to 9.9 mph in 0.1 mph segments and HI scale which reads from 10 –...
Page 32 Operating Equipment GEJ–6915 20. AESS STATUS – Text, color and flashing rate changes with AESS status. 21. ALERTER – This timer counts down from 25 indicating the time to an Alerter Penalty Brake. The square will flash red and the alarm will sound until reset or brakes are applied. See Safeguards, Alerts and Shutdowns section of this manual for further information.
Page 33: Control Console Bottom Devices
GEJ–6915 Operating Equipment 44. MENU SOFT KEYS – The Menu Soft key contains 16 possible soft key designations. These soft keys change according to the Operator Screen which is displayed. Soft key designation information only appears over active keys (except for number keys “0” and “9” because they are located outside the screen width). The top row (F1–F8 keys) are tan and the bottom row (1–8 Whole Number keys) are grey .
Page 34: Operator Control Console, Bottom
Operating Equipment GEJ–6915 REF. DESCRIPTION ENGINE RUN CIRCUIT BREAKER GENERATOR FIELD CIRCUIT BREAKER (15A) CONTROL CIRCUIT BREAKER (30A) DYNAMIC BRAKE CIRCUIT BREAKER (2A) GAGE LIGHT SWITCH HEATER–AC CONTROL SWITCH WINDOW HEATER SWITCH STEP LIGHT SWITCH SPOTTER CIRCUIT RECEPTACLE TRAINLINE GROUND RESET PUSHBUTTON 74 VDC RECEPTACLE E–45793A Figure 8.
Page 35: Engine Control Panel Devices
GEJ–6915 Operating Equipment Operation The HVAC Control Switch has eight positions as follows: Shuts off the Air Conditioner and Heater unit. LOW FAN Provides air circulation at low fan speed. HIGH FAN Provides air circulation at high fan speed. LOW HEAT Provides low heat at low fan speed.
Page 36: Engine Control Panel
Operating Equipment GEJ–6915 REF. DESCRIPTION REF. DESCRIPTION WINDOW HEATER CIRCUIT BREAKER ENGINE START BUTTON ROAD CROSSING LIGHTS CIRCUIT BREAKER CROSSWALK LIGHTS SWITCH REFRIGERATOR CIRCUIT BREAKER CONTROL COMPUTER SWITCH RADIO CIRCUIT BREAKER FRONT NUMBER LIGHTS SWITCH DISTRIBUTED POWER CIRCUIT BREAKER OPERATOR’S WALL HEATER SWITCH CAB FAN CIRCUIT BREAKER CREW MEMBER’S WALL HEATER SWITCH SHORT HOOD HEADLIGHT CIRCUIT BREAKER...
Page 37: Engine Control Switch
GEJ–6915 Operating Equipment Engine Control Switch The Engine Control (EC) switch (25) has four positions: START – The Engine Start pushbutton is effective only when the EC switch is in START. When the engine is running and the EC switch is in START position, engine speed is held at IDLE and power cannot be applied to the locomotive.
Page 38: Devices On The Overhead Console
Operating Equipment GEJ–6915 Engine Stop Pushbutton Press the Engine Stop pushbutton (27) to shut down the engine. Crosswalk Lights Switch This switch (17) operates all the locomotive crosswalk lights. Control Compartment Light Switch This switch (18) turns on lights in Control Areas 1, 2, 3, 4 and 5. Front Number Light Switch This switch (19) operates front number lights.
Page 39: Devices In Crew Member's Area
GEJ–6915 Operating Equipment REF. DESCRIPTION REF. DESCRIPTION CREW MEMBER’S DESK LIGHT OPERATOR’S DESK LIGHT CREW MEMBER’S DESK LIGHT DIMMER OPERATOR’S DESK LIGHT DIMMER CREW MEMBER’S DESK LIGHT SWITCH OPERATOR’S DESK LIGHT SWITCH CREW MEMBER’S FAN ON/OFF SWITCH OPERATOR’S FAN CREW MEMBER’S FAN SPEED SELECTOR OPERATOR’S FAN ON/OFF SWITCH CREW MEMBER’S FAN OPERATOR’S FAN SPEED SELECTOR...
Page 40: Horn Pushbutton
Operating Equipment GEJ–6915 REF. DESCRIPTION SMART DISPLAY (SDIS) EMERGENCY BRAKE VALVE DTMF PANEL AND RADIO HANDSET HORN PUSHBUTTON REFRIGERATOR TOILET COMPARTMENT E–45810 Figure 11. Crew Member’s Console. Toilet Compartment Refer to Figure 18 for more information on the Toilet Compartment (6). Refrigerator A refrigerator unit is located under the Crew Member’s desk facing the stairway into the Nose Cab.
Page 41 GEJ–6915 Operating Equipment...
Page 42: Air Brake Equipment
GEJ–6915 Air Brake Equipment AIR BRAKE EQUIPMENT ____________________________________________________________________________________________ ELECTRONIC AIR BRAKE SYSTEM WARNING: STOPPING HAZARD. Under no circumstances should a train be permitted to continue in opera- tion if the brake pipe air pressure falls below 45 psi. If this situation occurs, the train must be stopped and the brake pipe recharged to the railroad particular setting.
Page 43: Electronic Air Brake Controller (Ebv)
GEJ–6915 Air Brake Equipment TARGET DISPLAY AUTOMATIC INDEPENDENT BRAKE HANDLE BRAKE HANDLE E–45786A Figure 12. Electronic Air Brake Controller (EBV). 4. SUPPRESSION (SUP) Position – This position provides a Full Service brake application and, in addition, on locomotives equipped with overspeed control and safety control penalty brakes, these applications will be sup- pressed.
Page 44: Air Brake Equipment In Air Brake Compartment
GEJ–6915 Air Brake Equipment NOTE: If operating as a lead unit, the brake system imposes a one minute time delay before it is possible to recharge the brake pipe after an emergency application. Target Display The Target Display (Figure 12) provides the operator an instantaneous readout of the target Equalizing Reservoir (ER) pressure.
Page 45: Air Brake Compartment Equipment Location
GEJ–6915 Air Brake Equipment AIR BRAKE EQUIPMENT AREA REF. DESCRIPTION ELECTRO–PNEUMATIC CONTROL UNIT (EPCU) HORN PRESSURE SWITCH (HPS) BELL MAGNET VALVE (BMV) DRAIN VALVE MAGNET VALVE (DVMV) HORN MAGNET VALVE (HMV) AUXILIARY AIR CUT–OUT COCK E–45788 Figure 13. Air Brake Compartment Equipment Location.
Page 46: Cut-Out Cocks
GEJ–6915 Air Brake Equipment CUT–OUT COCKS The following manually operated cut–out devices are used on this locomotive: 1. Main Reservoir Cut–Out cock – Located on right side of locomotive near the main reservoirs. 2. Main Reservoir Drain cocks – One located on the end of each main reservoir, usually part of automatic drain valves.
Page 47: Electro-Pneumatic Control Unit (Epcu) Component Location
GEJ–6915 Air Brake Equipment 16 PORTION DBTV PORTION ER PORTION 16CP BCCP ERCP BP PORTION BPCP MR FILTER PSJB 20 PORTION 20CP 13 PORTION 13CP BC PORTION BCCP DEAD ENGINE CUT–OUT E–43344C Figure 16. Electro–Pneumatic Control Unit (EPCU) Component Location.
Page 48: Other Equipment
Other Equipment GEJ–6915 OTHER EQUIPMENT ____________________________________________________________________________________________ ELECTRONIC EQUIPMENT ALCOVE NOTE: Numbers in parentheses ( ) refer to Items found on Figure 17 of this publication unless noted otherwise. Electronic Equipment Compartment Light The Electronic Equipment Compartment Light (1) provides illumination of the LSI Rack. Protocol Translator The Protocol Translator (2) is mounted in the electronic equipment alcove..
Page 49: Electronic Equipment Locker
GEJ–6915 Other Equipment REF. DESCRIPTION COMPARTMENT DOME LIGHT PROTOCOL TRANSLATOR INVERTER HEAD OF TRAIN DEVICE 15 VOLT POWER SUPPLY INTEGRATED PROCESSOR MODULE EVENT RECORDER DISTRIBUTED POWER RADIO YARD DOWNLOAD RADIO CAB DOME LIGHT SWITCH TOILET COMPARTMENT LIGHT SWITCH NOSE CAB LIGHT SWITCH GPS MODULE CELL MODEM (IF INSTALLED) E–45796A...
Page 50: Other Operator Cab Features
Barrier Bar to the vertical position. BLOWERS AND FANS The DC Evolution Series locomotive uses electric motor–driven blowers to ventilate the traction motors and alterna- tor. An electric motor–driven blower also exhausts dirty air from the spin filters. The radiator fan and air–to–air inter- cooler fans are also driven by an electric motor.
Page 51: Typical Toilet Compartment
GEJ–6915 Other Equipment REF. DESCRIPTION COMPARTMENT LIGHT TOILET SEAT COVER DISPENSER GRAB HANDLE VENT HOSE TOILET LID BUMPER TOILET PAPER DISPENSER FLUSH HANDLE TOILET LID AND SEAT ASSEMBLY VENT TOILET ASSEMBLY E–45794 Figure 18. Typical Toilet Compartment.
Page 52: Overhead Dome Light And Wiper Controls
Other Equipment GEJ–6915 LIGHT SWITCH REAR FRONT WINDOW WIPER WIPER WASHER LIGHT E–45797 Figure 19. Overhead Dome Light And Wiper Controls. E–46653 Figure 20. Operator’s/Crew Member’s Overhead Speaker.
Page 53: Location Of Control Areas
GEJ–6915 Other Equipment AIR BRAKE EQUIPMENT CONTROL ELECTRONIC AREA 8 ENGINE EQUIPMENT CONTROL CONTROL LOCKER CONTROL AREA 4 PANEL AREA 5 –1– CONTROL CONTROL CONTROL CONTROL AREA 3 AREA 1 AREA 2 AREA 9 CONTROL CONTROL AREA 1 AREA 9 CONTROL CONTROL AREA 7...
Page 54: Air Compressor
GEJ–6915 AIR COMPRESSOR DC Evolution Series locomotives use an air compressor driven by an electric motor (Figure 22). Motor speed and compressor loading are controlled by an SDIS. The Air Reservoir Pressure Sensor (ARPS), found on the compressor control panel (Figure 23), monitors main reservoir pressure and provides a pressure signal through the Concentrated Input/Output (CIO) to the control system.
Page 55: Air Compressor Control Panel (Ccp) And Piping
GEJ–6915 Other Equipment FILTER AIR RESERVOIR CUT–OUT PRESSURE COCK SENSOR VALVE (ARPS) GAGE & TEST FITTING COMPRESSOR MAGNET VALVE (CMV) E–45785 Figure 23. Air Compressor Control Panel (CCP) and Piping.
Page 56: Miscellaneous Equipment
Other Equipment GEJ–6915 MISCELLANEOUS EQUIPMENT Main Reservoir Safety Valve The safety valve is located in the piping between the MR1 and MR2 main reservoirs. It is set to open at 150 psi (1034 kPa). OTHER GAGES 1. Engine Lubricating–Oil Dipstick – Located on both sides of the engine. The stick is marked FULL and LOW. Proper level with the engine idling is between FULL and LOW.
Page 57: Cooling-Water Fill Box
GEJ–6915 Other Equipment BLANKING PLATE WATER FILL COCK WATER FILL WATER FILL (CARROT) CONTROL SWITCH E–45783 Figure 25. Cooling–Water Fill Box.
Page 58 Other Equipment GEJ–6915 DIPSTICK OIL FILL CAP E–45784 Figure 26. Air Compressor Fill Cap and Oil Level Dipstick.
Page 59: Winter Operation
GEJ–6915 Other Equipment WINTER OPERATION Winter/Summer Doors This locomotive has winter/summer doors in the Engine Cab wall of the engine air intake compartment. These doors provide an additional way of drawing air to the engine in cold climates when snow or ice might block the air inlet screens or plug the plastic primary air cleaners.
Page 60 Other Equipment GEJ–6915 E–46688 Figure 28. Maintenance Battery Switch.
Page 61 GEJ–6915 Other Equipment...
Page 62: Safeguards, Alerts And Shutdowns
GEJ–6915 Safeguards, Alerts and Shutdowns SAFEGUARDS, ALERTS AND SHUTDOWNS ____________________________________________________________________________________________ ALERTER The Alerter Reset Switch (Item 10, Figure 5) manually resets the Alerter Safety device. This switch must be operated at set time intervals or a penalty brake application will occur. The Alerter promotes safe train operation by monitoring various operator movements to ensure the alertness of the operating crew.
Page 63: Ground Cut-Out Switch
GEJ–6915 Safeguards, Alerts and Shutdowns Distance BNSF 7650 100 120 0.01 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb Cntr Idle ID Code: 01234 Marker: Enabled Ind Brk Auto Brk Cut In Lead Press Any Key To Silence Alarm.
Page 64 GEJ–6915 Safeguards, Alerts and Shutdowns BARRING–OVER SWITCH COVER E–45548 Figure 30. Engine Barring–Over Switch. TEST COOLING WATER SWITCH GREEN INDICATING LIGHT ENGINE ENGINE STOP STOP PUSH PUSHBUTTON BUTTON AUTOMATIC WATER DUMP E–45789 Figure 31. Engine Stop Pushbutton, Cooling Water Indicator, and Automatic Water Dump.
Page 65: Motor And Speed Sensor Cut-Out Switch Functions
GEJ–6915 Safeguards, Alerts and Shutdowns Ground Current Leakage (Amperes) Res lt Result Motoring or Self Load Dynamic Brake 0 to 0.5 0 to 0.25 No deration 0.5 to 0.93 0.25 to 0.47 Propulsion link voltage will be derated in proportion to leakage current.
Page 66: Locked Axle Cut-Out Switch Function
GEJ–6915 Safeguards, Alerts and Shutdowns LOCKED AXLE CUT–OUT SWITCH FUNCTION NOTE: Before silencing the Locked Axle Alarm using this switch, ensure the wheels ARE rolling. Follow Railroad Regulations regarding use of this switch. To manually cut out the Locked Axle Alarm, refer to the procedure in the Switches section of this manual. OIL AND WATER TEMPERATURE AND PRESSURE Horsepower and/or engine speed will be altered if one of the following conditions exist: Cold Engine...
Page 67: Overspeed - Locomotive
GEJ–6915 Safeguards, Alerts and Shutdowns OVERSPEED – LOCOMOTIVE When a locomotive equipped with overspeed protection exceeds the maximum permissible speed(75 MPH), an Overspeed application is initiated. An audible alarm sounds from the AP. At the same time, the speedometer graphic changes to yellow (alerting the operator) for the overspeed warning speed range and to red above the overspeed limit.
Page 68: Sanding
GEJ–6915 Safeguards, Alerts and Shutdowns 3. When Step 2 limit of wheelslip is exceeded, a moderate power reduction goes into effect and sanding continues. 4. If a large difference in wheel speeds is detected, a quick power output removal accompanied by a trainlined wheelslip indication results and the WHEELSLIP indicator light on the operator display screen appears.
Page 69: Operator Messages
GEJ–6915 Safeguards, Alerts and Shutdowns Operator Messages Warning: Locked Axle Protection Changed Traction Motor(s) and Speed Sensor(s) Cutout Dynamic Brake And Tractive Effort Limited Traction Motor(s) and Speed Sensor(s) Cutout Traction Motor(s) Cutout – Manual No Battery Jog Can’t Talk With Electronic Air Brake (EAB) Unit Ready Attempting Reset..
Page 70: Operation
Operation GEJ–6915 OPERATION ___________________________________________________________________________________________ ON POWER–UP On Power–up, display screens will not appear for up to 60 seconds. The Locomotive Operating display and Auxiliary display default to screen 0000–0 (Figures 33 and 37), while the HMI display defaults to the More Menu screen 0000–1 (Figure 36).
Page 71 GEJ–6915 Operation Key (1) Distance Start/Stop/Reset Pressing this key will activate the Distance Counter on that SDIS. Soft Key designation will change to Distance Stop. Pressing Distance Stop causes the Distance Counter to stop counting and the key changes to Distance Reset. Pressing Distance Reset resets the Distance Counter to 0 or preset value depending on mode, and the key to Dis- tance Start.
Page 72 Operation GEJ–6915 Key F8). Exit Pressing this key will display the screen one level back or Screen 0000–0 (Main Operating Screen). NOTE: For the HMI Display, pressing the F8 Exit key will always display Screen 0000–0 (Main Operating Screen). Key 1). Statistics Allows the operator to view locomotive life statistics.
Page 73 GEJ–6915 Operation Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Effort Klb Throttle MOVE ID Code: 01234 Marker: Enabled Auto Brk Ind Brk Lead Freight Ready 0000–0 End Of Distributed Operator Speed...
Page 74 Operation GEJ–6915 Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb MOVE ID Code: 01234 Marker: Enabled Ind Brk Auto Brk Lead Freight Ready 0000–1 Event Data Loco Exit Recorder...
Page 75 GEJ–6915 Operation Distance BNSF –99999 7650 Ready 0000–0 End Of Operator Speed Switches Brake Train Messages Control Distance Distance Measured Screen More Menu Start Setup Mile Controls Go To Screen 1100–0 Go To Screen 0000–1: Activates Distance Go To Screen 1300–0: Allows access to Mea- Allows access to Counter.
Page 76 Operation GEJ–6915 Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb Reserved For ATCS Ready 0000–1 Event Data Adjustable Trip Loco Exit Recorder Download Parameters Monitor Monitor Screen Statistics Controls...
Page 77 GEJ–6915 Operation Distance BNSF 7650 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Throttle Reverser Effort Klb MOVE Reserved For ATCS ID Code: 01234 Marker: Enabled Auto Brk Ind Brk Freight Lead Ready 0000–0 End Of Operator Train...
Page 78 Operation GEJ–6915 Distance BNSF 7650 Reserved For ATCS Ready 0000–1 Event Data Adjustable Trip Loco Exit Recorder Download Parameters Monitor Monitor Screen Statistics Controls Go To Screen 9200–0: Go To Screen 9700–0: Go To Screen 4000–0: Go To Screen 0000–0: Allows viewing of the Views the list of Locomotive Data...
Page 79: Preparation For Operation
GEJ–6915 Operation PREPARATION FOR OPERATION The following checks and inspections should be made in accordance with Railroad Rules and Regulations : WARNING: STOPPING HAZARD. Under no circumstances should a train be permitted to continue in opera- tion if the brake pipe air pressure falls below 45 psi. If this situation occurs, the train must be stopped and the brake pipe recharged to the railroad particular setting.
Page 80: Starting Engine
Operation GEJ–6915 7. Move the Engine Control switch to START. 8. Properly position the MU Headlight Selector switch. 9. Ensure the MU SHUTDOWN toggle switch located on the Overhead Console is not engaged. 10. Check that the Combined Power Handle is in IDLE and the Reverser Handle is on CENTER. STARTING ENGINE 1.
Page 81 GEJ–6915 Operation Distance BNSF 7650 80 100 120 0.00 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb Cntr Idle Engine Start In Progress ... Engine Speed Battery Volts Lube Oil Fuel Pressure Pressure Cranking ...
Page 82: Cold Weather Engine Starting/Warm-Up
Operation GEJ–6915 COLD WEATHER ENGINE STARTING/WARM–UP During cold weather conditions, when a locomotive has been shutdown for a period of time, locomotive horsepower will automatically be derated until the lubricating oil temperature reaches a predetermined level. This special warm–up period is required to avoid equipment failure from thermal or overload strain. See Safeguards, Alerts and Shut- downs section of this manual.
Page 83: Moving A Train
GEJ–6915 Operation 7. Perform an Air Brake Departure Test in accordance with Railroad Operating Procedures . 8. Optional Brake Pipe Leakage Test for use without airflow indicator/gage test method; proceed as follows: a. With the brake system fully charged and with the SDIS Electronic Air Brake Setup Screen showing LEAD/ CUT IN, move the Automatic Brake Handle promptly toward the FULL position until the equalizing reservoir pressure has been reduced by 15 psi (as noted on the display screen);...
Page 84: Stopping A Train
Operation GEJ–6915 3. Release the brakes completely. NOTE: The BC Gage Screen marker flashes yellow if the locomotive speed is greater than 10 mph and BC is greater than 3 psi. When the locomotive speed is greater than 10 mph and BC is greater than 10 psi, the alarm bell will ring continuously until reset.
Page 85: Before Leaving Locomotive
GEJ–6915 Operation NOTE: On some older units this will not turn off the fuel pumps. Pushing the STOP pushbutton on each unit will turn them off. 6. Secure the locomotive in accordance with Railroad Rules and Procedures . BEFORE LEAVING LOCOMOTIVE 1.
Page 86: Operating As A Leading Unit
Operation GEJ–6915 2. Move the Combined Power Handle to SET–UP position; pause, then advance the Combined Power handle into the BRAKING sector as desired. 3. After the slack is compressed, manipulate the Combined Power Handle until the desired braking effort is obtai- ned.
Page 87: Operating As A Trailing Unit
GEJ–6915 Operation OPERATING AS A TRAILING UNIT NOTE: Refer to ELECTRONIC AIR BRAKE section of this manual for Air Brake Setup if more information is needed. Air Equipment Set–up 1. Make a Full Service application with the Automatic Brake handle. 2.
Page 88: Dead Heading (Dead-In-Train)
Operation GEJ–6915 If the units in the locomotive consist are geared for differing maximum speeds, do not run at speeds in excess of that recommended for the unit having the lowest maximum permissible speed. Similarly, do not operate at low speeds long enough to exceed the specified traction motor ratings on any of the units in the locomotive consist.
Page 89 GEJ–6915 Operation PARKING BRAKE CONTROL POWER APPLY PRESS SWITCH FOR 1 SECOND MANUAL TO ACTIVATE MODE RELEASE E–46430A Figure 40. Electric Parking Brake Control Panel. E–46680 Figure 41. Manual Handbrake Wheel On initial power–up, The APPLY and RELEASE lights (Items 2 and 5) may alternately flash signaling that the brake unit may not be in a fully applied or fully released position.
Page 90 Operation GEJ–6915 turned off and tagged out. The brake unit should then be operated in the standard manual mode until repairs can be made at the next qualified service facility To change the brake from the Auto to Manual mode, pull the knob of the selector handle (Figure 41) and rotate the handle to the MANUAL position.
Page 91 GEJ–6915 Operation...
Page 92: Locomotive Operation By Sdis Screen
Screen (0000–0, Figures 33, 35, or 37) and the Main Operation Screen, More Menu...Screens (0000–1, Figures 34, 36, or 38). Pressing the MENU key will produce the DC Evolution Series MENU screen (3500–0) on the SDIS (Figure 42). Distance BNSF...
Page 93 GEJ–6915 Locomotive Operation By SDIS Screen...
Page 94: Electronic Air Brake
Electronic Air Brake GEJ–6915 ELECTRONIC AIR BRAKE ____________________________________________________________________________________________ INTRODUCTION The Air Brake Setup (Figure 43) function receives data from the IPM. Operators use this screen to verify or adjust Air Brake settings of the controlling unit. Screen parameters may NOT be changed if the unit is moving (faster than 0.1 mph).
Page 95: Operation
GEJ–6915 Electronic Air Brake OPERATION Pressing soft key position F1 (Air Brake) on the Main Operation Screen (screen 0000–0, Figures 33 or 35) will dis- play screen 2000–0 (Figure 43). Trail units will have a similar screen as shown in Figure 44. Follow Railroad Operating Procedures for this operation .
Page 96: Electronic Air Brake Set-Up, Lead
Electronic Air Brake GEJ–6915 b. Press key position F6 (Trail/Lead) to toggle the displayed Independent Brake indicator if the Reverser han- dle is on CENTER. Selecting Trail also selects Cut Out for the Automatic Brake. When Trail is selected, key position F4 (Auto Brake Mode) is not available. c.
Page 97: Air Brake Troubleshooting
GEJ–6915 Electronic Air Brake 2. Move the Automatic Brake and Independent Brake handles to FULL SERVICE (FS) and FULL. 3. While the system is exhausting press soft key position F1 (Air Brake) on the Main Operating Screen (screen 0000–0, see Figure 33 or 35) to display screen 2000–0. 4.
Page 98 Electronic Air Brake GEJ–6915 NOTE: If the above Reset Strategy does not reset the situation, proceed as follows: 1. Toggle the Air Brake Computer circuit breaker on the EC Panel (Figure 9) and wait for system to power on. 2. Move the Automatic Brake Handle to SUPPRESSION and hold for at least eight seconds, then return handle to RELEASE.
Page 99 GEJ–6915 Electronic Air Brake...
Page 100: End Of Train
End Of Train GEJ–6915 END OF TRAIN ____________________________________________________________________________________________ INTRODUCTION The End Of Train (EOT) function, through the HOTD (Head of Train Device), receives data from the rear–of–train– mounted transmitter/receiver or EOT device. This function allows the operator to gather pertinent system data and ensure adequate notification on trainline breaks.
Page 101: Operation
GEJ–6915 End Of Train Distance BNSF 7650 80 100 120 0.00 12 9 6 3 0 3 6 9 121518 Main Rear Flow Effort Klb Reverser Throttle Cntr Idle RF NO End Of Train Setup EOT ID Code (Current) % Battery Used Comm Test 00000 Failed...
Page 102: Operating Procedure
End Of Train GEJ–6915 c. Pressing key position F8 (Cancel) will return the operator to the EOT Setup screen (2100–0) without a change to the EOT ID code. d. All the numeric keys (0–9) are active and are used to enter EOT ID number. 2.
Page 103 GEJ–6915 End Of Train 3. Once the Test has passed, have Crew Member press the test button on the EOT. If test passes, soft key F7 (Arm Two Way) will appear (Figure 48). Arm the EOT System by pressing F7 (Arm Two Way) (Figure 48) within five seconds.
Page 104 End Of Train GEJ–6915 Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Effort Klb Throttle Cntr Idle End Of Train Setup % Battery Used Comm Test EOT ID Code (Current) Passed 00000 EOT Status...
Page 105 GEJ–6915 End Of Train...
Page 106: Distributed Power System Operation Summary
GEJ–6915 Distributed Power System Operation Summary DISTRIBUTED POWER SYSTEM OPERATION SUMMARY ____________________________________________________________________________________________ NOTE: The following information is summary in nature. Please refer to the Locotrol LEB System Opera- tor’s Manual for more detailed system operation information. NOTE: The AESS system is disabled when Distributed Power is active. INTRODUCTION The Distributed Power Control (DPC) System, is integrated with the Electronic Air Brake (EAB) and Consolidated Control Architecture (CCA) systems and is designed to provide synchronous automatic and independent control from a...
Page 107: Operating Procedure
GEJ–6915 Distributed Power System Operation Summary (traction and dynamic braking) by the operator via the Distributed Power System screens. For example, braking can exist on the lead consist and motoring can exist on the remote consist. Safety interlocks do not allow traction on the front of the train and braking on the rear unless the Reverser handle is in the reverse position.
Page 108 GEJ–6915 Distributed Power System Operation Summary Distributed Power Operation W SLIP SAND UNIT ALM PENALTY ALERTER ABCDEFG ABCDEFG ABCDEFG ABCDEFG BATT MOVE ABCDEFG System Alarm DP Mode: Run Front Back COMM A: 6000 G: 4567 B: 602 C: 7013 E: 273 D: 2537 Throttle Idle...
Page 109 GEJ–6915 Distributed Power System Operation Summary Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Effort Klb Throttle MOVE ID Code: 01234 Marker: Enabled Auto Brk Ind Brk Freight Lead Ready 0000–0 Trainline...
Page 110 GEJ–6915 Distributed Power System Operation Summary Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Effort Klb Reverser Throttle MU ALRM W SLIP SAND BK WARN PENALTY ALERTER ABCDEFG ABCDEFG ABCDEFG MOVE ABCDEFG ABCDEFG...
Page 111 GEJ–6915 Distributed Power System Operation Summary Distributed Power Operation W SLIP SAND UNIT ALM PENALTY ALERTER ABCDEFG ABCDEFG ABCDEFG ABCDEFG BATT MOVE ABCDEFG System Alarm DP Mode: Run Front Back Comm A: 6000 G: 4567 B: 602 C: 7013 D: 2537 E: 273 Throttle Idle...
Page 112: Slow Speed While Distributed Power Active
GEJ–6915 Distributed Power System Operation Summary About To Command The Back Group To Brake 2300–2 Are You Sure You Want To Do This ? Execute Cancel E–45474 Figure 53. DP Operations Main Menu (Execute/Cancel) Screen (2300–2). F3, F4 AND F5 SOFT KEY MATRIX. FRONT BACK GROUP...
Page 113 GEJ–6915 Distributed Power System Operation Summary...
Page 114: Slow Speed Control
GEJ–6915 Slow Speed Control SLOW SPEED CONTROL ____________________________________________________________________________________________ INTRODUCTION The Slow Speed Control function (Figure 54) allows the operator to have finer speed control of locomotive operations for loading/unloading similar to a pacesetter or a hump control feature. NOTE: This function is NOT available at the Auxiliary Display or if the locomotive is set up for Trail. “Speed Control Prohibited! Conditions Do Not Allow.
Page 115: Operation
GEJ–6915 Slow Speed Control OPERATION Pressing soft key position F6 (Speed Control) on the Main Operating Screen (screen 0000–0, see Figure 33 or 35) will display screen 1300–0 (Figure 54). Follow Railroad Operating Procedures for this operation. The active keys and a brief description of operation are as follows: 1.
Page 116 GEJ–6915 Slow Speed Control NOTE: The Speed Error Gage tracks the actual locomotive MPH against the set MPH when this function is ON (gage disappears when this function is OFF). The Speed Error Gage will read zero (no bar graph) if the locomotive is not currently loading.
Page 117 GEJ–6915 Slow Speed Control Distance BNSF 7650 100 120 12 9 6 3 0 3 6 9 121518 0.01 Main Rear Flow Reverser Effort Klb Throttle Slow Speed Control Slow Speed Plug Mode Speed Error Target Speed Too Slow Too Fast 2.57 Use Number Keys To Enter New Target Speed, F4 as Decimal Point.
Page 118: Power Reduction
GEJ–6915 Slow Speed Control Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb Manual Power Reduction Power Reduction Notch Power % Ready 1310–0 Reduction Exit E–46340A Figure 57. Manual Power Reduction Screen (1310–0).
Page 119 GEJ–6915 Slow Speed Control Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Effort Klb Reverser Throttle Manual Power Reduction Power Reduction Notch Power % Manual Power Reduction Will Be Turned Off If This Screen Is Exited! Are You Sure? 1310–1 Cancel...
Page 120: Plug Loading
GEJ–6915 Slow Speed Control PLUG LOADING Plug Loading is the mode of operation in which the Reverser handle is placed in the position opposite of the intended direction of travel of the locomotive and the Combined Power handle is placed in a powered Notch. This technique is required when operating on a downgrade and the locomotive must hold back the train to limit speed.
Page 121 GEJ–6915 Slow Speed Control...
Page 122: Switches
INTRODUCTION The purpose of the Switches Screens is to allow the operator to view and control the various system functions which were formerly accessed by physical switches but are now integrated into the DC Evolution Series Locomotive control system. OPERATION Pressing soft key position F7 (Switches) on the Main Operating Screen (screen 0000–0, Figure 33 or 35) will display...
Page 123 GEJ–6915 Switches NOTE: If the Dynamic Brake Switch is in the cut–out position, upon request for Dynamic Brake, the control will drop power to IDLE. Follow Railroad Regulations governing use of this switch. 2. Pressing key position F2 (Locked Axle) will order the locomotive control system to cut–out the Locked Axle Alarm function.
Page 124: Dynamic Brake Cut-Out Switch Function
GEJ–6915 Switches NOTE: For Speed Sensor cut–out, note the following: 1. Speed sensors do not need to be cut out on cut–out motors. 2. Speed sensor switches are to be used only to cut out faulty sensors; however, ensure that the sensor is at fault and not that it is indicating a locked axle or excessive wheel slip, etc.
Page 125 GEJ–6915 Switches Power Limit Switch This switch (8) has two positions, NORMAL (OFF) and NOTCH 7 (ON). When the locomotive consist is in Notch 8 and the lead unit is slipping excessively, the Power Limit switch can be moved to NOTCH 7 to reduce power while the trailing units are operating at full power.
Page 126: Distance Counter
Distance Counter GEJ–6915 DISTANCE COUNTER ____________________________________________________________________________________________ INTRODUCTION The Distance Counter (Figure 61) displays distance travelled in feet. This function allows the Crew to set, reset or preset the counter for trip information. The counter operates independently from the counter on the other SDISs. The counter counts “up”...
Page 127 GEJ–6915 Distance Counter Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb MOVE Distance Counter Setup Distance Counter Preset (feet) Distance Counter Mode Count Up From Zero 1234 Count Down From Preset Ready...
Page 128 Distance Counter GEJ–6915 Distance BNSF 7650 80 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb MOVE Distance Counter Setup Distance Counter Preset (feet) Distance Counter Mode Count Up From Zero 5000 Count Down From Preset Use Number Keys To Enter New Preset Value, Back Space To Modify...
Page 129 GEJ–6915 Distance Counter...
Page 130: Measured Mile
Measured Mile GEJ–6915 MEASURED MILE ____________________________________________________________________________________________ INTRODUCTION The purpose of the Measured Mile Function is to assist the operator in conducting a measured mile check. OPERATION Pressing soft key position 3 (Measured Mile) on the Main Operating Screen (screen 0000–0, see Figure 33 or 35) will display screen 1100–0 (Figure 63).
Page 131 GEJ–6915 Measured MIle 2. Upon the end of the measured mile press F3 (Stop Mile). The computer will stop the test and compute the average speed. The Stop Mile button will change to Start Mile after it is pressed. 3. The Operator message area will read “Average Speed Assuming A Measured Mile Was xxx.xx MPH” (Figure 64).
Page 132: Auto Engine Start/Stop (Aess)
Auto Engine Start/Stop GEJ–6915 AUTO ENGINE START/STOP (AESS) ____________________________________________________________________________________________ INTRODUCTION The AESS System enhances fuel savings. When this system is active, it shuts the diesel engine down during periods of inactivity. The system monitors certain locomotive parameters and restarts the engine as needed. With AESS, the diesel engine may start and stop without operator intervention.
Page 133 GEJ–6915 Auto Engine Start/Stop The operator is able to view information displayed on the AESS screens. When AESS is inactive, the Main Operation Screen will display as screen 0000–0 (Figure 65). Distance BNSF 7650 100 120 12 9 6 3 0 3 6 9 121518 28.00 Main Rear...
Page 134: Operation
Auto Engine Start/Stop GEJ–6915 When AESS is active, the Main Operation Screen will display as screen 0000–0 (Figure 66). Distance BNSF 7650 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Effort Klbs Throttle Cntr Idle AUTOSTOP...
Page 135 GEJ–6915 Auto Engine Start/Stop <<< AAR Gauges Go Here >>> AESS REVERSER Auto Engine Start/Stop Status Reverser Centered AESS Not Suspended Please Center Reverser ! Throttle In Idle Loco Not Moving Ind or Auto Brake Loco Conditions Applied Allow AESS Not In Self Test, Self Stop Limit Not Load, or Jog...
Page 136 Auto Engine Start/Stop GEJ–6915 Locomotive speed is zero. The Auxiliary Cab door is closed and the Barrier Bar is down. Conditions for Automatic Start Up NOTE: The SDIS must display AUTO ENGINE START CONTROL ACTIVE and ENG AUTO/STOPPED indicator for an Automatic Start Up to take place. Any AESS trigger (certain locomotive system parameters) outside of its limits will initiate Automatic Start Up.
Page 137 GEJ–6915 Auto Engine Start/Stop AESS SDIS Alarm Bar Indicator The AESS indicator will be illuminated whenever AESS is active. The current AESS system status is summarized by the indicator text (Figures 66 and 67). Indicator Text Meaning <no indicator> AESS inactive. AUTOSTOP hh:mm:ss Auto stop may occur in hh:mm:ss.
Page 138: Screen Controls
Screen Controls GEJ–6915 SCREEN CONTROLS ____________________________________________________________________________________________ INTRODUCTION Screen Controls (Figure 68) enables the operator to change on which (or both) SDIS display the Main Operation (gages) Screen (0000–0) will be displayed. The operator may also view the SDIS brightness level and gain access to a higher operating level through use of this screen.
Page 139: Operation
GEJ–6915 Screen Controls OPERATION Pressing soft key position 7 (Screen Controls) on the Main Operation Screen (screen 0000–0, see Figure 33, 35 or 37) or the Main Operation Screen, More Menu (Screen 0000–1, Figures 34, 36, or 38) will display screen 3000–0 (Fig- ure 68).
Page 140: Operator Password
Screen Controls GEJ–6915 Distance BNSF 7650 100 120 12 9 6 3 0 3 6 9 121518 Main Rear Flow Reverser Throttle Effort Klb Cntr. Idle MOVE Operator Password Use Number Keys To Enter Password. 3100–0 Back Accept Cancel Space E–46342A Figure 69.
Page 141 GEJ–6915 Screen Controls...
Page 142: Data Download
Data Download GEJ–6915 DATA DOWNLOAD ____________________________________________________________________________________________ INTRODUCTION The Data Download screens enable the operator to download the Event Log, Trip Monitor Log, or other information from each SDIS for use by the Maintenance facility. OPERATION CAUTION: Do not remove the hard card during a data download. Doing so may cause the SDIS to lock up, requiring a reboot of the locomotive control system computers.
Page 143 GEJ–6915 Data Download 2. Pressing key position F2 (“Up Arrow”) will scroll up through the log and destination choices. If at the top, it will wrap to the bottom. 3. Pressing key position F4 (Erase Card) will take the operator to Screen 9000–1 (Figure 71) to erase the hard card which the operator inserts in the PCMCIA slot to the right of the SDIS display screen.
Page 144: Trip Monitor
Trip Monitor GEJ–6915 TRIP MONITOR ____________________________________________________________________________________________ INTRODUCTION The Trip Monitor Screen provides the operator with a trip record of time spent in throttle, idle and dynamic braking (Figure 72). NOTE: Trip Monitor is available on the HMI display or Auxiliary display and only one Trip Monitor per locomotive can be viewed at any given time.
Page 145: Operation
GEJ–6915 Trip Monitor OPERATION Pressing soft key position F6 (Trip Monitor) on the Main Operation Screen, More Menu (Screen 0000–1, see Figure 36 or 38) will display screen 4500–0 (Figure 72). Follow Railroad Operating Procedures for this operation . The active keys and a brief description of operation are as follows: 1.
Page 146: Locomotive Monitor
GEJ–6915 Locomotive Monitor LOCOMOTIVE MONITOR ____________________________________________________________________________________________ INTRODUCTION The Locomotive Monitoring Screen provides the operator with continually updated information on several parame- ters regarding overall locomotive performance. OPERATION Pressing soft key position F7 (Loco Monitor) (Figures 34, 36, or 38), will display screen 4000–0 (Figure 73). Follow Railroad Operating Procedures for this operation .
Page 147 GEJ–6915 Locomotive Monitor Distance BNSF 7650 Locomotive Monitor Engine Mode Speed 1000 READY–NP Compressor Speed 1000 1000 Load Pot 100.0 Ready 4000–0 Exit Freeze E–46311B Figure 73. Locomotive Monitor Screen (4000–0).
Page 148 ES44DC - Tractive effort to amps converter Tractive Tractive Tractive Effort (lbs) Amps(A) Effort (lbs) Amps(A) Effort (lbs) Amps(A) 5000 55000 105000 1370 10000 60000 110000 1424 15000 65000 115000 1485 20000 70000 120000 1545 25000 75000 1051 125000 1604 30000 80000 1107...
Page 149 ES44DC - Braking effort to amps converter Select speed 5000 Move down the 10000 speed column until 15000 you get to the braking 20000 effort value displayed 25000 on the screen 30000 35000 40000 45000 Value indicated at the 50000 intersection of speed 55000 and braking effort is...
