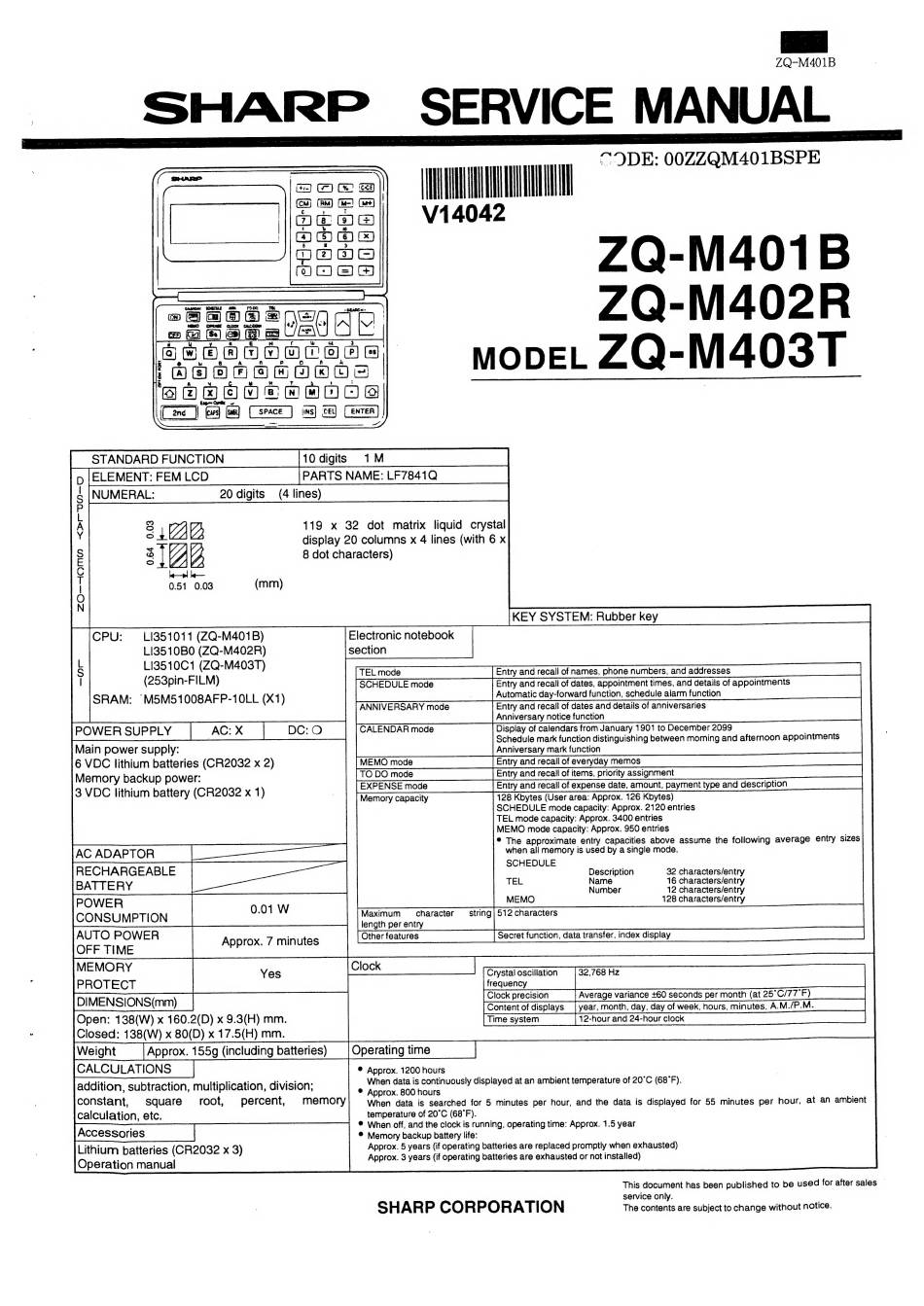

Sharp ZQ-M401B Service Manual

ZQ-M401B
V14042
ZQ-M401B
ZQ-M402R
mopvEL ZQ-M403T
E: 00ZZQM401BSPE
(Ca) (rm) Ge) a8)
Oe OS
oiofale:
Oa
idewlolee
soonoorsag
Soleo olay
HoOUSEnmwmooe
Cmiie iv
fr) Gel) (Pace) ins) Ge) Canre)
ee
et
ee
oe >
STANDARD FUNCTION 10 digits 1M
p |ELEMENT: FEM LCD PARTS NAME: LF7841Q
NUMERAL: 20 digits (4 lines)
& PAL 119 x 32 dot matrix liquid crystal
s4Z display 20 columns x 4 lines (with 6 x
+t YAY
© 1G 8 dot characters)
hep be—
0.51 0.03 (mm)
ZO-—-AOMM <yYr-UMN—
KEY SYSTEM: Rubber key
Electronic notebook
section
; Automatic day-forward function, schedule alarm function
Anniversary notice function
Display of calendars from January 1901 to December 2099
Schedule mark function distinguishing between moming and afternoon appointments
Anniversary mark function
TO DO mode Entry and recall of items, priority assignment
EXPENSE mode Entry and recall of expense date, amount, payment type and description
Memory capacity 128 Kbytes (User area: Approx. 126 Kbytes)
SCHEDULE mode capacity: Approx. 2120 entries
TEL mode capacity: Approx. 3400 entries
MEMO mode capacity: Approx. 950 entries
® The approximate
entry capacities above assume
the following average
entry sizes
when all memory is used by a single mode.
SCHEDULE
Description 32 characters/entry
TEL Name 16 characters/entry
Number 12 characters/entry
MEMO 128 characters/entry
Maximum character __ string) 512 characters
length per entry
Other features Secret function, data transfer, index display
Clock precision Average variance +60 seconds per month (at 25°C/77'F)
Content of displays | year, month, day, day of week, hours, minutes, A.M./P.M.
12-hour and 24-hour clock
LI351011 (ZQ-M401B)
LI3510B0 (ZQ-M402R)
LI3510C1 (ZQ-M403T)
(253pin-FILM)
M5M51008AFP-10LL (X1)
POWER SUPPLY
Main power supply:
6 VDC lithium batteries (CR2032 x 2)
Memory backup power:
3 VDC lithium battery (CR2032 x 1)
—Mr-
AC ADAPTOR |
RECHARGEABLE
Lee
BATTERY
POWER
CONSUMPTION cies
AUTO POWER )
MEMORY a
PROTECT
DIMENSIONS(mm)
Open: 138(W) x 160.2(D) x 9.3(H) mm.
Closed: 138(W) x 80(D) x 17.5(H) mm.
Weight —_| Approx. 155g (including batteries)
CALCULATIONS
addition, subtraction, multiplication, division;
constant, square root, percent, memory
calculation, etc.
Lithium batteries (CR2032 x 3)
Operation manual
® Approx. 1200 hours
When data is continuously displayed at an ambient temperature of 20°C (68°F).
® Approx. 800 hours
When data is searched for 5 minutes per hour, and the data is displayed for 55 minutes per hour, at an ambient
temperature of 20°C (68°F).
® When off, and the clock is running, operating time: Approx. 1.5 year
© Memory backup battery life:
Approx. 5 years (if operating batteries are replaced promptly when exhausted)
Approx. 3 years (if operating batteries are exhausted or not installed)
This document has been published to be used for after sales —
service only.
