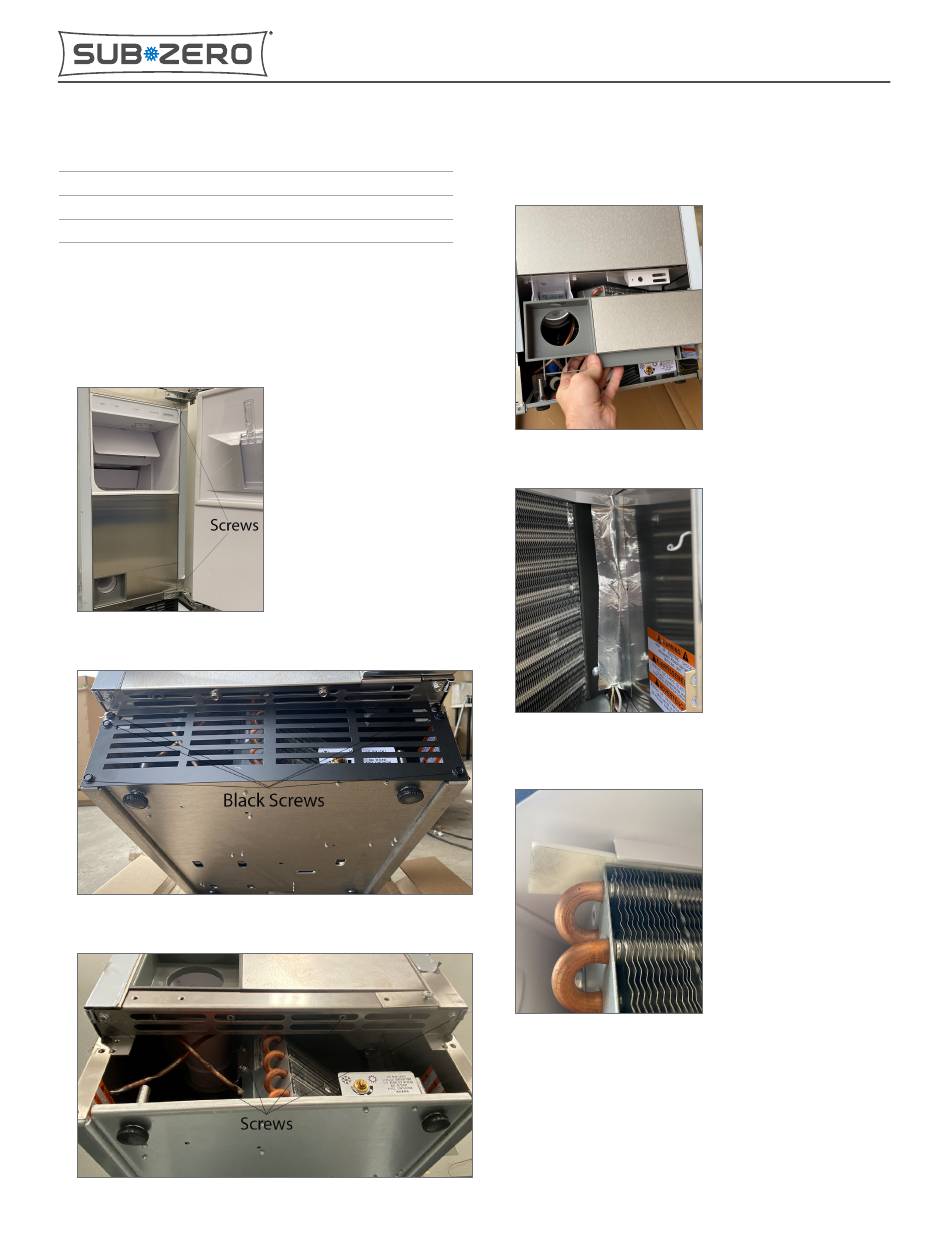

ICE MAKER ENHANCED AIRFLOW INSTALLATION

Remove the plastic hinge covers, if installed.

Remove the inner and loosen the outer screw on

each hinge, then remove the door assembly.

Remove six black screws from the kickplate area,

then remove the kickplate.

Remove four screws from the bottom of the hinge

cover and hinge bracket, then remove the bracket.

7042834 REV-A

01/2021

Ice Maker Enhanced Airflow Installation

Pull the water filter panel cover forward slightly, then

down to remove.

Place foil tape between the badger board on the

condenser and the side of the unit.

Place the white foam tape along the top of the

condenser to close the reveal between the

condenser and the bottom of the ice bin.

Note : Leave the foam tape long to help position the

tape.

Page 1 of 2

subzero.com

800.222.7820

*7042834$REVA*
