GENERAL
Sunnen P-180 Head & Driver Set is designed for
sizing and finishing holes in work too bulky or
heavy to take to your honing machine. It uses the
same mandrels and stones used in Sunnen Honing
Machines. The Adapters listed in Table 1 must be
used as they are different from the adapters used in
Sunnen Honing Machines.
ASSEMBLE UNIT
To assemble, proceed as follows:
NOTE: Automotive Division Customers please refer
to separate Assembly Instructions, I-P-190.
1. Select correct Mandrel, Sleeve, Stone, Adapter,
and Wedge and assemble to P-180.
2. Mandrels used with P-180 Head & Driver Set
are supplied with a standard Wedge for use in
Sunnen Honing Machine. To use wedges not
supplied, alter it as shown
NOTE: PBL8-W, PBL10-W, and PBL12-W Wedges
(included in P-180 Kit) have already been altered.
3. Snap altered Wedge into Feed Block as shown
(see Figure 2).
INSERT ALTERED WEDGE BY PUSHING IT
STRAIGHT IN AGAINST INCLINED SURFACE OF
FEED BLOCK WHICH COMPRESSES SPRING CLIP
AND ALLOWS WEDGE TO SNAP INTO SLOT.
TO REMOVE WEDGE, PUSH DOWN
ON END AND PULL STRAIGHT OUT.
, SUUNEN AND THE SUNNEN LOGO ARE REGISTERED TRADEMARKS OF SUNNEN PRODUCTS COMPANY.
SPECIAL INSTRUCTIONS
P-180 HEAD & DRIVER SET
(see Figure 1).

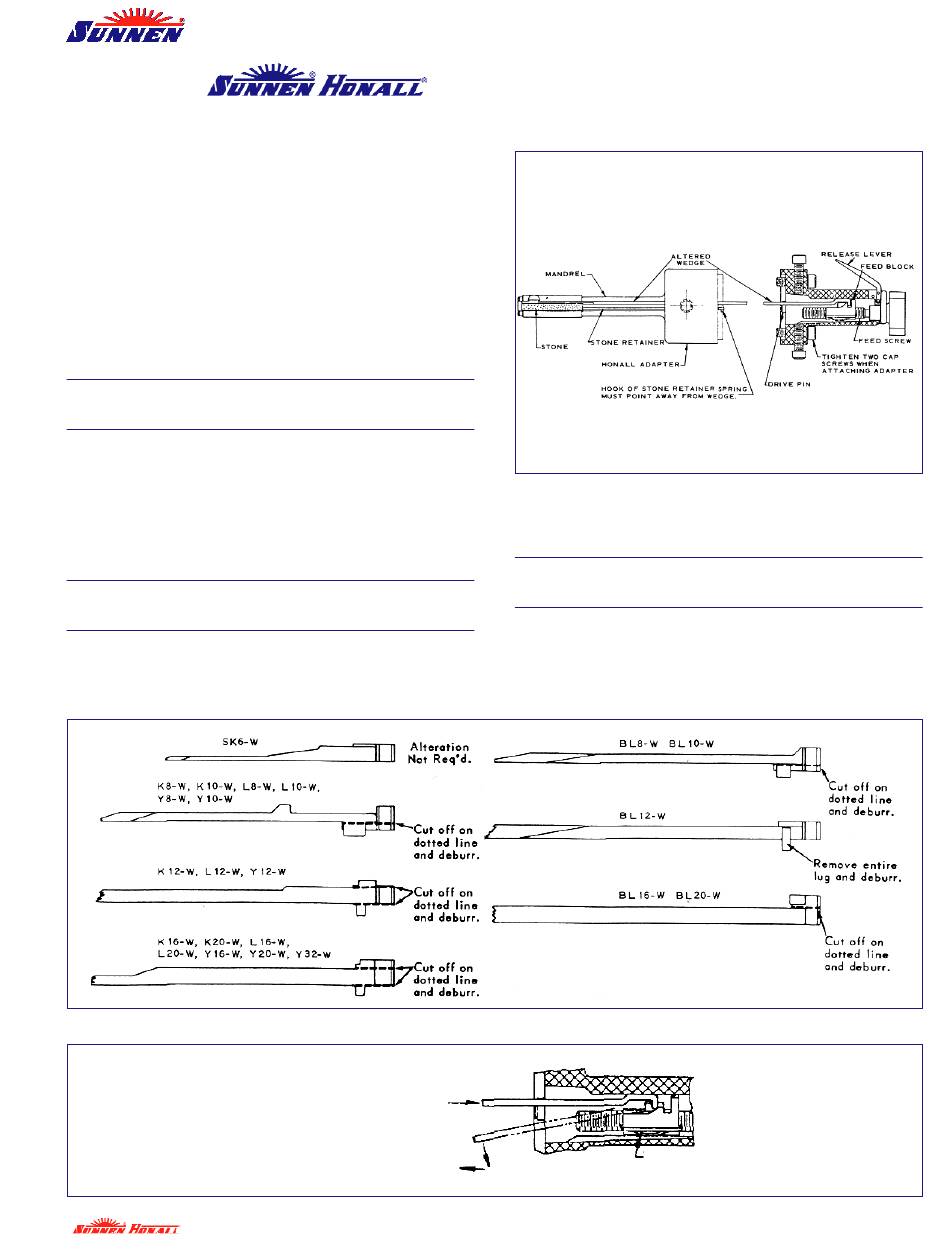

FIGURE 1, Wedges
FIGURE 2, Insert Wedge
for
FIGURE 3, Assembly
4. Attach Adapter to P-180 with 2 capscrews as
shown (see Figure
When using Y32 Mandrel, remove Stone
NOTE:
Retainer from PAK20-A Adapter.
5. Insert Mandrel into Adapter with Wedge and
Stone Retainer side by side and tighten setscrew
(refer to Figure 3).
6. Place Stone in Mandrel
SPRING CLIP
3).
(refer to Figure 3).
I-P-180G
