BleBox saunabox User Manual

saunabox
control with μWiFi technology
from any place in the World
WIRELESS SMART CONTROLLER FOR SAUNA
SAFETY RULES
Do not connect the device to loads exceeding the permitted
values.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned off,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
The installation of the device to a power mains that does not meet
the quality requirements defined by PN-EN 50160, will result in
the loss of the warranty.
ATTENTION! The device is designed to operate in an electric
network of 230V phase voltage and 400V phase-to-phase voltage.
Take special care during installation!
The controller has been designed to work only with heating
devices. The heaters must have independent thermal protection.
To ensure protection against electric shock, the protective
terminal of I class heating devices must always be connected to
the protective earth (PE) therminal in the TN-S network or to the
neutral-protective (PEN) therminal in the TN-C network. At the
instalation of electrical devices, special attention must be paid to
the protection against electric shock described in PN-HD 60364-
4-41.
Protect the power circuit with overcurrent protection.
Connection of the controller must be carried out only by persons
with the corresponding electrician license.
The controller must not be installed inside the sauna room.

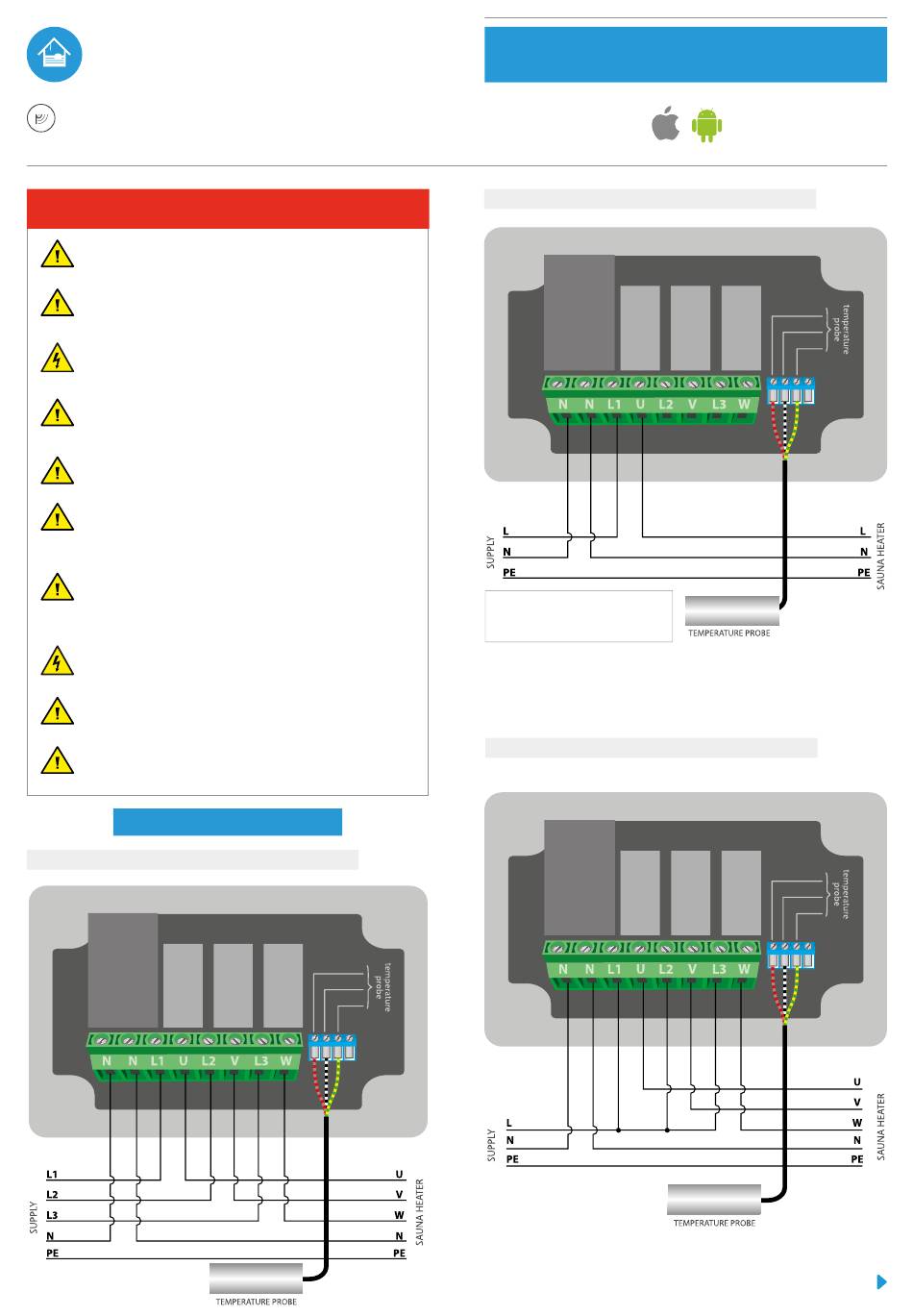

CONNECTION DIAGRAMS
General connection diagram:
Connection order (colors)
- red, black,
- brown, white,
supply
ground
signal
user manual
Single phase supply, single phase heater:
yellow
green
Single phase supply, three phase heater in a star circuit:
supply
ground
signal
supply
ground
signal
