BleBox proxiSwitch User Manual

proxiswitch
"INVISIBLE" SWITCH - ELECTRIC DEVICES TOUCHLESS CONTROL (12-24V)
SAFETY RULES
Do not connect the device to loads exceeding the permitted
values.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned off,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
The installation of the device to a power mains that does not meet
the quality requirements defi ned by EN 50081-1, EN 50082-1,
UL508, EN 60950, will result in the loss of the warranty.
1
Disconnect supply voltage circuit before installing the controller. Remember
that any mounting works should be carried out when the main voltage is
disconnected (switch off the mains fuse or disconnect the power supply from
the socket).
The controller should be installed in a place protected against adverse
environmental conditions, protected from third party access. It is
recommended that the device be mounted in a stable and fixed position.

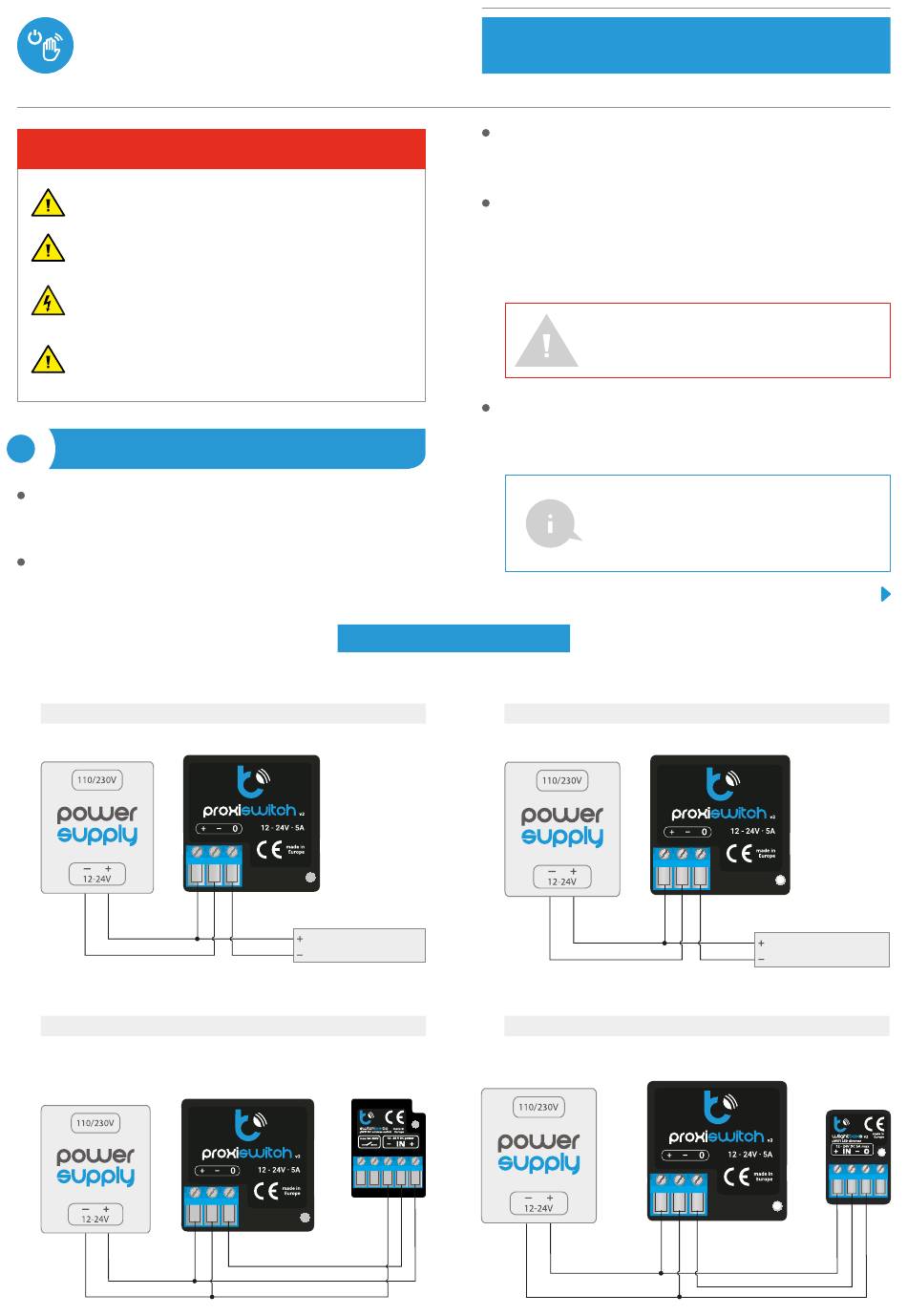

General diagram of connection to the 12-24V DC device:
Touch button - proxiSwitch + switchBoxDC:
v2
INSTALLATION - BASICS
CONNECTION DIAGRAMS
DEVICE
12-24V DC
user manual
Familiarize yourself with the diagram and then proceed with the installation
of the controller. Pay special attention to the designation of the controller
connectors. Start by connecting the power wires: (+) (red or black with a
white dotted line) and (-) (black).
Connect the LED strip (paying attention to the polarity). The device is
equipped with two stripes of double-sided adhesive tape on the bottom side.
Before sticking the controller, clean and dry the the surface where it will be
adhered. Remove the protective film, adhere in the chosen place and hold for
a few seconds. When choosing the mounting location, remember that the
device detects the hand only from the side of the adhesive tape.
The device should be adhered to a non-conductive
surface, eg furniture board, tile, etc. If the device is not
stably fixed or mounted near metal elements, it may not
work properly.
Each time the power source is connected, the device performs the auto-
calibration process within the first 15 seconds. During this time, do not place
your hand or any conductive objects near the device, as this will affect the
calibration process.
If during the normal operation the device reacts
incorrectly, force the auto-calibration process by
disconnecting and reconnecting the power supply to
the controller. Remember that after connecting the
power supply do not put your hand near the controller
for the first 15 seconds!
General scheme of connection to the LED strip 12-24V DC:
Touch button - proxiSwitch + wLightBoxS:
LED STRIP
