Summary of Contents for RTI AD-1616

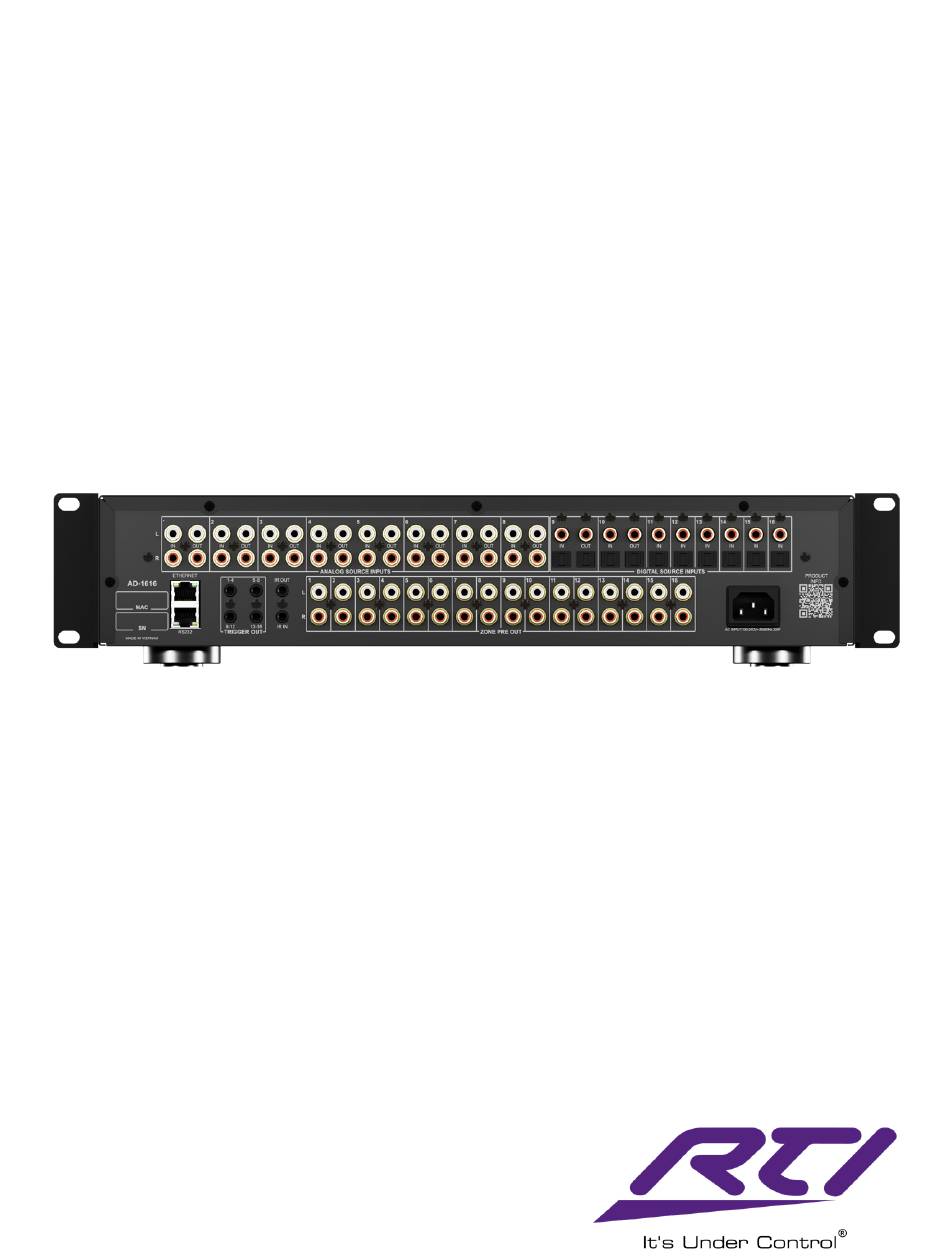

- Page 1 Installation & Operation Guide RTI DSP Matrix AD-1616 - Audio Distribution 16 x 16 DSP Matrix Version 1.0...
-
Page 2: Table Of Contents
Cleaning ................................... 39 Federal Communications Commission Notice ....................39 Industry Canada Compliance Statement ......................40 Declaration oF Conformity (DoC) .......................... 40 Contacting RTI ................................. 40 Service & Support ..............................41 Limited Warranty ..............................41 Disclaimer ................................42 Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com... -
Page 3: Introduction
AUDIO DISTRIBUTION Introduction The AD-1616 is a DSP Matrix for distribution of sixteen audio sources to sixteen zones. For projects that need more zones, up to four AD-1616 chassis can be combined to deliver 64 audio zones. The AD- 1616 enables seamless routing of both digital and analog sources to any desired zone and features a comprehensive set of DSP controls. - Page 4 20 Hz – 20 kHz +/- 2 dB @ 4Ω and 8Ω Dynamic Range >95dB A-weighted Sampling Frequency 48KHz RTI or 3rd Party Control IP (RJ45), RS-232 (RJ45) and IR (3.5mm mono) AC Input Voltage 100-120V/ 220-240V~, 50/60Hz, 20W Power Switch Front Panel On/Off with LED power indicator...
-
Page 5: Panel Description
AUDIO DISTRIBUTION Panel Description AD-1616 Front Panel ❶ ❷ ❸ No. Name Description Power Button Powers on/off the matrix Power LED Indicator Status LED Indicator AD-1616 Rear Panel ❹ ❺ ❻ ❼ ❽ ❾ No. Name Description Analog Audio Left and Right RCA mono channel pairs with loop-outs for external audio use /... - Page 6 TCP/IP and Ethernet connects to a TCP/IP local area network for WEB GUI access and 3rd RS-232 Control party control. For serial control, connect this port directly to an RTI processor Interfaces via a standard CAT-5e or better patch cable.
-
Page 7: Installation
AUDIO DISTRIBUTION Installation Rack Installation The AD-1616 matrix is shipped with rack-mounting accessories. This matrix will consume 2RU or rack-mounting space. By default, the matrix is shipped with attached footpads for installation in a cabinet or on a shelf. These feet are not required to be removed for rack installation when keeping a 1RU space below the unit for proper ventilation. -
Page 8: Connections
Ethernet Control The AD-1616 can be controlled via TCP/IP using built-in API commands. Please see the API appendix for a list of commands that are applicable to these products. 1. Connect the RJ-45 connector (male) from one side of a CAT-5e or better patch cable to the RJ-45 (female) connector port labeled “Ethernet”... -
Page 9: Serial Control
Cable Serial Control The AD-1616 matrix uses a proprietary RJ-45 port and wiring schema that is intended to be directly connected/used with an appropriate companion port on an RTI processor. If using a 3rd party serial device for control, please use the pin-out below for constructing a compatible cable for use in the desired application to control this matrix using RS-232 serial communication. - Page 10 2. Connect the male stereo connector (tip, ring , and sleeve) on the opposite end of the 3.5mm mono/stereo mini-jack cable to the IR out port on a compatible RTI processor or other compatible 3rd party IR device. Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com...
-
Page 11: Source Audio Inputs
AUDIO DISTRIBUTION Source Audio Inputs The AD-1616 matrix can accept both analog and digital audio sources for matrixing to analog audio pre- outs. The analog inputs have been designed for use with line-level audio sources. Digital inputs accept mono or stereo LPCM signals with a resolution up to 24-bit 192kHz. -
Page 12: Digital Audio Inputs
Stereo Mode The AD-1616 features 16 stereo pairs of analog audio outputs. By default, each matrix is set to stereo operation mode whereby channels are separated into left and right designations. 1. Connect either one (mono) or both (stereo) RCA male connectors from one end of an RCA mono/ stereo cable to the RCA output connectors (1-16) on the matrix. -
Page 13: Web Interface
AUDIO DISTRIBUTION Web Interface The Web based GUI (graphical user interface) designed for the AD-1616 matrix allows for all administrative and configuration options for successful deployment and operation. It can be accessed through a modern browser, e.g. Chrome, Safari, Firefox, etc. -
Page 14: Login
Enter the username to access the WEB GUI. The default username is “admin”. Password Enter the password to access the WEB GUI. The default password is “RTI123”. Use this link to access the RTI website. This appears on every page of the WEB Link GUI. -
Page 15: Dashboard
AUDIO DISTRIBUTION Dashboard Option Description Displays all zones along with their assignable names and numeric volume levels Zones (0-100). The volume can be adjusted using the sliding bar. The System Info section displays the following: • Temperature: The color-coded radial gauge displays the current internal temperature and indicates via color whether the matrix is operating within acceptable (green) or unacceptable (red) limits. -
Page 16: Sources (Basic)
1. Each matrix has a limited number of digital inputs that can be assigned. These digital connections are available for inputs 9-16 on the AD-1616. For these source inputs, users can choose between the following options: Source Type •... -
Page 17: Sources Advanced
Sources Please note that Trim and Auto-Ducking are available for all sources, while Noise Gate and Auto-Gain are only available for source 1 on AD-1616. The source name can be modified to help identify or define a source. The name Source Name entered here will be visible in various location in the GUI where sources are referenced. - Page 18 AUDIO DISTRIBUTION Option Description The audio level of each incoming source can be trimmed down and adjusted to reduce the input level of overdriven sources, or for personal tastes. Input a value Trim Level between 0 and 100. Optionally, the keyboard up and down arrow keys can be used to increment and decrement each value by 1.
- Page 19 AUDIO DISTRIBUTION Option Description Applies a ducking circuit that will temporarily reduce the audio level of the primary audio source, allowing the assigned secondary source audio to take focus. This is a feature that is useful for when an audio source only requires a momentary interruption, such as PA announcements or a doorbell chime.
-
Page 20: Zones (Basic)
AUDIO DISTRIBUTION Zones (Basic) Option Description Zones Each zone is displayed with user definable options. The zone name can be modified to help identify or define a zone. The name Zone Name entered here will be visible in various locations of the GUI where zones are referenced. - Page 21 AUDIO DISTRIBUTION Option Description Set the max allowable volume level (relative) of a zone that can be achieved via all interfaces and APIs. Volume levels that are attempted to be set higher than Max Volume this value will defer to the maximum level set here and an error will be shown in the GUI.
-
Page 22: Zones (Advanced)
AUDIO DISTRIBUTION Zones (Advanced) Option Description Zones Each zone is displayed with user definable options. The zone name can be modified to help identify or define a zone. The name Zone Name entered here will be visible in various locations of the GUI where zones are referenced. - Page 23 Selects the secondary audio source from the available sources and doorbell chimes in a drop-down list. Available options are: • Sources: 1 through 8 on the AD-1616. • Doorbell 1: A generic audio chime sound that can be activated using an external trigger via the API or control interfaces.
- Page 24 AUDIO DISTRIBUTION Option Description This option applies a custom DSP preset that is created and set in the EQ Settings section of this GUI. The multi-band equalizer can be used for a number of purposes, DSP Preset from adjusting the sound quality to account for an output’s response, to setting personal preferences for listening to audio in a particular style, or to set high/low-pass filters for creating bi-amping or subwoofer setups.
- Page 25 AUDIO DISTRIBUTION Option Description • Max Volume: Set the max allowable volume level (relative) of a zone that can be achieved via all interfaces and APIs. Volume levels that are attempted to be set higher than this value will defer to the maximum level set here. Volume •...
-
Page 26: Grouping
AUDIO DISTRIBUTION Grouping Option Description Grouping is a feature that will essentially tie the source routing and audio volume of multiple zones together. When a group is active, zones that are part of the active group will not be able to individually select their source. Each included zone in a group will be able to adjust their volume level depending on the group’s Zone Volume Adjustments setting. - Page 27 AUDIO DISTRIBUTION Option Description zone is set to a group level and then adjusted in tandem from a single volume control interface for easy sitewide control. Group Presets • Please note that only 1 group can be active at any given time. Activating a group that is currently not active will immediately override any current group and settings that are active.
- Page 28 AUDIO DISTRIBUTION Option Description • Select Zones: Click on each checkmark box to include it in the group. Zones that are included in the group will be switched to the selected source and volume properties set in this section when the group becomes active. Do Not Disturb can be enabled ad hoc as necessary even if the desired zone is part of an active group and will allow temporary omission from the group’s source and volume setting changes.
- Page 29 AUDIO DISTRIBUTION Option Description Relative: This method of unified volume control allows each zone to be set to individual volume levels that will retain their differential values when the group’s volume is adjusted. For example, if zone 1 is set to a level of 50, and zone 2 is set to a level of 40, when the group’s volume is increased by a value of 10, zone 1 will now be at volume level 60 and zone 2 will be at volume level of 50, thus each zone will retain their relative volume in reference to one...
-
Page 30: Eq Setting
Description The EQ Setting tab is where DSP (Digital Signal Processing) presets can be generated and managed. The AD-1616 contains a 5-band parametric equalizer with additional tone and crossover controls that can be used to tune the output audio to achieve a particular sound profile or meet a specific function or EQ Setting application. - Page 31 Options are: • Import/Export DSP Preset: Use these options to import and export individual or all DSP presets for back-up or replicating settings on other RTI AD series of products. Import (All): Use the Import button under the Import/Export All Presets header to open a dialog box to select a DSP settings file that contains presets that will overwrite ALL DSP presets stored in this product.
- Page 32 Import/Export Single Presets header to open a dialog box to save a DSP settings file that contains the selected preset. This file can be used as a backup or saved for use with other RTI AD series products. •...
- Page 33 AUDIO DISTRIBUTION Option Description automatically saved upon entry, so no saving action needs to be initiated by the user. Reset Settings: Use the Reset button to revert the equalization curve to a flat response, thereby deleting any setting adjustments that are associated with the currently selected DSP preset.
- Page 34 AUDIO DISTRIBUTION Option Description Crossover: Crossover control is implemented as low/high pass filters that will split the frequency bands, cutting off frequencies above or below their set points. Options are: - Low Pass: Setting the low pass filter will decrease all frequencies above a set point and includes a per-octave roll-off filter.
-
Page 35: Configure
AUDIO DISTRIBUTION Configure Option Description The Configure page is used to manage important operational functions of the Configure matrix. Settings such as the global device name, IP configuration, firmware management, and reboot functions are found here. The device name can be modified to help identify this product. The name Device Name entered here will be visible in various locations of the GUI where the device name is referenced. - Page 36 AUDIO DISTRIBUTION Option Description The feature manages access to the front panel power button that can be used to allow/disallow the use of this button to control the on and off, or standby, states of the matrix. Power Button • Enabled: Allows access to the front panel power button.
- Page 37 AUDIO DISTRIBUTION GUI Elements Description / Options • Reset Users: Use this button to reset all saved users and their access levels and revert to the factory default admin account only. • Reset Network: Use this button to factory reset the network settings. The Reboot/Reset default for the network uses the DHCP addressing method.
-
Page 38: Safety Suggestions
AUDIO DISTRIBUTION Safety Suggestions Read and Follow Instructions Read all safety and operating instructions before operating the unit. Retain Instructions Keep the safety and operating instructions for future reference. Heed Warnings Adhere to all warnings on the unit and in the operating instructions. Accessories Only use attachments/accessories specified by the manufacturer. -
Page 39: Cleaning
AUDIO DISTRIBUTION Damage Requiring Service The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. • Objects have fallen or liquid has been spilled into the unit. • The unit has been exposed to rain. •... -
Page 40: Industry Canada Compliance Statement
2. Cet appareil doit accepter toute interférence reçue y compris des interférences qui peuvent provoquer un fonctionnement indésirable. Declaration oF Conformity (DoC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticontrol.com/declaration-of-conformity Contacting RTI For news about the latest updates, new product information, and new accessories, please visit our web site at: www.rticontrol.com... -
Page 41: Service & Support
Warranty claims may be initiated by an authorized RTI dealer using the original dated sales receipt or other proof of warranty coverage. In the absence of the receipt of purchase from the original dealer, RTI will provide warranty coverage extension of six (6) months from the date code of the product. Note: RTI warranty is limited to the provisions set forth in this policy and does not preclude any other warranties offered by third parties who are solely responsible for those other warranties. -
Page 42: Disclaimer
Loss of, or damage to, data, computer systems or computer programs. RTI’s liability for any defective product is limited to repair or replacement of the product, at the sole discretion of RTI. In cases where the warranty policy conflicts with local laws, the local laws will be adopted. - Page 43 Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 www.rticontrol.com © 2024 Remote Technologies Inc. All rights reserved.
