olympia electronics RT-14 Quick Start Manual

ELECTRIC INSECTICIDES
TECHNICAL CHARACTERISTICS
RT-14
DESCRIPTION
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
170VA
FLUORESCENT LAMP
3x18W BL
GRID VOLTAGE
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIALS
EXTERNAL DIMENSIONS
8.1kgr.
TYPICAL WEIGHT
GUARANTEE
Thank you for your trust in our products
Olympia Electronics - European manufacturer
IN GENERAL
The electric insecticides are used to exterminate
various annoying insects. The built-in lamps
(Black Light) produce a light that attracts insects
from a distance. They can be used in every area
that many insects exist. They are attracted and
pass though the interior metal net, they are
exterminated by high voltage.
There is an exterior net for protecting birds,
animals or human beings that are closed
e n o u g h . W i t h o u t u s i n g a n y c h e m i c a l
material it offers a complete protection
against many like insects mosquitos, flies,
tiny gnats etc.
There is a special drawer at the bottom
side of the device where all dead insects
are collected. To remove the drawer we
have to unscrew the retaining screw.
WARNING!!!
B e f o r e r e m o v i n g t h e d r a w e r f o l l o w
carefully the below steps.
a. Remove the plug of the mains.
b. Unscrew the retaining screw of the
drawer.
c. Remove the special drawer, clean the
drawer and re- install it. Then screw
again the retaining screw and reconnect
the device on the mains.
In case of changing the lamps or the
starter, follow carefully the below steps.
a. Remove the plug of the mains.
b.Unfasten the retaining screws and
Page 1 from 2
RT-14/2 RT-14/6
Electric insecticide Electric insecticide with mirror
220-240V AC/50-60Hz
80VA
2x18W BL
3,5kV
IP20
EN 60335-1, EN 60335-2-59
o
0 to 60 C
Up to 95%
Bayblend FR3010, electrostatic painted aluminum
640 x 140 x 480 mm (L x W x H)
7.4kgr. 7.7kgr.
2 years (1 year for the lamps)
remove the protective exterior net.
c. Replace the tube or the starter which is
worn.
d. Reinstall the protective exterior net and
fasten the removed screws.
e. Finish reconnecting the device on the
mains and it is ready to operate.
AT T E N T I O N ! ! ! W h e n t h e d e v i c e i s
operating the protective exterior net
must be installed.
Installation
In order for the insecticide to operate simply insert
the power plug into any suitable wall outlet that is
readily accessible. It is placed in a clear
visible place so as to attract insects easily.
It includes two eyelets on the top side for
ceiling-mounting installation by using a
c h a i n . M o d e l s R T- 1 4 a n d R T- 1 4 / 2 a r e
suitable for areas such as grocery stores,
b u t c h e r s , g r e e n g r o c e r s , p a t i s s e r i e s ,
residential areas, etc.
Models RT-14/6 and RT-14/7 are specially
fitted with a mirror on the back for wall
mounting. Their connection is no different
than previous while their mounting is as
follows:
First you need to remove the screws 1A and
1B (Figure 1) from the side caps of the
insecticide on the rear side,on the mirror
side. Then on these sites will tighten the
screws with the plastic bracket. Then place
the insecticide into the wall at the height you
925014000_09_001
prefer and support it with the two screws on
the plugs you have already installed to the
wall. Finally simply place the two plastic
studs, the holes of the points 2A and 2B
(Figure 1), by supporting it with the mounting
screws to the wall.
RT-14/7
170VA
Description
3x18W BL
1. Hole (for wall-mounted installation).
2. Hole (for wall-mounted installation).
3. Special drawer.
4. Installation point (for normal installation with chain).
5. Fuse holder.
6. Plug.
8.5kgr.
7. Protection grid.
and
WARRANTY
Olympia Electronics guarantees the quality, condition and operation of the goods. The period of
warranty is specified in the official catalogue of Olympia Electronics and also in the technical leaflet,
which accompanies each product. This warranty ceases to exist if the buyer does not follow the
technical instructions included in official documents given by Olympia Electronics or if the buyer
modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia
Electronics has fully agreed to them in writing. Products that have been damaged can be returned to
the premises of our company for repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge
the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or
not the buyer the transportation cost.
HEAD OFFICE
72 km. O.N.R. Thessaloniki-Katerini
nd
P.C. 60300 P.O. Box 06 Eginio Pierias Greece
www.olympia-electronics.com
info@olympia-electronics.gr
Page 2 from 2
4
1A
3
2A
7
WARNING!!!
- The device is suitable for indoor use.
- The device must be kept away from children.
- The device must be not installed in areas with
combustible gases or explosive dust.
- When the mains cable is damaged, this must be
replaced by our SERVICE department or by an
authorized technician.

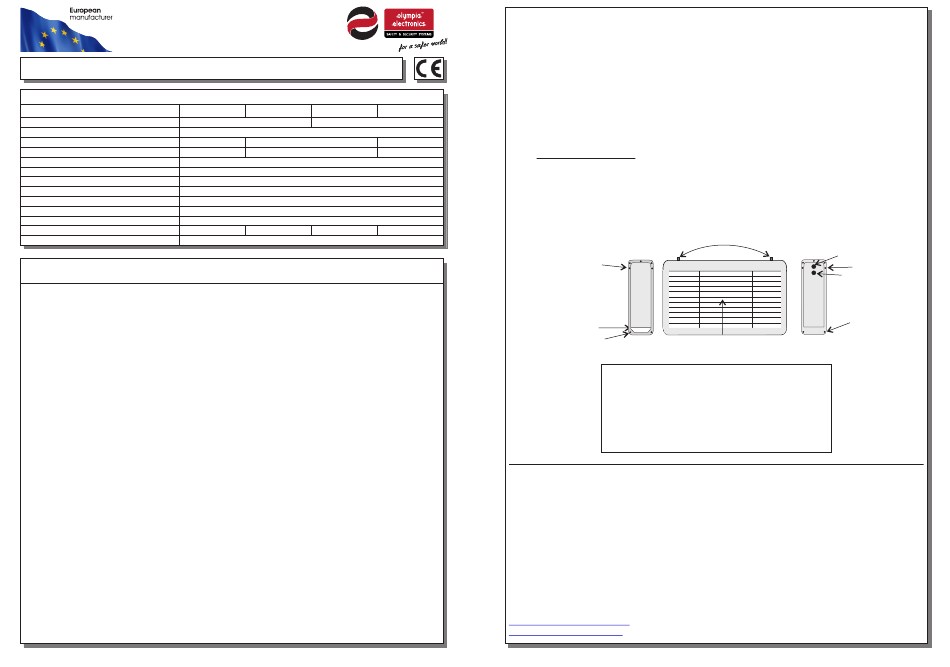

Figure 1
5
1B
6
2B
925014000_09_001
