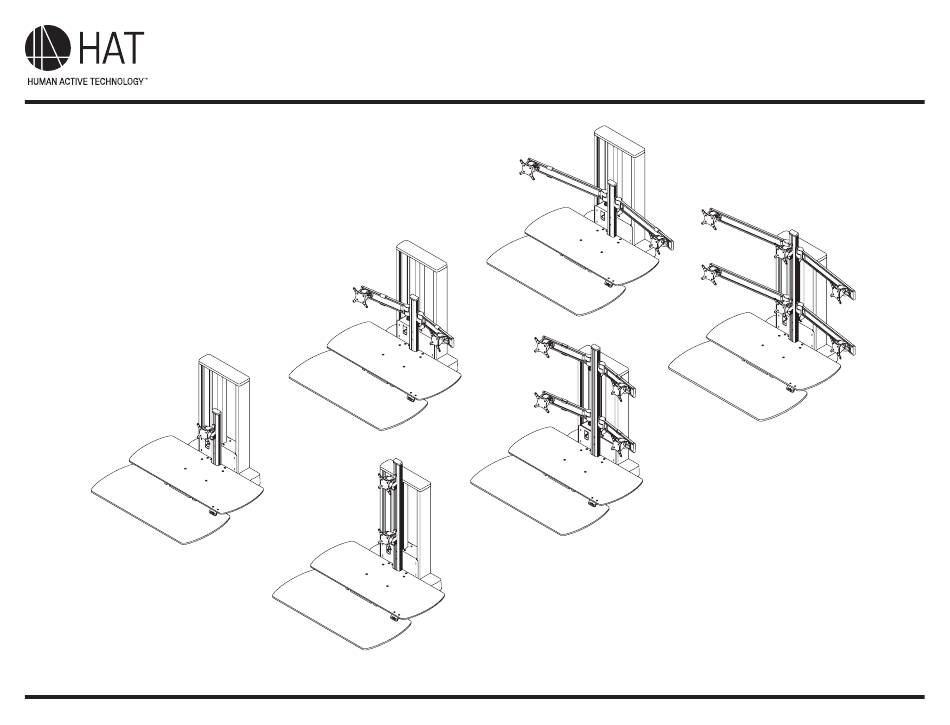

- Page 1 1TCH-XXX Installation Instructions 1TCH-3 1TCH-3/3 1TCH-2 1TCH-2/2 1TCH-1 1TCH-1/1 Human Active Technology 800 524 2744 customerservice@team-hat.com team-hat.com PAGE 1 OF 24 © 2023 Human Active Technology, LLC P515495 REV B...
-
Page 2: Parts List
PARTS LIST 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 Clamp Mount 414717 Left Cap 114696L Right Cap 114696R Cap Door 115060 Single Tier Column 115160-16 — — — PAGE 2 OF 24... - Page 3 PARTS LIST CONTINUED 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 Dual Tier Column 115160-33 — — — M6-1.0 x 28mm SHCS 715498 Upper Work Surface 415091 M6-1.0 x 20mm FHSCS 715369 Lower Work Surface 114679 PAGE 3 OF 24...
- Page 4 PARTS LIST CONTINUED 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 K Lower Work Surface Mount 414763 M6-1.0 x 70mm BHSCS 715368 M6-1.0 x 40mm BHSCS 715367 M6-1.0 x 14mm BHSCS 715366 10-32 x 3/8" PhFHS 701164 PAGE 4 OF 24...
- Page 5 PARTS LIST CONTINUED 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 75/100mm VESA Adapter 105587 Standard Monitor Tilter 405397 M4 x 12mm PhPHS 702096 Column Mount 412552 Dog Washer 111230 PAGE 5 OF 24...
- Page 6 PARTS LIST CONTINUED 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 10-32 x 1/2” FHSCS 711240 Dual Wings 412770-12.5-L 412770-12.5-R — — — — Triple Wings 312270-22-L 312270-22-R — — — — Wing Cable Clip 112082 — — Column Cap 113496 PAGE 6 OF 24...
- Page 7 PARTS LIST CONTINUED 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 3/32" Allen Wrench 700146 1/8" Allen Wrench 701312 5mm Allen Wrench 710838 7/32" Allen Wrench 701127 4mm Allen Wrench 715426 PAGE 7 OF 24...
- Page 8 PARTS LIST CONTINUED 1TCH-1 1TCH-2 1TCH-3 1TCH-1/1 1TCH-2/2 1TCH-3/3 1/4 -20 x 1" Knob 712779 1/4-20 Square Nut 712785 * Thru mount hardware not included. PAGE 8 OF 24...
- Page 9 PAGE 9 OF 24...
- Page 10 CLAMP MOUNT CONFIGURATION* The clamp mount can be reconfigured to three different settings to accommodate a variety of desk thicknesses. * Thru mount hardware not included. PAGE 10 OF 24...
- Page 11 B or C * Thru mount hardware not included. PAGE 11 OF 25...
- Page 12 RAIL MOUNT CONFIGURATION* B or C * Thru mount hardware not included. PAGE 12 OF 25...
- Page 13 Adjust leveling legs to ensure mast is vertical and stable on desk. PAGE 13 OF 24...
- Page 14 E or F Single Tier Column Dual Tier Column PAGE 14 OF 24...
- Page 15 Route the Gyro Sensor Cable along the Left Side of the Column. PAGE 15 OF 24...
- Page 16 Plug in power cable to electrical outlet. Test operation by pressing the up and down buttons. Leave unit in a raised or lowered position to make installation easier as needed. PAGE 16 OF 25...
- Page 17 Loosen screws only, do not remove. PAGE 17 OF 25...
- Page 18 Press the down button to fully lower the work surface. Adjust lower work surface to align with edge of desk. Start threading screws only, do not tighten. PAGE 18 OF 25...
- Page 19 With lower work surface in desired position, fully tighten the (4) screws as shown. PAGE 19 OF 24...
- Page 20 PAGE 20 OF 25...
- Page 21 ARE YOU INSTALLING A 1TCH-1, 1TCH-3, 1TCH-1/1, 1TCH-3/3? IF NOT, PLEASE CONTINUE TO STEP 19. 7/32" 7/32" Tension can be tightened or loosened as shown. 1/8" PAGE 21 OF 24...
- Page 22 ARE YOU INSTALLING A 1TCH-2, 1TCH-3, 1TCH-2/2, 1TCH-3/3? IF NOT, PLEASE CONTINUE TO STEP 22. Dual Wing 7/32" 7/32" Tension can be tightened or loosened as shown. Triple Wing PAGE 22 OF 24...
- Page 23 PAGE 23 OF 24...
- Page 24 Use a zip tie to secure cables to tab. PAGE 24 OF 24...
- Page 25 Verify cables travel as expected for full range of height adjustment. PAGE 25 OF 25...
