HAT SX2 Quick Start Manual

1.69in
43mm
ENSURE MOUNTS ARE LEVEL
LEFT TO RIGHT
8.66in
220mm
8.66in
1
220mm

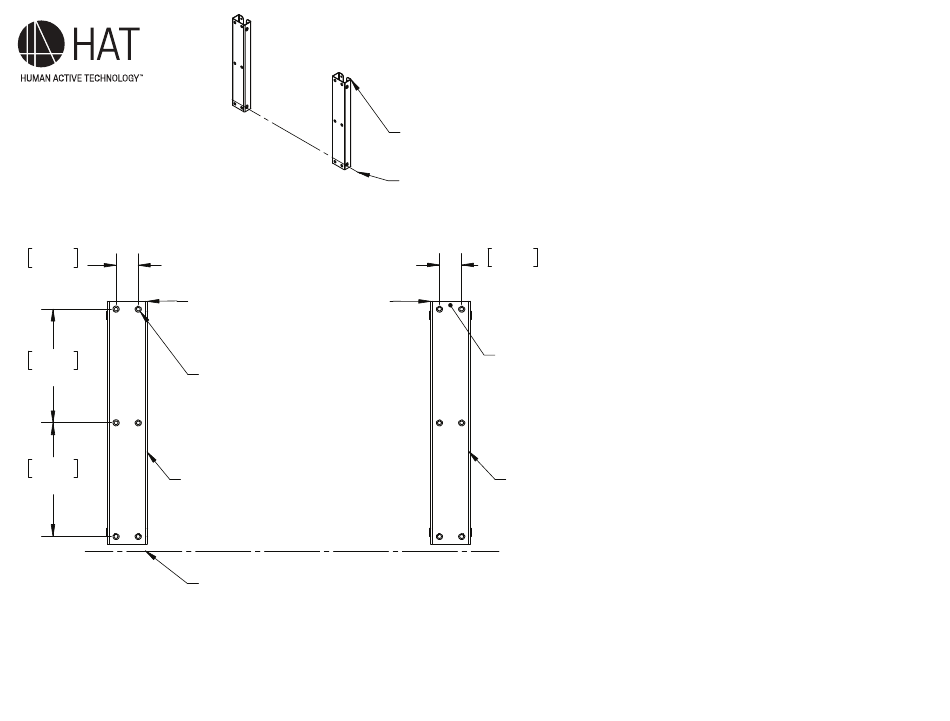

FRONT ELEVATION VIEW - WALL PREPARATION - Fig.1
Human Active Technology
800 524 2744
customerservice@team-hat.com
team-hat.com
(12)x MOUNT HOLES
FLOOR LEVEL
Back edge of Rear wall
mount bracket (1)
FLOOR LEVEL
1.69in
43mm
RED CIRCLE
1
SX2 Wall Mount

Components Required:

1. Rear - Wall mount bracket x2
2. Front Shroud - Wall mount bracket x2
3. SX Leg x2
4. Top-beam Long x2
5. Top-beam Short x2
6. 28.3" Rear Crossbar x1
7. Control box x1
8. Control switch x1
9. 120v Power Cord x1
10. Network Cable x2
11. Hardware Bag x1

Assembly Steps:

1. Before installing your new SX2 wall mount unit,
determine the wall type and locations of wood or metal
studs, wall cavities, and wall reinforcements. Only install
into a reinforced section of wall that can support 600 lbs.
of load.
2. Using the rear wall mount bracket(1) and a level, mark
the six mount positions for each bracket in the wall;
twelve wall mount positions per complete assembly.
Ensure each mount is completely level before marking.
There should be a 1/2" gap between the floor and
bottom of the rear wall mount bracket (1)(Fig 1).
NOTE: Make sure that the red circle is positioned at the
top of the wall mount bracket(1) when aligning(Fig.1).
3. After marking the mount holes for the first rear wall
mount bracket(1), use a laser level and a tape measure
to mark the mount holes for the second mount bracket
(1). Ensure the mount holes are completely level up and
down, left to right before drilling pilot holes(Fig.1)
Warning: If the fully installed mounts are not properly
aligned it will cause binding and immediate failure of
this electrically height adjustable mechanism.
© 2022 Human Active Technology, LLC
Page: 1 of 5
P516159 REV B
